Cable Connections (Oracle Switch ES2-72)

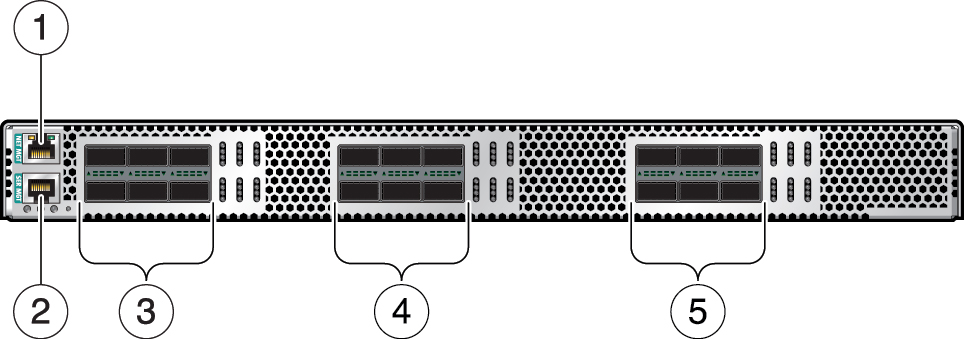

image:Figure shows the cable sockets on the Oracle Switch ES2-72.
No.
Description
Links
1
NET MGT port
NET MGT Port
2
SER MGT port
SER MGT Port
3
QSFP+ ports 1 to 24
QSFP+ Data Cable Overview
3
QSFP+ ports 25 to 48
QSFP+ Data Cable Overview
3
QSFP+ ports 49 to 72
QSFP+ Data Cable Overview
