Remove Fabric Interconnect F1-15 Fan Modules

Fabric Interconnect F1-15 fan modules are located on the front of the chassis.

To remove and install a Fabric Interconnect F1-15 fan module, follow this procedure:

1. Use a Phillips screwdriver to release the two spring-loaded securing screws located at the right edge of each fan module. See Releasing the Fabric Interconnect F1-15 Fan's Securing Screws.

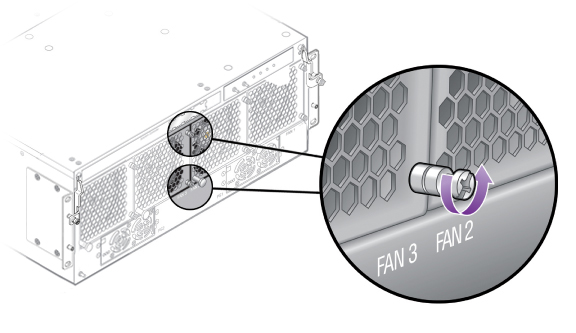

   Figure 61  Releasing the Fabric Interconnect F1-15 Fan's Securing Screws



2. Grasp the handle and slide the fan module out of the chassis. See Removing a Fabric Interconnect F1-15 Fan Module.

   Figure 62  Removing a Fabric Interconnect F1-15 Fan Module




   Installation is the reverse of this procedure.
