Task History

The task history maintains an audit trail of the actions performed by the participants in the workflow and a snapshot of the task payload and attachments at various points in the workflow. The short history for a task lists all versions created by the following tasks:

  • Initiate task

  • Re-initiate task

  • Update outcome of task

  • Completion of task

  • Error of task

  • Expiration of task

  • Withdrawal of task

  • Alerting of task to the error assignee

You can include the following actions in the short history list by modifying the shortHistoryActions element.

  • Acquire

  • Ad hoc route

  • Auto release of task

  • Delegate

  • Escalate

  • Information request on task

  • Information submit for task

  • Override routing slip

  • Update outcome and route

  • Push back

  • Reassign

  • Release

  • Renew

  • Resume

  • Skip current assignment

  • Suspend

  • Update

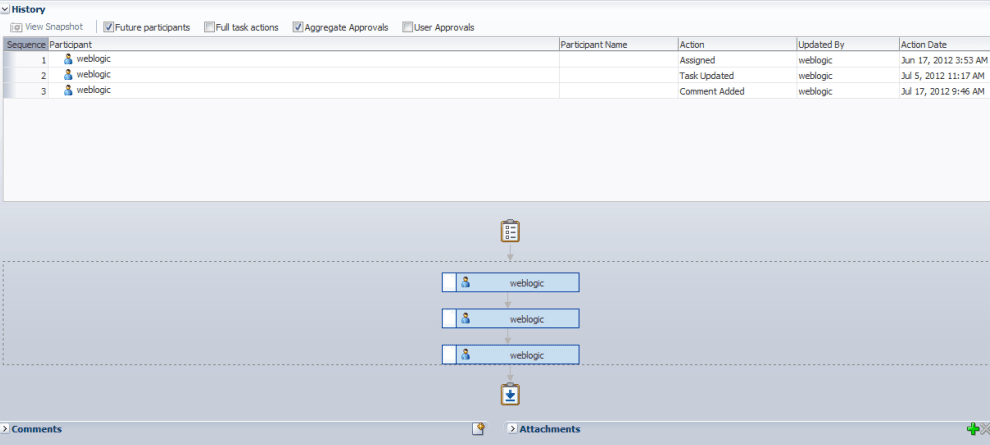

The history provides a graphical view of a task flow, as shown in Figure 32-20.

Figure 32-20 History: Graphical View

Description of Figure 32-20 follows
Description of "Figure 32-20 History: Graphical View"

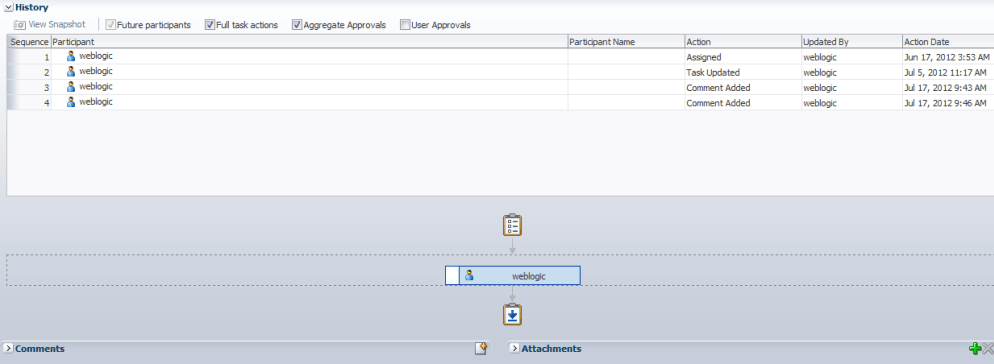

Check Full task actions to see all actions performed, including those that do not make changes to the task, such as adding comments, as shown in Figure 32-21.

Figure 32-21 History: Full Task Actions

Description of Figure 32-21 follows
Description of "Figure 32-21 History: Full Task Actions"

Available ways to view the task history include:

  • Take a task snapshot

  • See future approvers

  • See complete task actions

  • Aggregate tasks

Note:

The history of a parent task also displays the history of any subtasks it contains.
