Defining the Foreign JNDI Provider on a non-SOA Oracle WebLogic Server

Use Oracle WebLogic Server Administration Console to complete this portion of the task.

To define the foreign JNDI provider:

  1. In the Domain Structure area, expand Services and click Foreign JNDI Providers.
  2. Click New.
  3. In the Name field, enter ForeignJNDIProvider-SOA, as shown in Figure 30-43, and click Next.

    Figure 30-43 Creating a Foreign JNDI Provider

    Description of Figure 30-43 follows
    Description of "Figure 30-43 Creating a Foreign JNDI Provider"
  4. Click the ForeignJNDIProvider-SOA link.
  5. Do the following and click Save.
    • For Initial Context Factory, enter weblogic.jndi.WLInitialContextFactory.

    • For Provider URL, enter t3://soa_hostname:soa_portnumber/soa-infra.

      In a clustered environment, for Provider URL, enter http://soa_hostname:soa_portnumber/soa-infra.

    • For User, enter weblogic.

    • For Password, enter weblogic.

    Figure 30-44 shows the page where you enter this information.

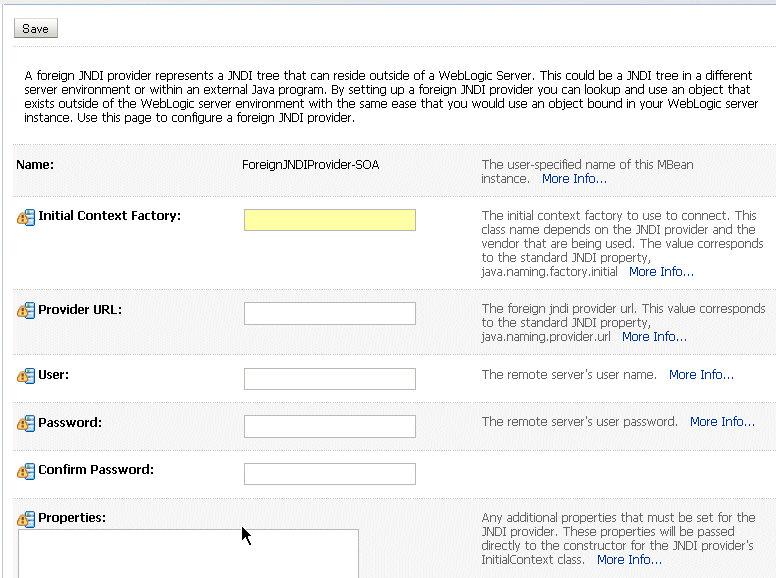

    Figure 30-44 Defining the Foreign JNDI Provider

    Description of Figure 30-44 follows
    Description of "Figure 30-44 Defining the Foreign JNDI Provider"
