Defining the Foreign JNDI Provider Links on a non-SOA Oracle WebLogic Server

Use Oracle WebLogic Server Administration Console to complete this portion of the task.

To define the foreign JNDI provider links:

  1. In the Domain Structure area, expand Services and click Foreign JNDI Providers.
  2. Click the ForeignJNDIProvider-SOA link.
  3. Click the Links tab.
  4. Click New.

    Figure 30-45 shows the Links tab.

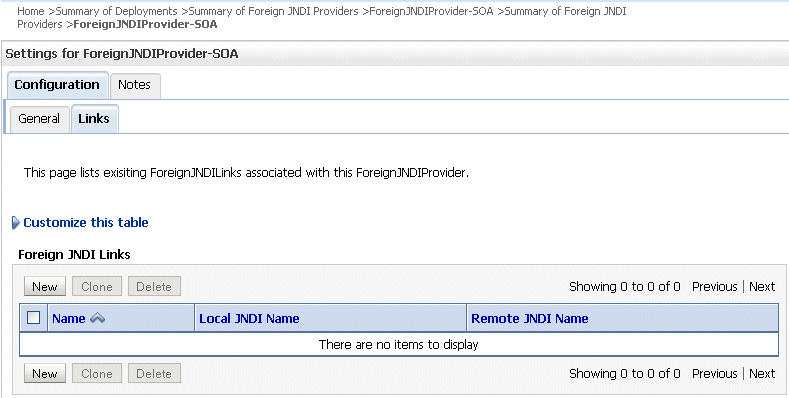

    Figure 30-45 Defining the Foreign JNDI Provider Links: The Links Tab

    Description of Figure 30-45 follows
    Description of "Figure 30-45 Defining the Foreign JNDI Provider Links: The Links Tab"
  5. Do the following and click OK.

    • For Name, enter RuntimeConfigService.

    • For Local JNDI Name, enter RuntimeConfigService.

    • For Remote JNDI Name, enter RuntimeConfigService.

    Figure 30-46 shows where you do this.

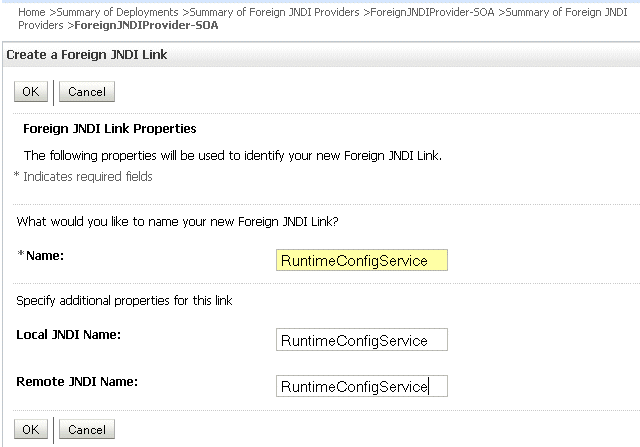

    Figure 30-46 Defining the Foreign JNDI Provider Links: Link Properties

    Description of Figure 30-46 follows
    Description of "Figure 30-46 Defining the Foreign JNDI Provider Links: Link Properties"
  6. Do the following and click OK.

    • For Name, Local JNDI Name, Remote JNDI Name, enter ejb/bpel/services/workflow/TaskServiceBean.

    • For Name, Local JNDI Name, Remote JNDI Name, enter ejb/bpel/services/workflow/TaskMetadataServiceBean.

    • For Name, Local JNDI Name, Remote JNDI Name, enter TaskReportServiceBean.

    • For Name, Local JNDI Name, Remote JNDI Name, enter TaskEvidenceServiceBean.

    • For Name, Local JNDI Name, Remote JNDI Name, enter TaskQueryService.

    • For Name, Local JNDI Name, Remote JNDI Name, enter UserMetadataService.

See Including a Grant for bpm-services.jar, to continue.
