Creating Advanced Routing Rules

To create advanced routing rules:

  1. In the Assignment section, click Dynamic Routing Rules.

    The Use Advanced Rules edit box displays.

  2. Click Create Rules.

    This starts the Oracle Business Rules Designer with a pre-seeded repository containing all necessary fact definitions, as shown in Figure 29-44. A decision service component is created for the dictionary, and is associated with the task service component.

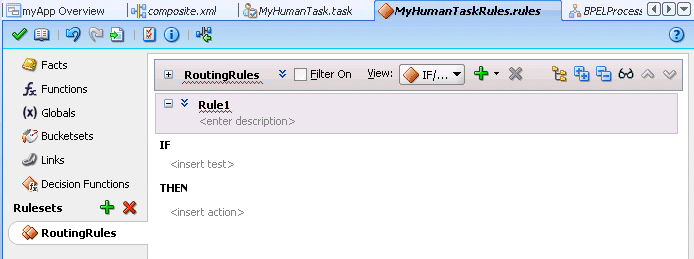

    Figure 29-44 Human Task Rule Dictionary

    Description of Figure 29-44 follows
    Description of "Figure 29-44 Human Task Rule Dictionary"
  3. Define state machine routing rules for your task using Oracle Business Rules.

    This automatically creates a fully-wired decision service in the human task and the associated rule repository and data model.

    To edit the business rules, click the Edit icon, next to the Rules Dictionary field.

    For more information about business rules, see the following documentation:
