Install an OS Using PXE Network Boot

  1. Ensure that the PXE network environment is properly set up.
  2. If your server requires the MAC address of an install client, obtain the system MAC address by logging in to the Oracle ILOM SP as root, and type:
    -> show System/ host_primary_mac_address
  /System
    Properties:
        host_primary_mac_address = 00:10:e0:ba:be:54
  3. Reset or power on the server.

    See Resetting or Powering the Server Off and On.

    The system begins the boot process and the BIOS screen appears.


    image:Graphic showing the BIOS Screen.
    Note -  The next step occurs very quickly; therefore, be ready to press the F2 key. Watch carefully for messages as they appear on the screen for a brief time. You might want to enlarge the size of your screen to eliminate scroll bars.
  4. Verify that PXE boot is enabled.
    Note -  PXE boot is enabled by default; however, this step directs you to verify that PXE boot is enabled in the event that it was disabled. After you verify that PXE boot is enabled, you can omit this step on subsequent PXE boots.
    1. Press the F2 key to access the BIOS Setup Utility.
    2. In the BIOS Setup Utility, select Advanced in the top menu bar.
    3. In the BIOS Setup Utility Advanced screen, select Network Stack.

      The BIOS Setup Utility Network Stack screen appears.


      image:Graphic showing the BIOS setting for PXE Boot.
    4. If necessary, set the appropriate PXE Support setting (IPv4 or IPv6) to Enabled.
    5. To save the changes and exit the BIOS Setup Utility, press the F10 key.

    This causes the server to reset. After resetting, the BIOS screen appears again.

  5. On the BIOS screen, press the F8 key to specify a temporary boot device or press the F12 key to network boot (PXE).

    The Please Select Boot Device menu appears, listing the available boot devices.

    Note -  The Please Select Boot Device menu options might differ depending on the type of disk controller and other hardware, such as PCIe network cards, installed in your server.

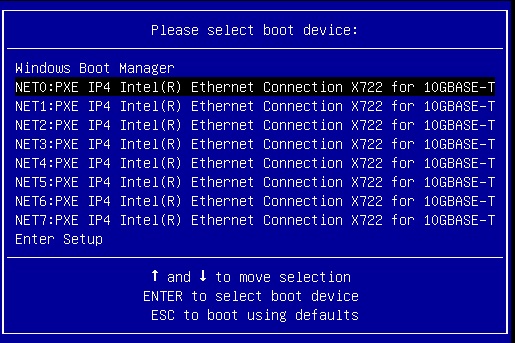

    image:Graphic showing the Please Select Boot Device menu.
  6. On the Please Select Boot Device menu, select the PXE boot port, and press Enter.

    The PXE boot port is the physical network port configured to communicate with your network install server.

  7. Follow the instructions to complete the PXE installation for your operating system.

    Follow the onscreen prompts to complete the PXE installation.

    Note -  From this point on, the installation procedure for Oracle Linux is site specific as determined by the site Kickstart file.
    Note -  For Oracle Solaris, the GRUB 2 menu appears. Refer to "x86: Administering the GRand Unified Bootloader" in Booting and Shutting Down Oracle Solaris 11.4 Systems at Oracle Solaris 11.4 Information Library at https://docs.oracle.com/cd/E37838_01/index.html.

    For instructions on completing the PXE installation, refer to Resources For Using PXE Network Boot.

Related Information

Resources For Using PXE Network Boot

For more information about how to use PXE Network Boot for OS Installation, refer to:

Install an OS Using PXE Network Boot (Oracle ILOM CLI)

Set the PXE property to temporarily bypass the system BIOS boot order at the next host boot and to boot the Oracle Server X8-8 over the network using the PXE boot specification.

  • Single server – Type -> set /HOST/boot_device=pxe

  • Multi-domain server – Type -> set /Servers/PDomains/PDomain_n/HOST/boot_device=pxe
