10 Managing People Connections

Configure People Connections in WebCenter Portal to create social networking tools and track portal user activities.

Permissions: To perform the tasks in this chapter, you must be granted the WebLogic Server Admin role through the Oracle WebLogic Server Administration Console and the Administrator role granted through WebCenter Portal Administration.

For more information about roles and permissions, see Understanding Administrative Operations, Roles, and Tools.

Topics:

Parent topic: Administering Tools and Services

About the People Connections Service

The People Connections service provides social networking tools for creating, interacting with, and tracking the activities of one’s connections. Its features enable users to manage their personal profiles, access the profiles of other users, provide ad hoc feedback, post messages, track activities, and connect with others.

People Connections features include:

Activity Stream for viewing user activities generated through application or social networking actions.
Connections for connecting to other application users to share information, comment on performance, exchange messages, and track activity
Feedback for giving ad hoc performance feedback to other users
Message Board for posting messages to other users
Profile for entering information about yourself and viewing the information of other users
Publisher for publishing status messages and posting files and links

The People Connections service provides task flows for using it features. For information on adding People Connections functionality to a portal, see Adding Connections to a Portal in Building Portals with Oracle WebCenter Portal.

Always use the Fusion Middleware Control or WLST command-line tool to review and configure back-end services for WebCenter Portal. Any changes you make to WebCenter Portal post-deployment are stored in MDS metadata store as customizations. Most changes you make to WebCenter Portal tools and services configuration through Fusion Middleware Control or using WLST are not dynamic. For your changes to take effect, you must restart the managed server where the application is deployed.

People Connections Prerequisites

To use the People Connections service, you must have the WEBCENTER schema installed in your database.

In a production environment, an enterprise can leverage its back-end identity store as a means of providing People Connections with a population of potential connections. In a development environment, developers can add test-users to the jazn-data.xml file.

For example, Profile takes the bulk of its information from the back-end identity store that provides WebCenter Portal with its users. Additionally, Profile may offer opportunities for altering some of this information and for providing additional data not included in the identity store.

For information about connecting to a back-end (LDAP) identity store for the production version of your application, see Configuring the Identity Store.

Configuring People Connections for WebCenter Portal

This section steps you through the process of setting application-wide values for People Connections features. It includes the following subsections:

Accessing People Connections Administrative Settings

To access People Connections administrative settings:

In the portal browser, click the Administration tile, then click Settings.
On the Settings page, click Tools and Services.

You can also enter the following URL in your browser to navigate directly to the Tools and Services pages:
```
http://host:port/webcenter/portal/admin/settings/tools
```
Click People Connections.

Configuring Activity Stream

Activity Stream is for publishing and tracking users’ application activity. Activity Stream configuration settings specify the users and activities that are streamed, who can see a user’s streamed activities, and whether liking and commenting is available on each streamed activity.

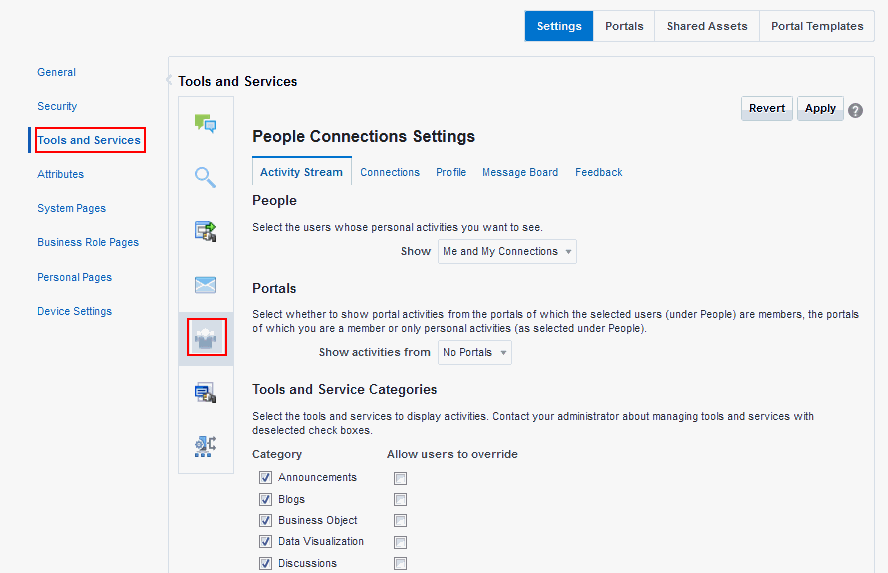

Figure 10-1 Administration Settings for People Connections

Who can view a user’s activities and the types of activities tracked depend on Activity Stream configuration.

Table 10-1 Activities Tracked by Activity Stream

Feature Area	Tracked Activities	Scope	Activities Shared or Private
Connections	Invitations to connect People are connected	Home portal	Shared with inviter and invitee's connections
Documents	Upload document from Publisher	Portal Home portal	Only document uploads via Activity Stream are tracked.
Events	Create an event Edit an Event	Portal	Shared with other portal members
Feedback	Feedback left Feedback received	Home portal	Shared with whomever is permitted to view such activities (see Setting Feedback Preferences in Using Portals in Oracle WebCenter Portal).
Lists	Create a list Add a row to a list Edit a list row	Portal	Shared with other portal members
Message Board	Message left Message received	Home portal	Shared with whomever is permitted to view such activities (see Setting Message Preferences in Using Portals in Oracle WebCenter Portal).
Pages	Create page Edit page Add tag Remove tag	Portal Home portal	Activities on portal pages are shared with other portal members. Activities on Home portal pages are private to user.
Profiles	Photo updated Profile updated Personal status note updated	Home portal	Shared with whomever is permitted to view such activities (see Setting Profile Preferences in Using Portals in Oracle WebCenter Portal).
WebCenter Portal Management	Create portal Join portal	Portal	Shared with other portal members
Tagging	Add tag Remove tag	Portal Home portal	Activities in a portal are shared with all portal members. Activities in a Home portal are shared with whomever is permitted to view such activities (see Configuring Activity Stream and Setting Activity Stream Preferences in Using Portals in Oracle WebCenter Portal).

Configure Activity Stream to show or hide actions from these categories:

People—For determining whose activities to show, either the current user’s or both the current user and the user’s connections.
WebCenter Portal—For determining whether to show activities from all available portals or just the Home portal.
Service Categories—For selecting the services from which to report activities and enabling users to override these default selections in their personal preferences or preventing users from overriding.
Privacy—For selecting who may see the current user’s activities.
Comments and Likes—For enabling users to comment on a posted activity and like a posted activity

To configure Activity Stream for all users:

On the Settings page, click Tools and Services.

You can also enter the following URL in your browser to navigate directly to the Tools and Services pages:
```
http://host:port/webcenter/portal/admin/settings/tools
```
Click the icon for People Connections Settings.
Click the Activity Stream tab.
Under People, select whose activities to show:
- Only Me—Show only the current user’s activities in his or her view of the Activity Stream.
- Me and My Connections—Show the current user’s activities and the activities of that user’s connections in his or her view of the Activity Stream.
- No Personal—Omit all activities streamed from the Home portal in the current user’s view of his or her Activity Stream.
Under Portals, select to show activities from:
- All Portals—All portals the user has access to
- My Portals—All portals the user manages
- No Portals—Only the Home portal
Under Service Categories, select the services from which to publish activity.

Note: The activities of services that are not selected are still tracked, but they do not appear in the Activity Stream. If you select to show the activities at some later point, then all of the activities that occurred when it was not selected will appear in the Activity Stream.

Table 10-1 lists the activities tracked by the Activity Stream.
Optionally, select Allow Owner Override to enable users to override a setting for a given service through their personal preferences.

Deselect this check box to prevent users from overriding the application defaults you set here.

Under Privacy, specify who can view the current user’s activities and whether users can override this setting in their personal preferences.

Table 10-2 Activity Stream Privacy Options

Option	Description
Allow all of my activities to be viewed by	Specify who can view another user's activities. Choose from: Everyone—Any user, whether logged in or not, can view other users' activities. Authenticated Users—Users who have logged in can view other users' activities. My Connections—User A can view user B's activities if user B has accepted user A as a connection. User A can also view user A's activities. Myself—Only user A can view user A's activities.
Allow Owner Override	Enable users to override the application default settings using their own People Connections Preferences.

Option

Description

Allow all of my activities to be viewed by

Specify who can view another user's activities. Choose from:

Everyone—Any user, whether logged in or not, can view other users' activities.
Authenticated Users—Users who have logged in can view other users' activities.
My Connections—User A can view user B's activities if user B has accepted user A as a connection. User A can also view user A's activities.
Myself—Only user A can view user A's activities.

Allow Owner Override

Enable users to override the application default settings using their own People Connections Preferences.

Expand the Likes and Comments node, and specify whether liking and commenting are allowed:
- Select Enable comments on objects in the Activity Stream to enable users to comment on a given Activity Stream item. Deselect the check box to prevent users from commenting.
- Select Enable others to like objects in the Activity Stream to enable users to like an Activity Stream item. Deselect the check box to prevent users from liking.
Tip: Users can like and comment on streamed items that include objects. For example, users can like or comment on “Jack posted a message.” Users cannot like or comment on system messages, such as “Jack and Jill are now connected.”
Click Apply.

Configuring Connections

Connections configuration involves selecting who can view another user’s connections and whether users accept invitations to connect automatically.

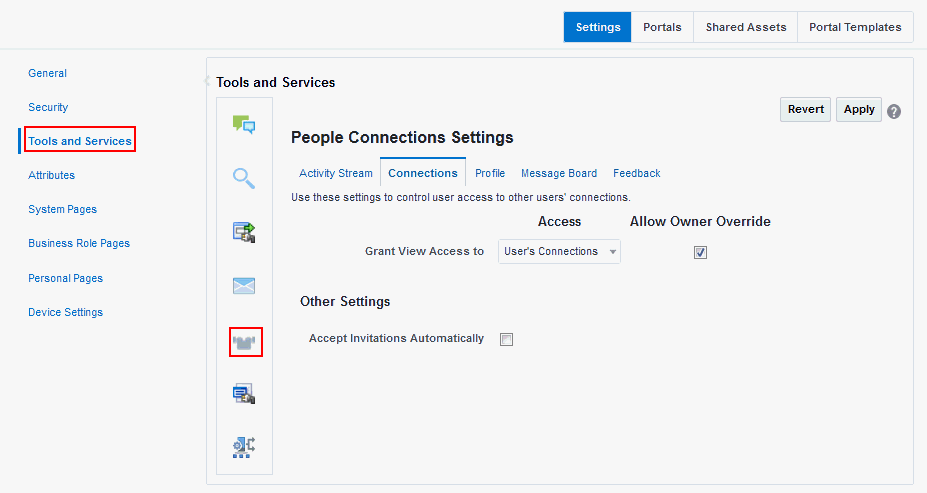

Figure 10-2 Configuration Settings for Connections

To configure Connections:

On the Settings page (see Accessing the Settings Pages in WebCenter Portal Administration), click Tools and Services.

You can also enter the following URL in your browser to navigate directly to the Tools and Services pages:
```
http://host:port/webcenter/portal/admin/settings/tools
```
See Also: WebCenter Portal Pretty URLs in Building Portals with Oracle WebCenter Portal.
Click the icon for People Connections Settings.
Click the Connections tab.

Select the required connection options:

Table 10-3 Connections Configuration Options

Option	Description
Grant View Access to	Classes of users to whom to grant automatic view access to a user's connections. The users you select can view and interact with another user's connections. Choose from: Everyone—All users, including users who are not logged in, can see other users' connections. Authenticated users—Only users who are logged in can see other users' connections. User's Connections—Only the user and the user's connections can see the user's connections. User Only—Only a user can see his or her own connections.
Allow Owner Override	Allow or prohibit users from overriding the administrator View access setting: Select to allow users to override the administrative View access setting specified here using their personal preferences. Deselect to prohibit users from overriding the administrative View access setting.
Accept Invitations Automatically	Select to specify that, by default, all invitations to connect are accepted automatically. Deselect to specify that, by default, a user must explicitly accept or reject invitations to connect.

Option

Description

Grant View Access to

Classes of users to whom to grant automatic view access to a user's connections.

The users you select can view and interact with another user's connections. Choose from:

Everyone—All users, including users who are not logged in, can see other users' connections.
Authenticated users—Only users who are logged in can see other users' connections.
User's Connections—Only the user and the user's connections can see the user's connections.
User Only—Only a user can see his or her own connections.

Allow Owner Override

Allow or prohibit users from overriding the administrator View access setting:

Select to allow users to override the administrative View access setting specified here using their personal preferences.
Deselect to prohibit users from overriding the administrative View access setting.

Accept Invitations Automatically

Select to specify that, by default, all invitations to connect are accepted automatically.
Deselect to specify that, by default, a user must explicitly accept or reject invitations to connect.

Click Apply.

Configuring Profile

Every authenticated user has a profile that displays personal information, such as email address, phone number, office location, department, manager, direct reports, and so on. All but three attributes are stored and read from the LDAP identity store that is configured for WebCenter Portal. The three exceptions are: profile photo, expertise, and Publisher status messages.

Use People Connections Settings for Profile to specify whether users are allowed to change their sign in password, which profile sections display for different types of users, whether users are allowed to update their profile details, and the profile settings that users may edit.

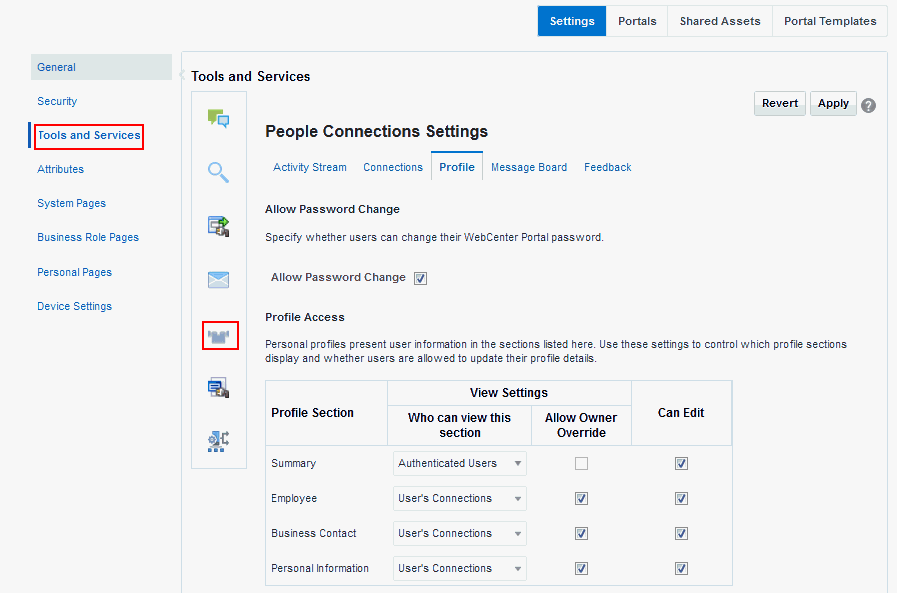

Figure 10-3 Configuration Settings for Profile

Personal profiles are presented in four profile sections: Summary, Employee, Business Contact, Personal Information. Each section provides information related to the section name. For example, Summary includes a collection of basic details, such as the user’s name, email address, and office location.

To configure Profile:

On the Settings page (see Accessing the Settings Pages in WebCenter Portal Administration), click Tools and Services.

You can also enter the following URL in your browser to navigate directly to the Tools and Services pages:
```
http://host:port/webcenter/portal/admin/settings/tools
```
See Also: WebCenter Portal Pretty URLs in Building Portals with Oracle WebCenter Portal.
Click the icon for People Connections Settings.
Click the Profile tab.

Select the required options:

Table 10-4 Profile Configuration Options

Option	Description
Allow Password Change	Specify whether users are allowed to change their sign in password. Select to enable users to change their application password. Deselect to prevent users from changing their application password. This option is useful when your organization provides a single, separate application for managing user credentials and consequently prefers not to offer password management through each application.
Profile Access	Specify which profile sections to show and whether users are allowed to update their profile details. View Settings—Specify which users can view the associated profile section, and whether users can change these defaults in their personal Preferences. Note: View Settings for the Summary section control not only who can view summary details but also who can search for the user (for example, through global search, people pickers, and the searches one uses to find and invite other users to connect). For example, if Everyone is selected; if None is selected, then the user will not appear in search results. Set values for: Who can view this section—Specify which types of users can view the associated profile section by default: Everyone—All users, including unauthenticated (public) users, can see the associated profile section in other users' profiles. Authenticated users—Only users who are logged in can see the associated profile section in other users' profiles. User's Connections—The users to whom the current user is connected can see the associated profile section in other users' profiles. This option is available for all sections except Summary. User Only—Only the user can see his or her own details in the associated profile section. None—The profile section is hidden from all users. Allow Owner Override—Select to enable users to override the default application settings you specify here in their Preferences; deselect to disable override. Users cannot change the privacy settings on the Summary section through their Preferences. Can Edit—Select to enable users to edit the associated profile section of their own personal profiles; deselect to prohibit editing. This setting also controls whether an Edit link appears in the Profile task flow, but it does not affect the appearance of the Edit button or links on the default version of the Profile page. You can use the other Profile administrative settings to prohibit users from actually changing any Profile details.
Profile Attributes - Edit Settings	Specify the profile section attributes that users are allowed to edit by default. Under Allow Update: Select an attribute to enable users to edit its value in their own profiles. Deselect an attribute to prohibit users from editing it in their own profiles.
Profile Synchronization settings	Specify profile synchronization settings: Specify the size of the LDAP read batch for profile synchronization. Specify whether user profile photos will be synchronized with LDAP when the cache expires.

Click Apply.

Configuring Message Board

Message Boards provide a way for users to view and post messages to their connections. Configuration settings for Message Board provide controls for who can view and post messages, who can edit and delete the messages they leave, who can delete and change the visibility of messages they receive, and whether commenting and liking are available on each message.

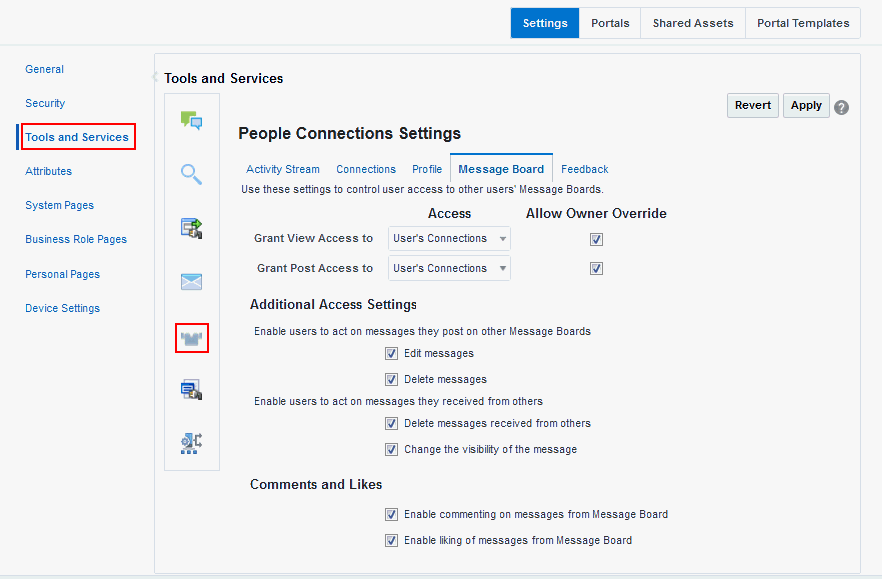

Figure 10-4 Configuration Settings for Message Board

To configure Message Board:

On the Settings page (see Accessing the Settings Pages in WebCenter Portal Administration), click Tools and Services.

You can also enter the following URL in your browser to navigate directly to the Tools and Services pages:
```
http://host:port/webcenter/portal/admin/settings/tools
```
See Also: WebCenter Portal Pretty URLs in Building Portals with Oracle WebCenter Portal.
Click the icon for People Connections Settings.
Click the Message Board tab.

Specify the required options:

Table 10-5 Message Board Configuration Options

Option	Description
Grant View Access to	Specify who can view Message Board messages. Everyone—All users, whether logged in or not, can see users' Message Board messages. Authenticated Users—Only logged in users can see users' Message Board messages. User's Connections—Only the user and the user's connections can view the user's Message Board. User Only—Only the user can see the messages on his or her Message Board.
Grant Post Access to	Specify who can post Message Board messages. Everyone—All users, whether logged in or not, can post Message Board messages. Authenticated Users—Only logged in users can post messages to Message Boards. User's Connections—Only the user and the user's connections can post messages to the user's Message Board. User Only—Only the user can post messages to his or her Message Board.
Allow Owner Override	Specify whether users can override these administrative defaults. Select to enable users to edit the default settings through user preferences. Deselect to enforce the administrator default application settings.
Enable users to act on messages they post on other Message Boards	Specify whether users are allowed to act on the messages they post. Edit message—Select to enable users to edit their own Message Board posts; deselect to prohibit users from editing the messages they post. Delete message—Select to enable users to delete their own Message Board posts; deselect to prohibit users from deleting the messages they post.
Enable users to act on messages they received from others	Specify whether users can act on messages they receive from others. Delete message—Select to enable users to delete messages they receive from other users; deselect to prohibit users from deleting the messages they receive. Change the visibility of the message—Select to enable users to hide or show the messages from a given user; deselect to prohibit users from hiding or showing messages.
Enable commenting on messages from Message Board	Specify whether users can comment on messages that are posted on a Message Board. Select to permit users to comment on messages. A Comment link appears below each message. Users click this to enter a comment. Deselect to prohibit commenting.
Enable liking of messages from Message Board	Specify whether to enable users to like a message. Select to permit users to like messages. A Like link appears below each message. Deselect to prohibit liking.

Click Apply.

Configuring Feedback

Feedback provides a way for users to view and post feedback for other application users. Configuration settings for Feedback provide controls for granting view and post access for feedback a user receives, granting view access for feedback a user gives, allowing users to override administrative default settings, enabling users to delete the feedback they post, and enabling a user to show or hide feedback left by others.

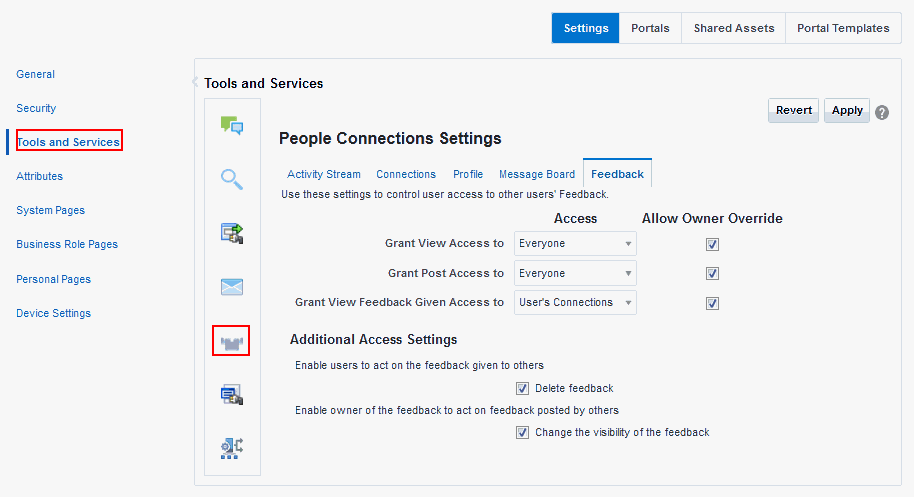

Figure 10-5 Configuration Settings for Feedback

To configure Feedback:

On the Settings page (see Accessing the Settings Pages in WebCenter Portal Administration), click Tools and Services.

You can also enter the following URL in your browser to navigate directly to the Tools and Services pages:
```
http://host:port/webcenter/portal/admin/settings/tools
```
See Also: WebCenter Portal Pretty URLs in Building Portals with Oracle WebCenter Portal.
Click the icon for People Connections Settings.
Click the Feedback tab.

Select the required options:

Table 10-6 Feedback Configuration Options

Option	Description
Grant View Access to	Specifies who can view the current user's Feedback Everyone—All users, whether logged in or not, can see a given user's Feedback. Authenticated Users—Only users who are logged in can see a given user's Feedback. User's Connections—Only the user and the user's connections can see a given user's Feedback. User Only—Disables other users from viewing a given user's Feedback.
Grant Post Access to	Specifies who can post user Feedback Everyone—All users, whether logged in or not, can post Feedback for a given user. Authenticated Users—Only logged in users can post Feedback for a given user. User's Connections—Only the user and the user's connections can post Feedback for a given user. User Only—Users can post Feedback only for themselves. Effectively disables Feedback.
Grant View Feedback Given Access to	Specifies who can see the View menu to switch between Feedback Given and Feedback Received in a Feedback task flow Everyone—All users, whether logged in or not, can see the options on the View menu. Authenticated Users—Only logged in users can see the options on the View menu. User's Connections—Only the user and the user's connections can see the View menu. User Only—Disables the View menu for all but the current user. When users visit the current user's Feedback task flow, they can view only the Feedback the current user has received.
Allow Owner Override	Specifies whether users can override these administrative defaults Select to enable users to revise application default settings through user preferences. Deselect to prevent users from altering administrator settings for Feedback.
Enable users to act on the feedback given to others	Indicates whether users can delete the Feedback they post Select Delete feedback to enable users to delete the Feedback they post. Deselect Delete feedback to prohibit users from deleting the Feedback they post.
Enable owner of the feedback to act on feedback posted by others	Indicate whether to enable users to hide or show Feedback from another user. Select Change the visibility of the feedback to enable users to hide or show the Feedback from another user. Deselect Change the visibility of the feedback to prohibit users from hiding or showing Feedback left by others.

Click Apply.

Archiving the Activity Stream Schema

Administrators can use these WLST commands to archive and restore data in the Activity Stream schema:

archiveASByDate—Archive activity stream data that is older than a specified date.
archiveASByDeletedObjects—Archive activity stream data associated with deleted objects.
archiveASByClosedSpaces—Archive activity stream data associated with portals that are currently closed.
archiveASByInactiveSpaces—Archive activity stream data associated with portals that have been inactive since a specified date.
restoreASByDate—Restore archived activity stream data from a specified date into production tables.
truncateASArchive—Truncate activity stream archive data.
archiveASBySpace—Archive activity stream data associated with a portal.
archiveASAllSpaces—Archive activity stream data associated with all portals.
archiveASByUser—Archive activity stream data associated with a user.
archiveASAllUsers—Archive activity stream data associated with all users.
archiveASByDeletedActors—Archive activity stream data associated with deleted actors.
showASStatistics—Report activity stream statistics.

For more information, see Activity Stream in WebCenter WLST Command Reference.

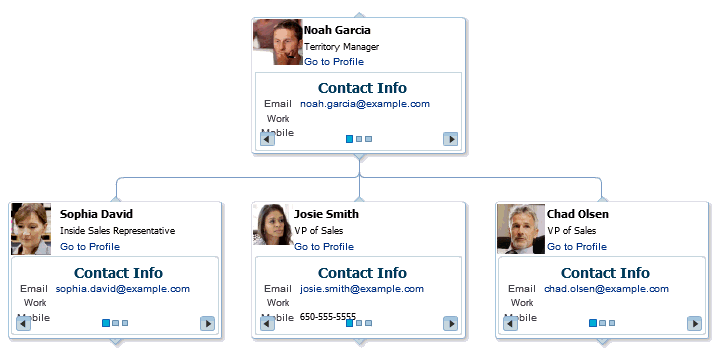

Specifying a Management Chain for Organization View

The Organization View task flow and the Organization tab on a Profile page can provide a visualization of your management chain, for example, they can render a view of a manager and the manager’s direct reports.

Figure 10-6 Organization View of a Manager and the Manager’s Direct Reports

By default, the values that define the management chain for these organization views are blank. This means that managers are not automatically specified for users in the back-end identity store that provides user details.

Tip: The value for Manager on the Profile page’s About tab is also defined by the methods suggested in this section.

For the management chain to be rendered in organization views, the back-end identity store that is used for WebCenter Portal authentication must be set up in such a way that direct report users have a manager attribute. And the manager attribute must be defined as the Distinguished Name (DN) of their manager user.

Tip: In an LDAP environment, a user can be managed by only one person; in the same environment, a user can manage many people.

Example Embedded LDAP Configuration

You can specify a management chain within the Oracle WebLogic Server (WLS) embedded LDAP or within an external LDAP, such as Oracle Internet Directory (OID). However, the management chain you define through the embedded LDAP is for testing or proof of concept and not for production. For production, you must use an external LDAP, such as OID, for the identity store for WebCenter Portal authentication.

See Also: For more information, see Configuring the Identity Store, or refer to the documentation provided with your LDAP implementation.

This example describes how to define a management chain within the embedded LDAP in WebLogic Server for testing or proof of concept.

Note: The steps provided in this example are similar to those you take for an external LDAP. That is, you create an attribute (manager) and set a value on the attribute for each user. For this value, enter the DN of the selected user’s manager.

In this example, there are three users:

user1
user2
manager_user

To define a management chain with these users:

Enable browsing of the embedded LDAP using an external viewer, such as Apache Directory Studio:
1. Go to the WLS Administration Console, and log in as the administrator user.
2. Click your domain (for example, wc_domain), then open the Security tab and then the Embedded LDAP subtab (Figure 10-7).

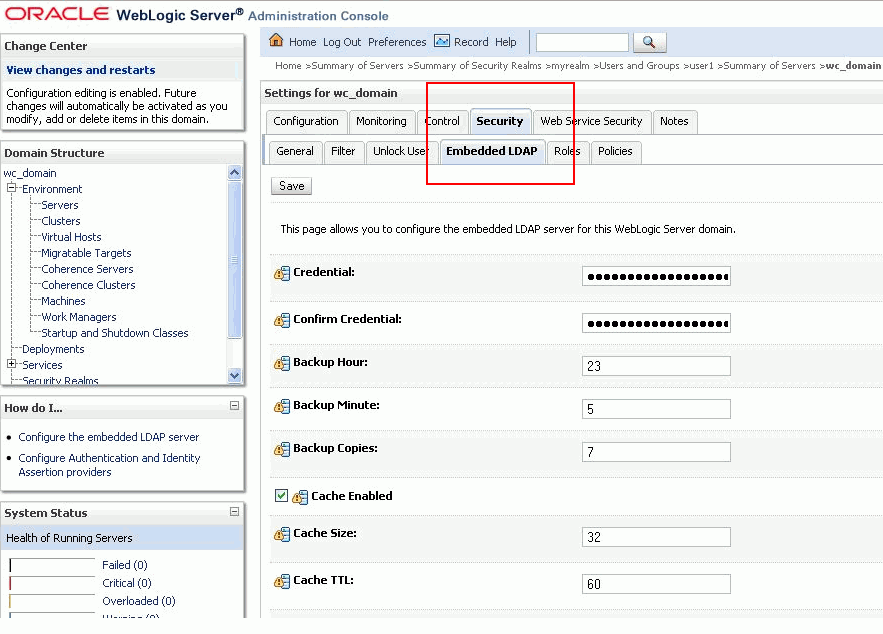

  Figure 10-7 Oracle WebLogic Server Administration Console
3. Enter a value in the Credential field, and then reenter that value in the Confirm Credential field.

  Tip: The default credential is a randomly generated password. Set it to something memorable.
4. Restart your administration and managed servers.
Start up the LDAP viewer you selected in Step 1, and create a connection using the following details:
- hostname (for example, example.com)
- port (the WLS administration port, for example 7001)
- Bind DN (cn=Admin)
- Password (that is, the credential you set in Step 1c)
Navigate to user1 by finding the users within the DIT tree (Figure 10-8).

For example, click in succession:
- dc=wc_domain
- ou=myrealm
- ou=people
- uid=user1

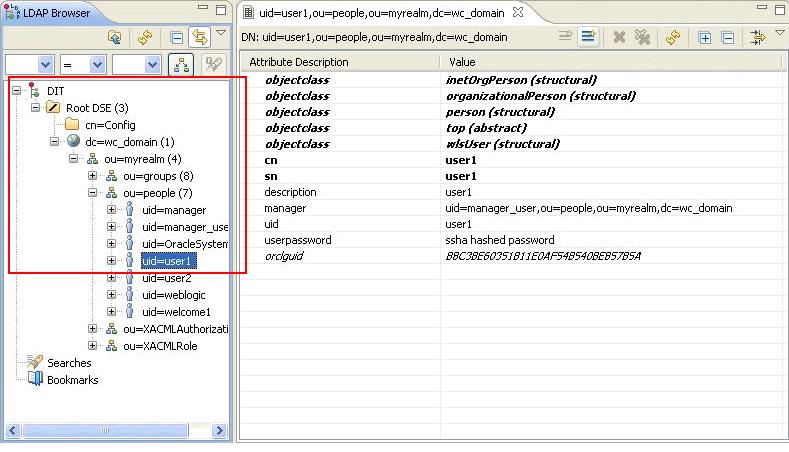

Figure 10-8 Selecting a User in the DIT Tree of an LDAP Browser
In the Attribute Description column, add a new attribute of type manager.

Tip: Press Ctrl-Shift-+ to open the New Attribute dialog.
For the attribute value, select the DN for manager_user (Figure 10-9).

For example, under the root, select in succession:
- dc=wc_domain
- ou=myrealm
- ou=people
- uid=manager_user

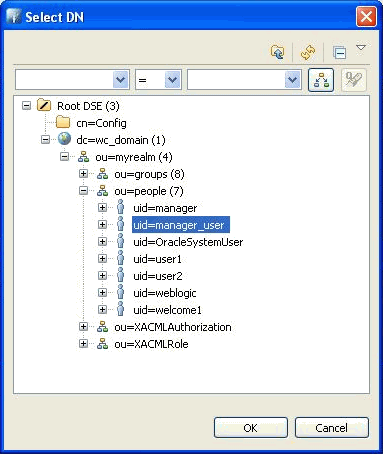

Figure 10-9 Select DN Dialog
Repeat Steps 3 through 5 for user2.

Now user1 and user2 are managed by manager_user. You can check this by logging in to WebCenter Portal as user1 and navigating to the About tab of the Profile page. The user manager_user is shown as the manager (Figure 10-10).

Figure 10-10 About Tab of the Profile Page

Tip: Click the value for Manager (in this example, manager_user) to view the manager’s profile. Access the Organization tab to see the organization view associated with the currently viewed profile.

Setting Profile Configuration Properties

Administrators can use WLST commands to set profile configuration properties, such as setting the profile version that appears in the user interface. Administrators can perform the following actions:

Set the profile configuration properties by running setProfileConfig.

Syntax:
```
setProfileConfig(appName, [ProfilePageVersion], [ProfileSyncHourOfDay], [ProfileSyncFrequencyInDays], [server], [applicationVersion])
```
This command takes the following parameters:
- appName - The name of the WebCenter Portal application in which to perform this operation. For example, webcenter.
- ProfilePageVersion - (Optional) The profile page version to use. Valid values for ProfilePageVersion are:
  - v1 - Use old-style Profile pages (11.1.1.7.0 and earlier)
  - v2 - (default) Use the new Profile page format (introduced in 11.1.1.8.0)
  Note: Profile page version changes will not take effect until you restart the server where the WebCenter Portal application is deployed.
- ProfileSyncHourOfDay - (Optional) The hour to start profile synchronization. Any value between 0 and 23. The default value is 23, equivalent to 11pm.
- ProfileSyncFrequencyInDays - (Optional) How often profile synchronization takes place (in days). Any value greater than 0. The default value is 7.
Note: If you omit a parameter, the corresponding configuration remains unchanged.
List the current profile configuration settings by running listProfileConfig.

Syntax:
```
listProfileConfig(appName)
```
This command takes the following parameter:
- appName - The name of the WebCenter Portal application to perform this operation on. For example, webcenter.
Get the current value of a profile property by running getProfileConfig.

Syntax:
```
getProfileConfig(appName, key, [server], [applicationVersion])
```
This command takes the following parameters:
- appName - The name of the WebCenter Portal application to perform this operation on. For example, webcenter.
- key - Name of a the Profile Config property to get. Valid values include:
  - ProfilePageVersion
  - ProfileSyncHourOfDay
  - ProfileSyncFrequencyInDays
- server - (Optional) The name of the target server where the application is deployed.
- applicationVersion - (Optional) The version number of the application.

Synchronizing Profiles with the Identity Store

Administrators can use WLST commands to synchronize profile information in the LDAP identity store with WebCenter Portal. Administrators can perform the following actions:

Start or stop profile synchronization for all users or a single user by running startSyncProfiles or stopSyncProfiles.
Check whether profile synchronization is currently in progress by running isSyncProfilesRunning.
Set various profile synchronization options:
- Specify whether to synchronize user profile photos in LDAP by running setProfilePhotoSync.
- Synchronize profile information for a specific user by running syncProfile.

For more information, see the following command references in WebCenter WLST Command Reference:
