Cross references are stored in the form of tables. Table 44-1 shows a cross reference table containing information about customer identifiers in different applications.

The identifier mapping is also required when information about a customer is updated in one application and the changes must be propagated to other applications. You can integrate different identifiers by using a common value integration pattern, which maps to all identifiers in a cross reference table. For example, you can add one more column named Common to the cross reference table shown in Table 44-1. The updated cross reference table then appears, as shown in Table 44-2.

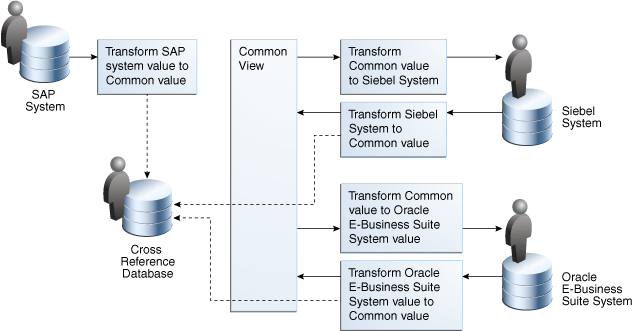

Figure 44-1 shows how you can use common value integration patterns to map identifiers in different applications.

A cross reference table consists of two parts: metadata and actual data. The metadata is saved as the .xref file created in Oracle JDeveloper, and is stored in the Metadata Services (MDS) repository as an XML file. By default, the actual data is stored in the XREF_DATA table of the database in the SOA Infrastructure database schema. You can also generate a custom database table for each cross reference entity. The database table depends on the metadata of the cross reference entity.

Consider the following two cross reference entities:

• ORDER with cross reference columns SIEBEL, COMMON, and EBS, as shown in Table 44-3

• CUSTOMER with cross reference columns EBS, COMMON, and PORTAL, as shown in Table 44-4

If you chose to save all the runtime data in one generic table, then the data is stored in the XREF_DATA table, as shown in Table 44-5.

This approach has the following advantages:

• The process of adding, removing, and modifying the columns of the cross reference entities is simple.

• The process of creating and deleting cross reference entities from an application is straightforward.

However, this approach has the following disadvantages:

• A large number of rows are generated in the database because each cross reference cell is mapped to a different row in the database. This reduces the performance of the queries.

• In the generic table, the data for the columns XREF_TABLE_NAME and XREF_COLUMN_NAME is repeated across a large number of rows.

To overcome these problems, you can generate a custom database table for each cross reference entity. The custom database tables depend on the metadata of the cross reference entities. For example, for the XREF_ORDER table and XREF_CUSTOMER table, you can generate the custom database tables shown in Table 44-6 and Table 44-7.

This approach requires you to execute Data Definition Language (DDL) scripts to generate the custom database tables. For more information about custom database tables, see How to Create Custom Database Tables.
