How To Modify Mediator Operations

You can modify an Oracle Mediator WSDL file by adding or deleting operations. After modifying the WSDL file, use the Refresh WSDL dialog to synchronize the changes.

To modify operations:

  1. In the Mediator Editor, click the Refresh operations From WSDL icon to the right of the WSDL URL field.

    The Refresh WSDL dialog appears. If you have made any modifications to the WSDL file, the Refresh WSDL dialog lists all the operations to delete or add. The Refresh will delete Mediator operation field lists all the operations that have been removed from the WSDL file. The Refresh will add Mediator operation field lists all the new operations that have been added in the WSDL file. Figure 19-26 shows the Refresh WSDL dialog.

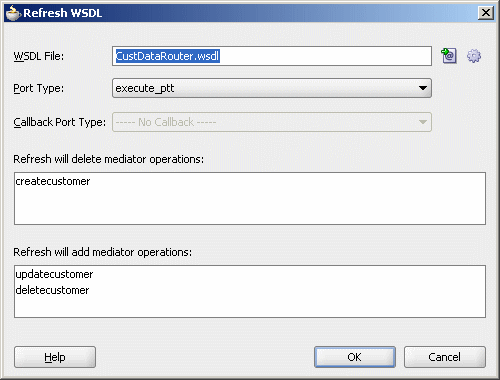

    Figure 19-26 Refresh WSDL Dialog

    Description of Figure 19-26 follows
    Description of "Figure 19-26 Refresh WSDL Dialog"
  2. To specify a different WSDL file, click Find existing WSDLs to the right of the WSDL URL field to use an existing WSDL file or Generate WSDL From schema(s) to create a WSDL file.

    The Refresh WSDL dialog is updated based on the operations defined in the specified WSDL file.

  3. Click OK.
  4. From the File menu, select Save All.
