How to Generate Reports

You can generate an HTML report with the following information:

  • XSL map file name, source and target schema file names, their root element names, and their root element namespaces

  • Target document mappings

  • Target fields not mapped (including mandatory fields)

  • Sample transformation map execution

Follow these instructions to generate a report.

  1. In the Canvas (center) pane, right-click and select Generate Report for XSLT Map.

    The Generate Report dialog appears, as shown in Figure 41-42. If the map has defined parameters, the appropriate parameter tables appear.

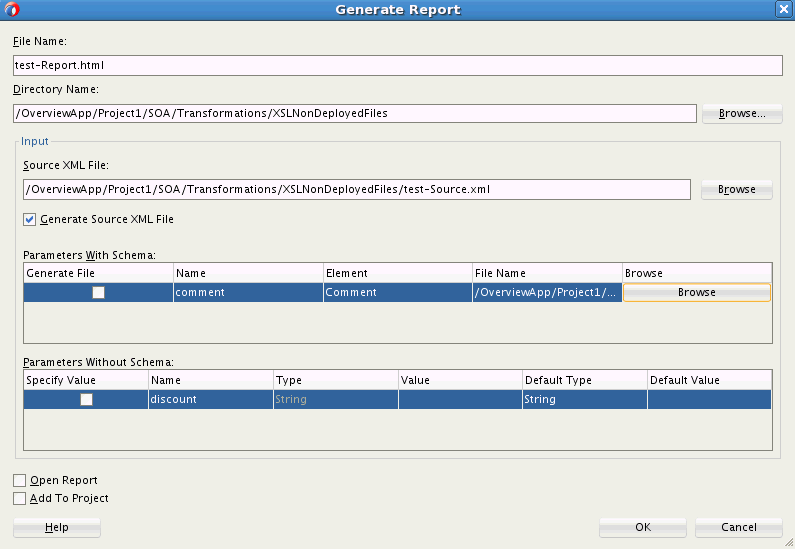

    Figure 41-42 The Generate Report Dialog

    Description of Figure 41-42 follows
    Description of "Figure 41-42 The Generate Report Dialog"

    For more information about the fields, see the online Help for the Generate Report dialog.
