How to Create a Partner Link

To create a partner link:

  1. In the SOA Composite Editor, double-click the BPEL process service component.

    Oracle BPEL Designer is displayed.

  2. In the Components window, expand BPEL Constructs.
  3. Drag a Partner Link into the appropriate Partner Links swimlane, as shown in Figure 4-17.

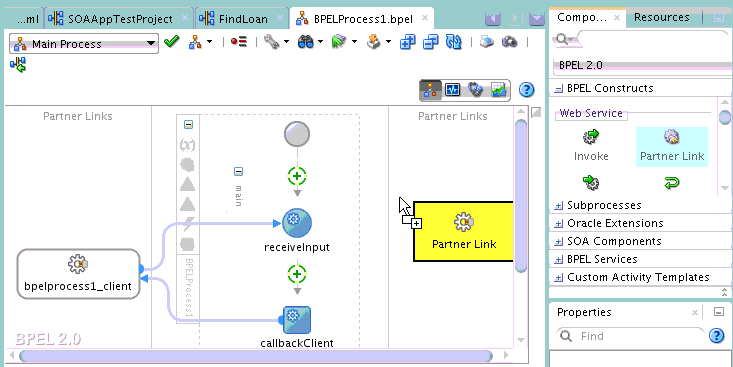

    Figure 4-17 Partner Link Creation in Oracle BPEL Designer

    Description of Figure 4-17 follows
    Description of "Figure 4-17 Partner Link Creation in Oracle BPEL Designer"

    The Create Partner Link dialog appears.

  4. Complete the fields for this dialog, as described in Table 4-4.

The following sections describe the impact of partner link creation on the SOA Composite Editor.
