Perform the following tasks to create routing rules for the UpdateID operation.

1. In the Routing Rules section, click the Create a new Routing Rule icon.

   The Target Type dialog is displayed.

2. Select Service.

   The Target Services dialog is displayed.

3. Navigate to XrefCustApp > References > SBL.

4. Select SBL and click OK.

5. Next to the Transform Using field, click the Transformation icon.

   The Request Transformation map dialog is displayed.

6. Select Create New Mapper File and enter COMMON_TO_SBL_UPDATEID.xsl.

7. Click OK.

   The COMMON_TO_SBL_UPDATEID.xsl file is displayed.

8. Drag and drop the inp1:Customers source element to the db:InputParameters target element.

   The Auto Map Preferences dialog is displayed.

9. Click OK.

   The transformation is created, as shown in Figure 44-39.

10. Drag and drop the lookupXRef function from the Components window to the line connecting inp1:id and db:X_CUSTOMER_ID.

11. Double-click the lookupXRef icon.

    The Edit Function: lookupXRef dialog is displayed.

12. Enter this information in the following fields:

    • xrefLocation: customer.xref

    • referenceColumnName: Common

    • referenceValue: /inp1:Customers/inp1:Customer/inp1:Id

    • columnName: SBL_78

    • needException: false()

13. Click OK.

14. From the File menu, select Save All and close the COMMON_TO_SBL_UPDATEID.xsl file.

15. In the Synchronous Reply section, click Browse for target service operations.

    The Target Type dialog is displayed.

16. Select Service.

    The Target Services dialog is displayed.

17. Navigate to XrefCustApp > References > Logger.

18. Select Write and click OK.

19. Next to the Transform Using field, click the Transformation icon.

    The Reply Transformation map dialog is displayed.

20. Select Include Request in the Reply Payload.

21. Click OK.

    The SBL_TO_COMMON_UPDATEID.xsl file is displayed.

22. Connect inp1:Customers source element to the db:X:APP_ID.

23. Drag and drop the populateXRefRow function from the Components window to the connecting line.

24. Double-click the populateXRefRow icon.

    The Edit Function-populateXRefRow dialog is displayed.

25. Enter this information in the following fields:

    • xrefLocation: customer.xref

    • referenceColumnName: Common

    • referenceValue: $initial.Customers/inp1:Customers/inp1:Customer/inp1:Id

    • columnName: SBL_78

    • value: /db:OutputParameters/db:X_APP_ID

    • mode: UPDATE

26. Click OK.

27. From the File menu, select Save All and close the SBL_TO_COMMON_UPDATEID.xsl file.

28. In the Synchronous Reply section, click the Assign Values icon.

    The Assign Values dialog is displayed.

29. Click Add.

    The Assign Value dialog is displayed.

30. In the From section, select Expression.

31. Click the Invoke Expression Builder icon.

    The Expression Builder dialog is displayed.

32. In the Expression field, enter the following expression and click OK.

    concat('UPDATEID-',$in.OutputParameters/db:OutputParameters/db:X_APP_ID,'.xml')


33. In the To section, select Property.

34. Select the jca.file.FileName property and click OK.

35. Click OK.

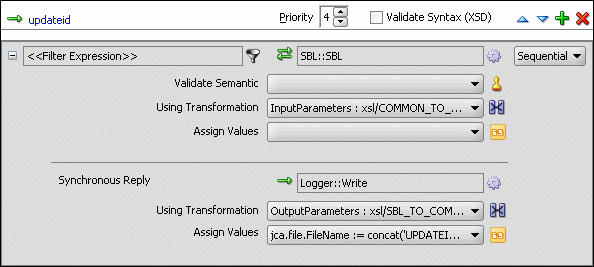

    The updateid operation section appears, as shown in Figure 44-44.

    Figure 44-44 Updateid Operation with SBL Target Service


    Description of "Figure 44-44 Updateid Operation with SBL Target Service"

36. From the File menu, select Save All.

37. Repeat Step 1 through Step 36 to specify another target service named EBS and specify the routing rules.

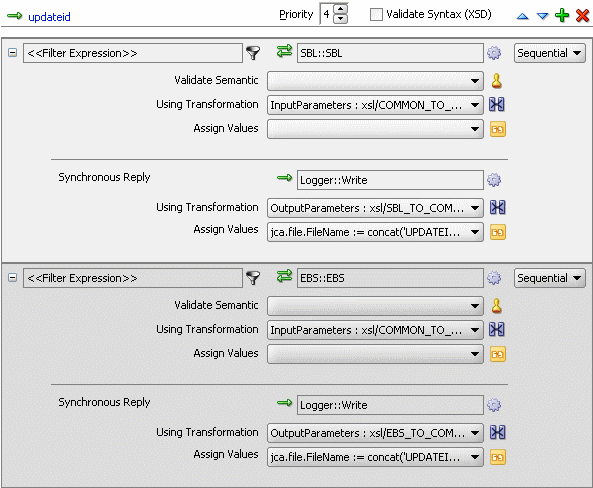

    Figure 44-45 shows the updateid operation section with the SBL and EBS target services.

    Figure 44-45 Updateid Operation with SBL and EBS Target Service


    Description of "Figure 44-45 Updateid Operation with SBL and EBS Target Service"
