To copy a source node to a target node:

  1. Expand the source tree in the left pane by clicking the plus sign (+) next to a source node. Similarly expand the target tree in the right pane.

  2. Use one of the following methods to copy a source variable to a target variable:

    • Drag the desired source node to the target node. A line appears connecting the source and target nodes. The assignment also appears in the bottom pane. Figure 20-33 shows the Assign Values dialog after copying a source node to a target node.

    • Select the source node in the left pane and the target node in the right pane. Click the Create rule from selected nodes icon (green plus icon) above the bottom pane to create an assignment.

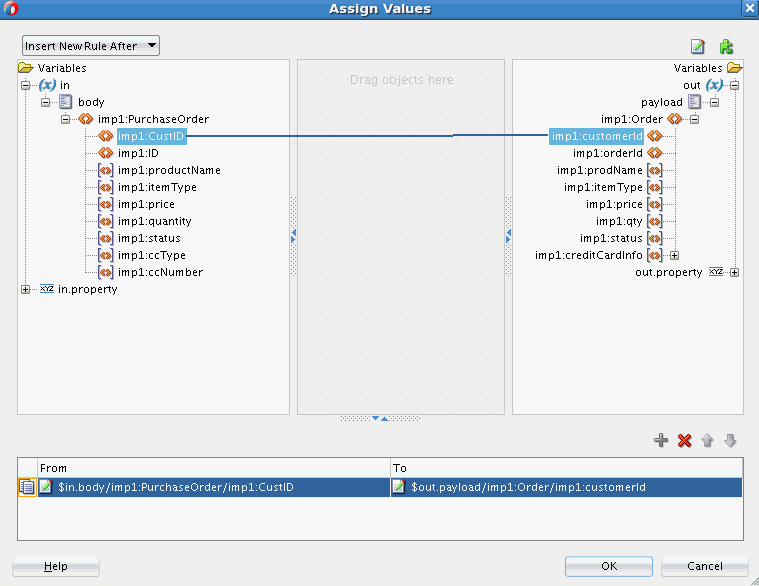

    Figure 20-33 Copying Source Variables to Target Variables

    Description of Figure 20-33 follows
    Description of "Figure 20-33 Copying Source Variables to Target Variables"

  3. Click OK to create the assignment.
