Insert Content: Simphony_DiscountBundle

  1. Ensure the new record is highlighted, click the Insert Application Content button, and then enter the text as shown in the following fields:

    • ZoneableKey: Simphony_DiscountBundle (This field is case-sensitive and must be entered exactly as shown.)

    • Description: Application

  2. Click OK.

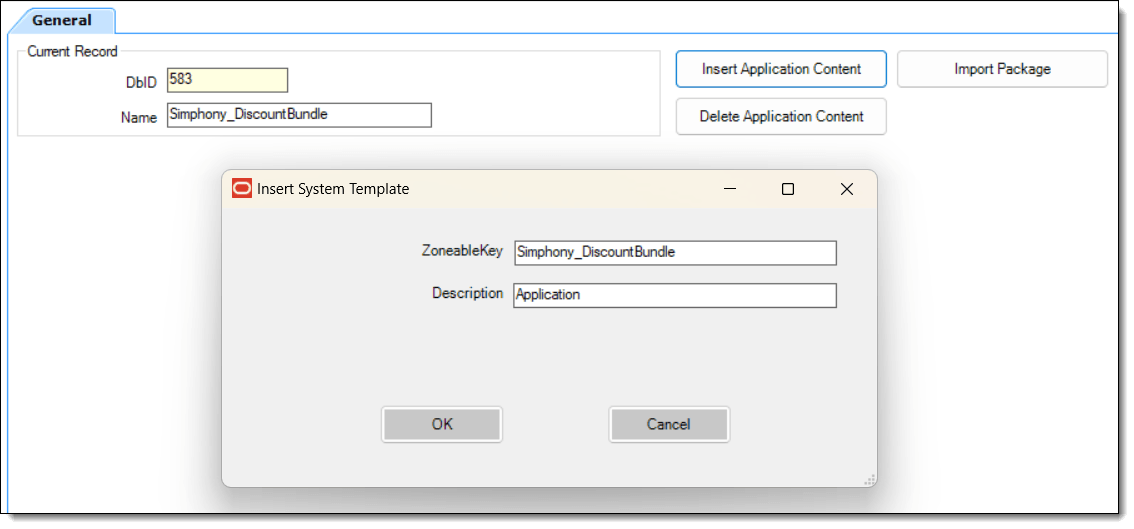

    Figure 15-3 Extension Application Module - Insert Application Content Window


    This figure shows the extension application module when identifying the Simphony discount bundle to the system.

  3. From the Content Type drop-down list, select 3 - DLL, and then click the Import from a file link.

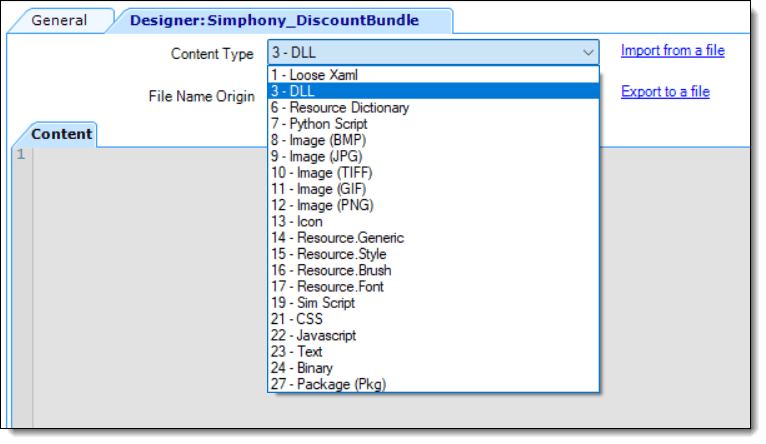

    Figure 15-4 Extension Application Module - Content Type Selection


    This figure shows the extension application module and assigning the content type as a DLL.

  4. Navigate to the Simphony_DiscountBundle.dll file from the installation package, select the file, and then click Open.

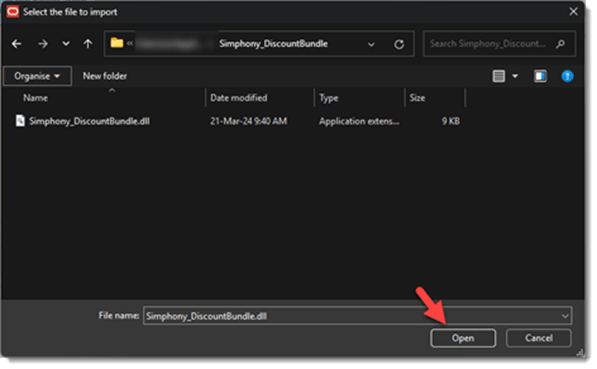

    Figure 15-5 Importing the Simphony_DiscountBundle.dll Package


    This figure shows the extension application module when importing the Simphony_DiscountBundle.dll.

  5. Click the General tab and then enter Simphony_DiscountBundle.dll as the Disk File Name.

    The Disk File Name field is case-sensitive and must be entered exactly as shown.

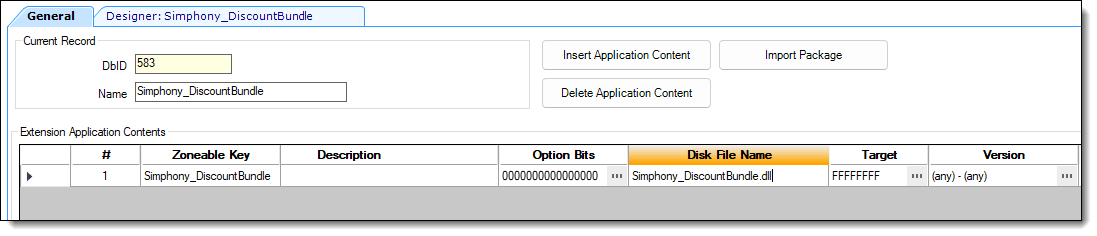

    Figure 15-6 Extension Application Module - Disk File Name Entry


    This figure shows the extension application module when entering the disk file name.

  6. If necessary, scroll to the right, click the ellipsis symbol (...) under the Target column, and then select 1 - Win32 and 14 - Linux only. Other options need to be disabled under the Versions column for the (any) - (any) settings.

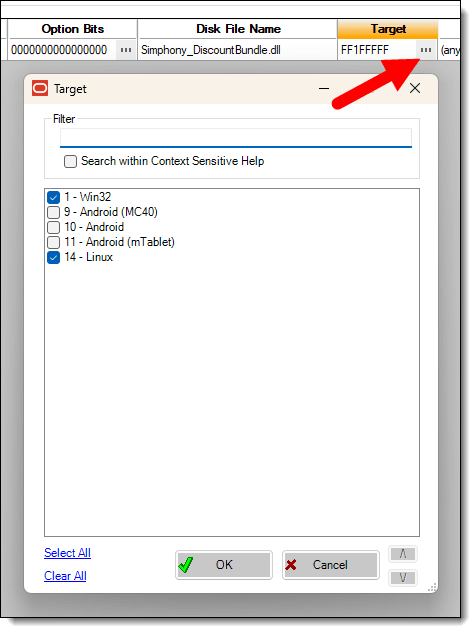

    Figure 15-7 Extension Application Module - Targeted Workstation Settings


    This figure shows the extension application module when enabling specific workstation types for the Target field.

  7. Click OK.

  8. Click Save.

Parent topic: EMC – Extension Application Installation
