User can settle the disbursement amount using an external account.

1. From the Settlement details section, click Add New Settlement.
   The Add settlement section is displayed.

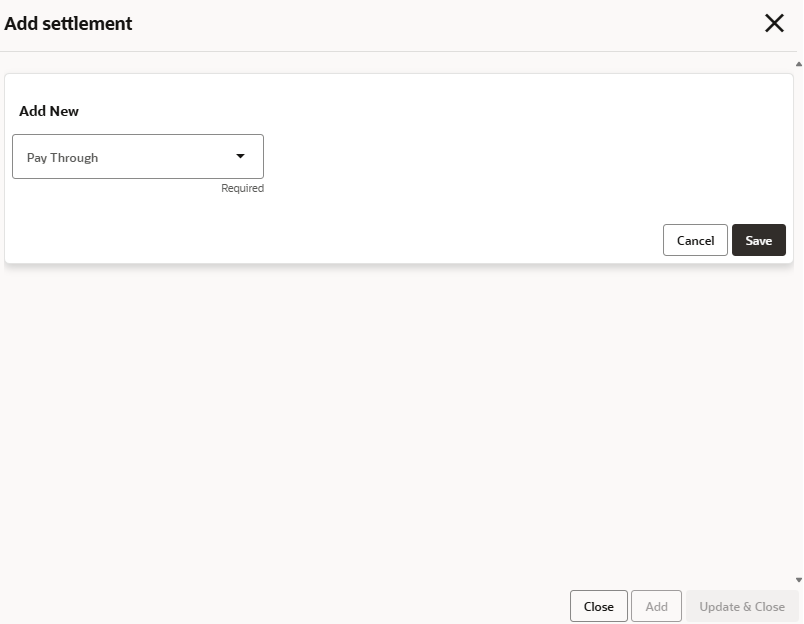

   Figure 3-35 Add Settlement





   Description of "Figure 3-35 Add Settlement"



2. Select the External Account option from the Pay Through field.
   The fields for adding external account details are displayed.

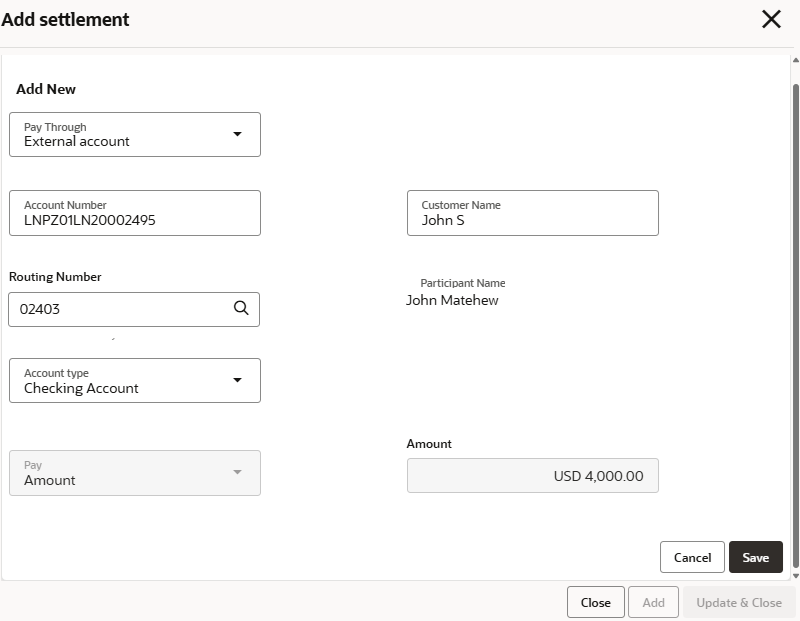

   Figure 3-36 External Account





   Description of "Figure 3-36 External Account"



3. In the Add settlement section, user can maintain the required details. For more information on fields, refer to field description table below:

   Table 3-19 Settlement through external account – Field Description

   Field	Description
   Pay Through	Select the External Account option from the list. The other options are: Customer account: For more information, refer Pay Through Customer Account. Other customer's account: For more information, refer Pay Through Other Customer's Account. Ledger: For more information, refer Pay Through Ledger.
   Account Number	Specify the account for performing the disbursement.
   Customer Name	Specify the customer name of the external account.
   Routing Number	Select the routing number for settling the disbursement amount.
   Participant Name	Displays the name of the participant.
   Account Type	Select the account type for settling the disbursement amount. The options are: Savings Account Checking Account
   Pay	Select the option for disbursement payment. The options are: Amount Percentage
   Amount	Specify the amount to be disbursed. Note: This field is displayed if Amount option is selected from the Pay field.
   Percentage	Specify the percentage of amount to be disbursed. Note: This field is displayed if Percentage option is selected from the Pay field. Based on the perentage specified, the value is calculated and displayed in the Amount field.

4. Click Save.
   The details are added and displayed in a tabular format.

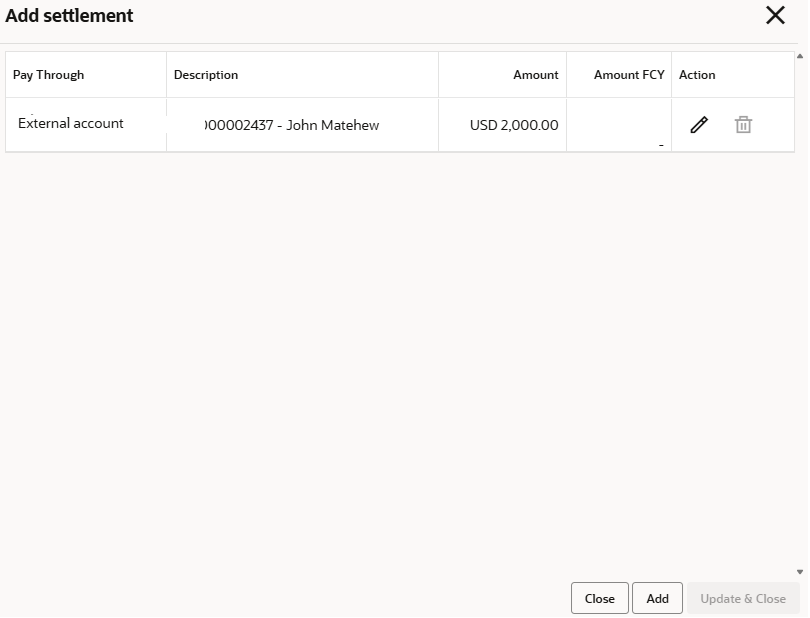

   Figure 3-37 External Account Added





   Description of "Figure 3-37 External Account Added"




   For more information on fields, refer to field description table below:

   Table 3-20 Settlement Details Added – Field Description

   Field	Description
   Pay Through	Displays the option selected for pay through.
   Description	Displays the account number and account holder's name.
   Amount	Displays the disbursement amount.
   Amount FCY	Displays the amount in foreign currency.
   Action	Displays the action that can be performed on the details added. The options are: Edit : Click to edit the settlement details. As user clicks this icon, An Edit section is displayed. User can edit the required details and click Save. Delete : Click to delete the settlement details added. This icon is enabled, if multiple settlements are added to from the account.

5. Click Add.
   The details are added successfully and displayed in the Settlement details section.
