Subdeployment Creation

This topic explains the systematic instructions to create the subdeployment in the Weblogic application server.

To create the subdeployments, follow the steps given below:
  1. Start the Administrative Console of the WebLogic application server. Enter the Oracle WebLogic Admin Console URL in the address bar in an internet browser.
    Oracle Weblogic Server - Welcome screen is displayed.

    Figure 8-46 Oracle Weblogic Server - Welcome


    Description of Figure 8-46 follows
    Description of "Figure 8-46 Oracle Weblogic Server - Welcome"

  2. Specify the WebLogic Administrator Username and Password.
    Click Log In.
  3. Navigate to Oracle Weblogic home page.
    Oracle Weblogic Server - Home Page screen is displayed.

    Figure 8-47 Oracle Weblogic Server - Home Page


    Description of Figure 8-47 follows
    Description of "Figure 8-47 Oracle Weblogic Server - Home Page"

  4. On the left pane, under Domain Structure, expand Services, Messaging and JMS Modules under it.
  5. Click the Lock & Edit button under the Change Center.
  6. Select the JMS module created earlier.
    Settings for FCUBS_SystemModule screen is displayed.

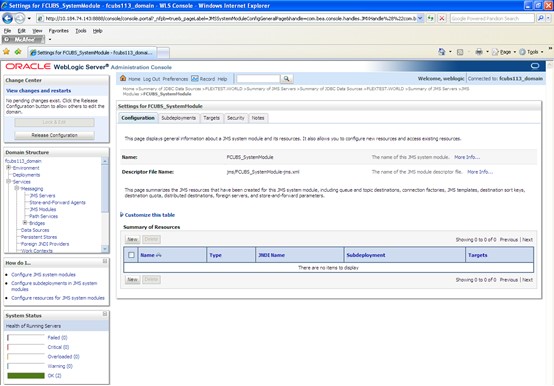

    Figure 8-49 Settings for FCUBS_SystemModule


    Description of Figure 8-49 follows
    Description of "Figure 8-49 Settings for FCUBS_SystemModule"

  7. Click on Subdeployments tab.
    Settings for FCUBS_SystemModule - Subdeployments tab is displayed.
    Description of settings-fcubs_systemmodule-subdeployments.jpg follows
    Description of the illustration settings-fcubs_systemmodule-subdeployments.jpg

    Figure 8-50 Settings for FCUBS_SystemModule - Subdeployments


    Description of Figure 8-50 follows
    Description of "Figure 8-50 Settings for FCUBS_SystemModule - Subdeployments"

  8. On the Subdeployments tab, click New.
    Create a New Subdeployment screen is displayed.

    Figure 8-51 Create a New Subdeployment


    Description of Figure 8-51 follows
    Description of "Figure 8-51 Create a New Subdeployment"

  9. On Create a New Subdeployment screen, specify the Subdeployment Name as FCUBS and click Next.
    Create a New Subdeployment - Targets screen is displayed.

    Figure 8-52 Create a New Subdeployment - Targets


    Description of Figure 8-52 follows
    Description of "Figure 8-52 Create a New Subdeployment - Targets"

  10. Select the JMS Server (as created by the user).
  11. Click the Finish button.
    FCUBS subdeployment is displayed in the Settings for FCUBS_SystemModule screen.

    Figure 8-53 FCUBS Subdeployment


    Description of Figure 8-53 follows
    Description of "Figure 8-53 FCUBS Subdeployment"

  12. Click the Activate Changes button under Change Center. The message All the changes have been activated. No restarts are necessary is displayed.
    Settings for FCUBS_SystemModule - Messages tab is displayed.

    Figure 8-54 Settings for FCUBS_SystemModule - Messages


    Description of Figure 8-54 follows
    Description of "Figure 8-54 Settings for FCUBS_SystemModule - Messages"

Subdeployment is created.
