JMS Modules Creation

This topic explains the systematic instructions to create the JMS Modules in the Weblogic application server.

To create the JMS Modules, follow the steps given below:
  1. Start the Administrative Console of the WebLogic application server. Enter the Oracle WebLogic Admin Console URL in the address bar in an internet browser.
    Oracle Weblogic Server - Welcome screen is displayed.

    Figure 8-38 Oracle Weblogic Server - Welcome


    Description of Figure 8-38 follows
    Description of "Figure 8-38 Oracle Weblogic Server - Welcome"

  2. Specify the WebLogic Administrator Username and Password.
    Click Log In.
  3. Navigate to Oracle Weblogic home page.
    Oracle Weblogic Server - Home Page screen is displayed.

    Figure 8-39 Oracle Weblogic Server - Home Page


    Description of Figure 8-39 follows
    Description of "Figure 8-39 Oracle Weblogic Server - Home Page"

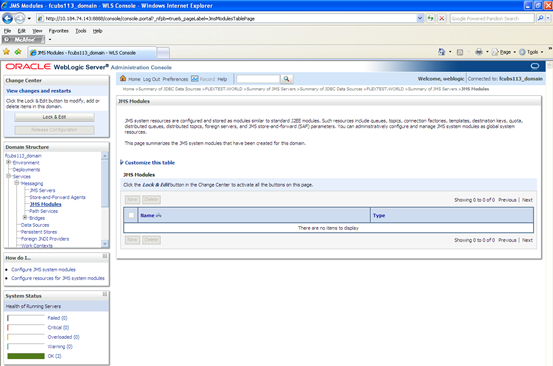

  4. On the left pane, under Domain Structure, expand Services, Messaging and JMS Modules under it.
    JMS Modules screen is displayed.

    Figure 8-40 JMS Modules


    Description of Figure 8-40 follows
    Description of "Figure 8-40 JMS Modules"

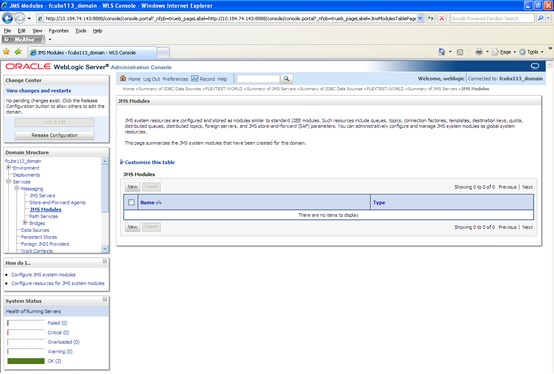

  5. To create new JMS Module, click the Lock & Edit button under the Change Center.
    JMS Modules - Change Center screen is displayed.

    Figure 8-41 JMS Modules - Change Center


    Description of Figure 8-41 follows
    Description of "Figure 8-41 JMS Modules - Change Center"

  6. On the JMS Modules screen, click New.
    Create JMS System Module screen is displayed.

    Figure 8-42 Create JMS System Module


    Description of Figure 8-42 follows
    Description of "Figure 8-42 Create JMS System Module"

  7. On Create JMS System Module screen, specify the fields.

    Table 8-5 Create JMS System Module

    Field Description
    Name Enter the System Module Name as FCUBS_SystemModule.
    Description File Name Enter the Description File Name as FCUBS_SystemModule.
  8. Click Next.
    Create JMS System Module - Targets screen is displayed.

    Figure 8-43 Create JMS System Module - Targets


    Description of Figure 8-43 follows
    Description of "Figure 8-43 Create JMS System Module - Targets"

  9. Check the box against the server created and click Next.
    Create JMS System Module - Add Resources screen is displayed.

    Figure 8-44 Create JMS System Module - Add Resources


    Description of Figure 8-44 follows
    Description of "Figure 8-44 Create JMS System Module - Add Resources"

  10. Click on Finish button.
    JMS Modules - New screen is displayed.

    Figure 8-45 JMS Modules - New


    Description of Figure 8-45 follows
    Description of "Figure 8-45 JMS Modules - New"

  11. Click the Activate Changes button under Change Center. The message All the changes have been activated. No restarts are necessary is displayed.
    JMS Modules - Activate Changes screen displays.
    Description of jms-modules-ativate-changes.jpg follows
    Description of the illustration jms-modules-ativate-changes.jpg

The JMS Module is created.

Parent topic: Resource Administration
