7.3 Align Items (align-items)

This topic provides information on Align Items (align-items).

Controls alignment along the cross axis

CSS Equivalent:

align-items: flex-start | center | flex-end | stretch;

Figma Concept:

Aligns children perpendicular to the Auto Layout direction.

How to Set in Figma:

  1. Select the Auto Layout frame
  2. Use the Alignment Grid (3x3 dot grid) in the design panel
  3. Mapping:
    1. For Horizontal (→) direction:
      1. Top → flex-start
      2. Center → center
      3. Bottom → flex-end
    2. For Vertical (↓) direction:
      1. Left → flex-start
      2. Center → center
      3. Right → flex-end

Note:

Stretch behaviour – If children are set to Fill container, the behave like align-items: stretch

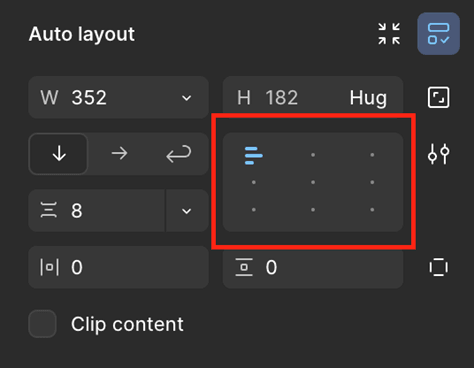

Figure 7-4 Align Items (align-items)
