Undeploying Plug-Ins

This section explains the following:

Undeploying Plug-Ins from Oracle Management Service

To undeploy plug-ins from the OMS, follow the steps:

  1. First, undeploy all plug-ins from all Management Agents. To do so, follow the steps mentioned in Undeploying Plug-Ins from Oracle Management Agent.
  2. From the Setup menu, select Extensibility, then select Plug-ins.
  3. On the Plug-ins page, select the plug-in you want to undeploy, and from the Actions menu, select Undeploy From, then select Management Servers.
  4. In the Undeploy Plug-in From Management Server dialog, enter the Management Repository admin user and password, click Continue, and then click Undeploy.
    SYS is the default Management Repository admin user.

    Note:

    Starting with Enterprise Manager 13c Release 5 Update 15 or higher, you can undeploy plug-ins using a non-SYS user as the Management Repository admin user, if preferred. In this case, you need to enter the credentials of the non-SYS admin user.

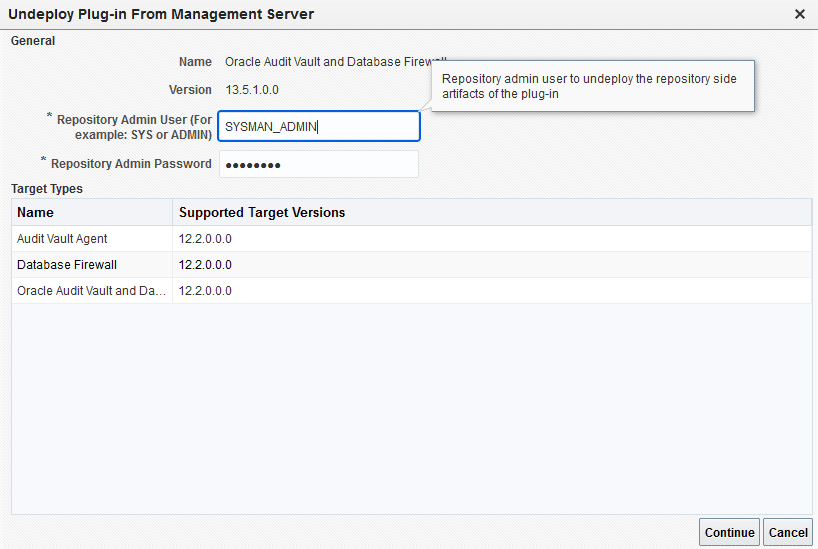

    The below screenshot shows an example using a non-SYS admin user named SYSMAN_ADMIN.Undeploy plug-in

  5. On the Confirmation dialog, click Close.

    To monitor the undeployment operation, click Show Status.

To undeploy a plug-in in EM CLI, use the following command:

$emcli undeploy_plugin_from_server

-plugin="plug-inId"

[-sys_password="sys_password"]

[-dbUser="dbUser"]

[-dbPassword="dbPassword"]

For example:

$emcli undeploy_plugin_from_server -plugin="oracle.sysman.empa" -sys_password="sys_password"

Note:

  • SYS is the default Management Repository admin user.

    Starting with Enterprise Manager 13c Release 5 Update 15 or higher, you can undeploy plug-ins using a non-SYS user as the Management Repository admin user. In this case, you need to provide the credentials of the non-SYS admin user using the arguments: -dbUser and -dbPassword. If the -dbPassword argument is not provided, it will be prompted when -dbUser is passed.

    Once a lifecycle management operation, such as patching, plug-in deployment or undeployment, is performed using a non-SYS user, you cannot use the SYS user to undeploy plug-ins anymore.

  • When a metadata plug-in is undeployed/redeployed, it is recommended that you run the following command. The command should be run in each OMS environment instance.
    $emcli metric_control -command=flush_metadata_cache

    If you want to undeploy only the plug-ins from the OMS, and not the entire Enterprise Manager system, then use the Plug-ins page within the Enterprise Manager console. Do NOT use runInstaller to undeploy only the plug-ins.

Undeploying Plug-Ins from Oracle Management Agent

To undeploy plug-ins from the Management Agent, follow the steps below:

Note:

  • These steps are applicable for obsolete and deprecated plug-ins as well.

  • Undeploying a plug-in from Management Agent removes all the targets that were monitored by the plug-in.

  • Undeployment of a plug-in from the Management Agent restarts the Management Agent. The Management Agent does not monitor any target during downtime.

  1. From the Setup menu, select Extensibility, then select Plug-ins.
  2. On the Plug-ins page, select the plug-in you want to undeploy, and from the Actions menu, select Undeploy From, then select Management Agent.
  3. In the Undeploy Plug-in From Management Agent dialog, click Add and add the Management Agents from which you want to undeploy the plug-in. Click Continue. Then click Undeploy.
  4. On the Confirmation dialog, click Close.

    To monitor the undeployment operation, click Show Status.

Note:

Undeploying a plug-in from Management Agent removes all the targets that were monitored by the plug-in.

Undeployment of a plug-in from the Management Agent restarts the Management Agent. The Management Agent does not monitor any target during downtime.

To undeploy a plug-in using EM CLI, use the following command:

$emcli undeploy_plugin_from_agent

-plugin="pluginId"

{-agent_names="agent1[;agent2...]" | -all_discovery_only_agents}

To undeploy all versions of oracle.sysman.db2 plug-ins from all Management Agents where only Discovery Plug-ins are deployed, use the following command:

$emcli undeploy_plugin_from_agent -plugin=oracle.sysman.db2 -all_discovery_only_agents
