3.12.17 Extreme Flash Exadata Storage Server X5-2 Images

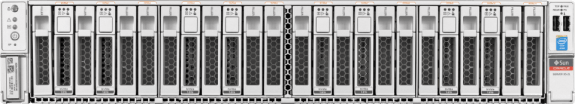

The following image shows the front view of Extreme Flash Exadata Storage Server X5-2 Servers.

Figure 3-33 Front View of Extreme Flash Exadata Storage Server X5-2 Servers

Description of Figure 3-33 follows
Description of "Figure 3-33 Front View of Extreme Flash Exadata Storage Server X5-2 Servers"

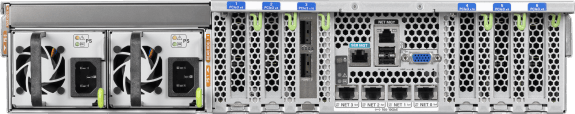

The following image shows the rear view of Extreme Flash Exadata Storage Server X5-2 Servers.

Figure 3-34 Rear View of Extreme Flash Exadata Storage Server X5-2 Servers

Description of Figure 3-34 follows
Description of "Figure 3-34 Rear View of Extreme Flash Exadata Storage Server X5-2 Servers"

Parent topic: Exadata Storage Server Images
