3.12.16 High Capacity Exadata Storage Server X5-2 Images

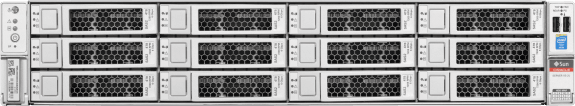

The following image shows the front view of High Capacity Exadata Storage Server X5-2 Servers.

Figure 3-31 Front View of High Capacity Exadata Storage Server X5-2 Servers

Description of Figure 3-31 follows
Description of "Figure 3-31 Front View of High Capacity Exadata Storage Server X5-2 Servers"

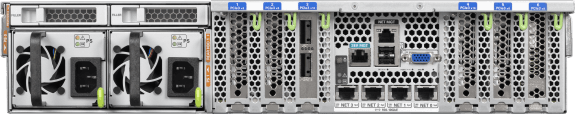

The following image shows the rear view of High Capacity Exadata Storage Server X5-2 Servers.

Figure 3-32 Rear View of High Capacity Exadata Storage Server X5-2 Servers

Description of Figure 3-32 follows
Description of "Figure 3-32 Rear View of High Capacity Exadata Storage Server X5-2 Servers"
