3.12.18 Exadata Storage Server X4-2L Images

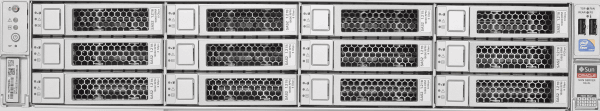

The following image shows the front view of Exadata Storage Server X4-2L Servers. The hard drives are numbered from left to right, starting in the lower left. The drives in the bottom row are numbers 0, 1, 2, and 3. The drives in the middle row are numbers 4, 5, 6, and 7. The drives in the top row are numbers 8, 9, 10, and 11.
Figure 3-35 Front View of Exadata Storage Server X4-2L Servers
Description of "Figure 3-35 Front View of Exadata Storage Server X4-2L Servers"

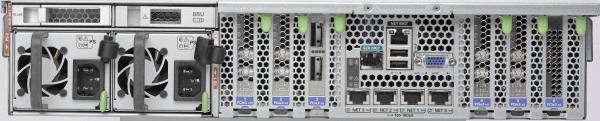

The following image shows the rear view of Exadata Storage Server X4-2L Servers.
Figure 3-36 Rear View of Exadata Storage Server X4-2L Servers
Description of "Figure 3-36 Rear View of Exadata Storage Server X4-2L Servers"
