For this use case, the task is to train a Support Vector Machine model that predicts which customers most likely to be positive responders to an Affinity Card loyalty program. Therefore, the target variable is the attribute AFFINITY_CARD.

To access database data from R using OML4R, you must first create an ore.frame proxy object in R that represents a database table, view, or query. In this example, the proxy object is created using a query. Create proxy objects for SUPPLEMENTARY_DEMOGRAPHICS and then assess the data to identify data types and noise in the data. Look for missing values, outlier numeric values, or inconsistently labeled categorical values.

For data preparation and understanding run the following steps:

1. Run the following command in an R interpreter paragraph (using %r) to import the Oracle Machine Learning for R libraries and to suppress warning regarding row ordering:

   library(ORE)
   options(ore.warn.order=FALSE)

2. Use the ore.sync function to create the ore.frame object that is a proxy for the SUPPLEMENTARY DEMOGRAPHICS table in the SH schema database table.

   ore.sync(query = c("SUP_DEM" = "select * from SH.SUPPLEMENTARY_DEMOGRAPHICS"))
   ore.attach()

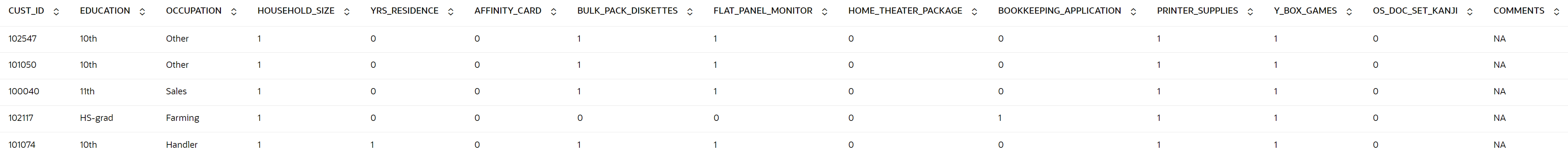

3. Run the following command to display few rows from SUPPLEMENTARY_DEMOGRAPHICS table

   z.show(head(SUP_DEM))






4. To display the number of rows and columns in the ore.frame object SUPPLEMENTARY_DEMOGRAPHICS, use z.show(dim(SUP_DEM))

   z.show(dim(SUP_DEM))

   (4500, 14)

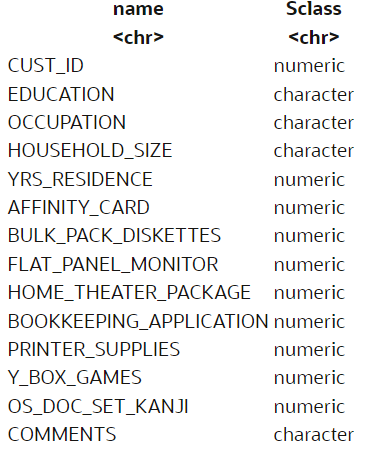

5. View the data type of the columns in CUST_DF with the @desc operator.

   SUP_DEM@desc






6. Run the following command to check if there are any missing values in the data. The following code gives you the total number of missing values in the CUST_DF proxy object.

   sum(is.na(SUP_DEM))

   205

   The value 205 indicates that there are missing values in the SUP_DEM proxy object.

   OML supports Automatic Data Preparation (ADP). ADP is enabled through the model settings. When ADP is enabled, the transformations required by the algorithm are performed automatically and embedded in the model. You can enable ADP during the Build Model stage. The commonly used methods of data preparation are binning, normalization, and missing value treatment.

   See How ADP Transforms the Data to understand how ADP prepares the data for some algorithms.

This completes the data understanding and data preparation stage.

Algorithm Selection

You can choose one of the following in-database algorithms to solve a classification problem:

• Decision Tree
• Generalized Linear Model
• Naive Bayes
• Neural Network
• Random Forest
• Support Vector Machine

Here you will be using the Support Vector Machine algorithms because the SVM classification is one of the algorithms that supports binary classification.

1. Split the data into train and test data sets. The train set is used to train the model so that it learns the hidden patterns and the test set is used to evaluate the trained model. Split the DEMO_DF data with 60 percent of the records for the train data set and 40 percent for the test data set.

   sampleSize <- .4 * nrow(DEMO_DF)
   index <- sample(1:nrow(DEMO_DF),sampleSize)
   group <- as.integer(1:nrow(DEMO_DF) %in% index)

   rownames(DEMO_DF) <- DEMO_DF$CUST_ID
   DEMO_DF.train <- DEMO_DF[group==FALSE,]
   class(DEMO_DF.train)

   DEMO_DF.test <- DEMO_DF[group==TRUE,]
   class(DEMO_DF.test)

   'ore.frame'
   'ore.frame'

2. After splitting the data, let's see the count of rows in train and test to see if any rows are left out in either of the datasets.

   cat("\nTraining data: ")
   dim(DEMO_DF.train)
   cat("\nTest data: ")
   dim(DEMO_DF.test)


     Training data:  2700 13
     Test data: 1800 13

3. Build your model using the ore.odmSVM function, which creates a Support Vector Machine model using the training data. The ore.odmSVM function is the R interface to the in-database SVM algorithm. Then we will make the prediction using this model for our test data.

   ore.exec(
     "BEGIN DBMS_DATA_MINING.DROP_MODEL(model_name => 'SVM_CLASSIFICATION_MODEL');
      EXCEPTION WHEN OTHERS THEN NULL; END;"
   )

   MOD <- ore.odmSVM(
     formula = AFFINITY_CARD ~ .,
     data = DEMO_DF.train,
     type = "classification",
     kernel.function = "system.determined",
     odm.settings = list(model_name = "SVM_CLASSIFICATION_MODEL")
   )

   RES <- predict(
     object = MOD,
     data = DEMO_DF.test,
     type = c("raw", "class"),
     norm.votes = TRUE,
     cache.model = TRUE,
     supplemental.cols = c(
       "CUST_ID", "AFFINITY_CARD", "EDUCATION",
       "HOUSEHOLD_SIZE", "OCCUPATION", "YRS_RESIDENCE"
     )
   )

Show Model Accuracy

To check the accuracy of our model, we use a confusion matrix. The confusion matrix is a table that shows the correct model predictions and incorrect predictions for each class. After creating the confusion matrix, the code calculates the accuracy of the model by dividing the number of correct predictions by the total number of predictions.

CMATRIX <- with(RES, table(AFFINITY_CARD, PREDICTION))

CMATRIX

              PREDICTION
AFFINITY_CARD    0    1
            0 1206  145
            1  180  269

To show the model accuracy, run the following statements:

ACCURACY <- CMATRIX / sum(CMATRIX)
round(sum(diag(ACCURACY)),3)*100

83.6

The result of the confusion matrix shows that the accuracy on the test set is 83.6%

Show Prediction Results

Here you will display the prediction results.

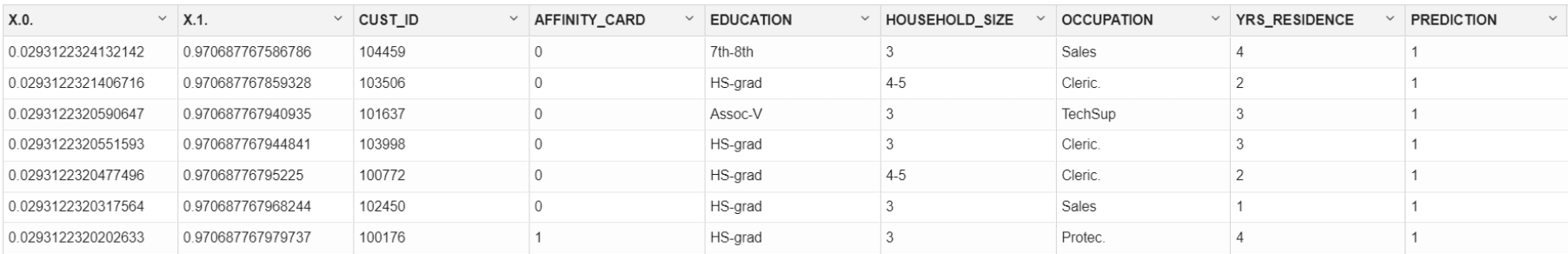

1. To display the prediction results, run the following code:

   z.show(ore.sort(RES[(RES$"'1'" > 0.5),], by = c("'1'")))

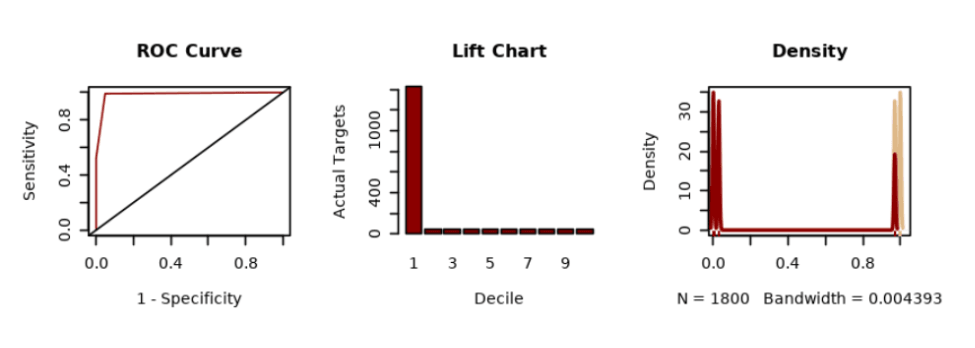

2. To display the prediction result using ROC Curve, Lift Chart, and Distribution Chart, run the following code:

   # BAR PLOT
   res <- ore.pull(RES)
   sensitivity <- res[order(res$"'1'",decreasing = TRUE), ]
   sens <- sum(sensitivity$"'0'")/sum(sensitivity$"'0'") - cumsum(sensitivity$"'0'")/sum(sensitivity$"'0'")
   spec <- cumsum(sensitivity$"'1'")/sum(sensitivity$"'1'")

   # LIFT CHART
   decile2 <- quantile(sensitivity$"'1'", probs = seq(.1, .9, by = .1))
   df_sens <- as.data.frame(sensitivity$"'1'", col.names = c("sens"))
   df_sens$decile = as.numeric(cut(1-cumsum(df_sens$sens), breaks=10))


   # DISTRIBUTION CHART
   dx <- density(res$"'0'")
   dx2 <- density(res$"'1'")

   # PLOTS 3x1
   par(mfrow=c(3,3))
   plot(1 - spec, sens, type = "l", col = "darkred", ylab = "Sensitivity", xlab = "1 - Specificity", main = 'ROC Curve')
   abline(c(0,0),c(1,1))
   paste("AUC: ", round(sum(spec*diff(c(0, 1 - sens))),3))

   barplot(table(df_sens$decile), xlab = 'Decile', ylab = 'Actual Targets', main = 'Lift Chart', col = "darkred")

   plot(dx, lwd = 2, col = "burlywood",
        main = "Density")
   lines(dx2, lwd = 2, col = "darkred")
   # Add the data-poins with noise in the X-axis
   rug(jitter(res$"'0'"),col='burlywood')
   rug(jitter(res$"'1'"),col='darkred')







Using the SVM Model in SQL

To facilitate this, you will create a SQL table, SVM_TEST_TABLE, mirroring the structure of your R data frame, DEMO_DF. This will allow you to seamlessly integrate the model's predictions into your database work flows. To use the trained SVM model into your SQL environment, follow the steps below:

• Create a table that mirrors the structure of your R data frame, enabling seamless prediction workflows within the database.

  Note:

  The data provided to the model through SQL queries must be prepared in the same manner as the data used to build the model in R.

  ore.drop(table = "SVM_TEST_TABLE")
  ore.create(DEMO_DF, table ="SVM_TEST_TABLE")

• Use the SQL Interface to score data and display the prediction results.

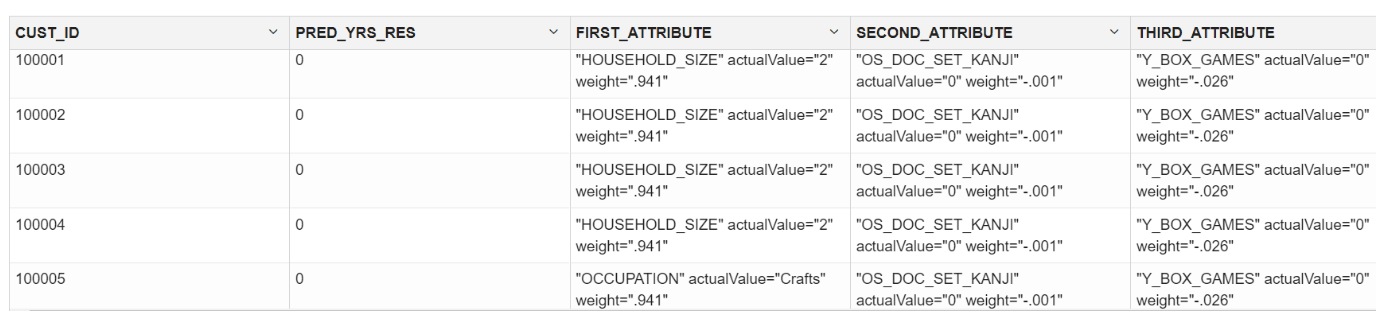

  SELECT CUST_ID,
      round(PREDICTION_YRS_RES,3) PRED_YRS_RES,
      RTRIM(TRIM(SUBSTR(OUTPRED."Attribute1",17,100)),'rank="1"/>') FIRST_ATTRIBUTE,
      RTRIM(TRIM(SUBSTR(OUTPRED."Attribute2",17,100)),'rank="2"/>') SECOND_ATTRIBUTE,
      RTRIM(TRIM(SUBSTR(OUTPRED."Attribute3",17,100)),'rank="3"/>') THIRD_ATTRIBUTE
  FROM (SELECT CUST_ID,
               PREDICTION(SVM_CLASSIFICATION_MODEL USING *) PREDICTION_YRS_RES,
               PREDICTION_DETAILS(SVM_CLASSIFICATION_MODEL USING *) PD
        FROM SVM_TEST_TABLE
        WHERE CUST_ID < 100015
        ORDER BY CUST_ID) OUT,
                 XMLTABLE('/Details'
                          PASSING OUT.PD
                          COLUMNS
                          "Attribute1" XMLType PATH 'Attribute[1]',
                          "Attribute2" XMLType PATH 'Attribute[2]',
                          "Attribute3" XMLType PATH 'Attribute[3]')  OUTPRED







  The SQL code demonstrates how to deploy and use a trained SVM classification model (SVM_CLASSIFICATION_MODEL) within a database environment. It showcases the process of scoring new data, extracting predicted values (PREDICTION_YRS_RES), and retrieving relevant attributes (FIRST_ATTRIBUTE, SECOND_ATTRIBUTE, THIRD_ATTRIBUTE) using the PREDICTION_DETAILS function.

Using the SVM Model in R

You can also make predictions and obtain prediction details directly from R using the following code:

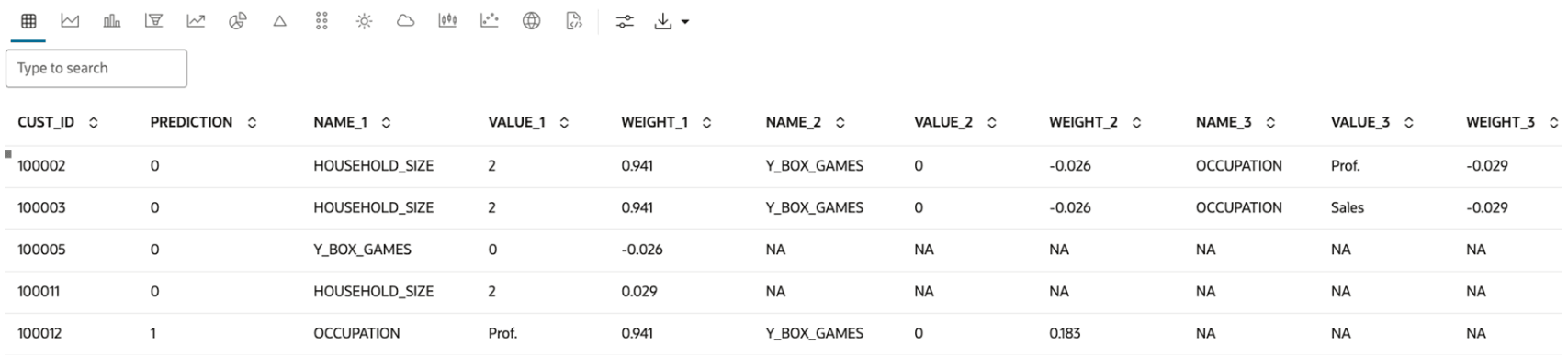

z.show(predict(
    object = MOD,
    newdata = DEMO_DF.test,
    supplemental.cols = c("CUST_ID"),
    topN.attrs = 3
  )
)

The output appears as follows:

Deploying the Model to Other Databases or OML Services

To deploy the model to other databases or OML Services, follow these steps:

• Export the Model:
  • Use the DBMS_DATA_MINING.EXPORT_SERMODEL procedure to export the model to a BLOB object.
  • Save the BLOB object to a file or another storage location.
• Import the Model into Another Database:
  • In the target database, use DBMS_DATA_MINING.IMPORT_SERMODEL to import the model from the BLOB object.
• Deploy the Model to OML Services:
  • Use the OML REST API to upload the model and create a REST endpoint for scoring. Refer to the OML Services documentation for specific instructions.

For more information, see DBMS_DATA_MINING Package and OML Services Documentation.

This use case identified customers most likely to be positive responders to an Affinity Card loyalty program using a Support Vector Machine (SVM) classification model. Thus, the model can be used to predict which customers are likely to become high-value customers with the Affinity Card program, allowing the store to focus their marketing resources more effectively.
