Sample Flows with Agent Builder

Use Agent Builder to leverage enterprise data for agentic use cases and to build custom flows.

From the left sidebar, navigate to Agent Builder or My Custom Flows to create custom workflows.

See Agent Builder Components to learn about the components available in Agent Builder.

Sample Workflows

Explore our sample workflows and discover real-world business use cases designed to help you get started quickly from beginner-friendly examples to advanced, power-user scenarios.

1. Generate product pitch - Beginner Level

Already present in Template Gallery - Click on Import Flow to test it out.

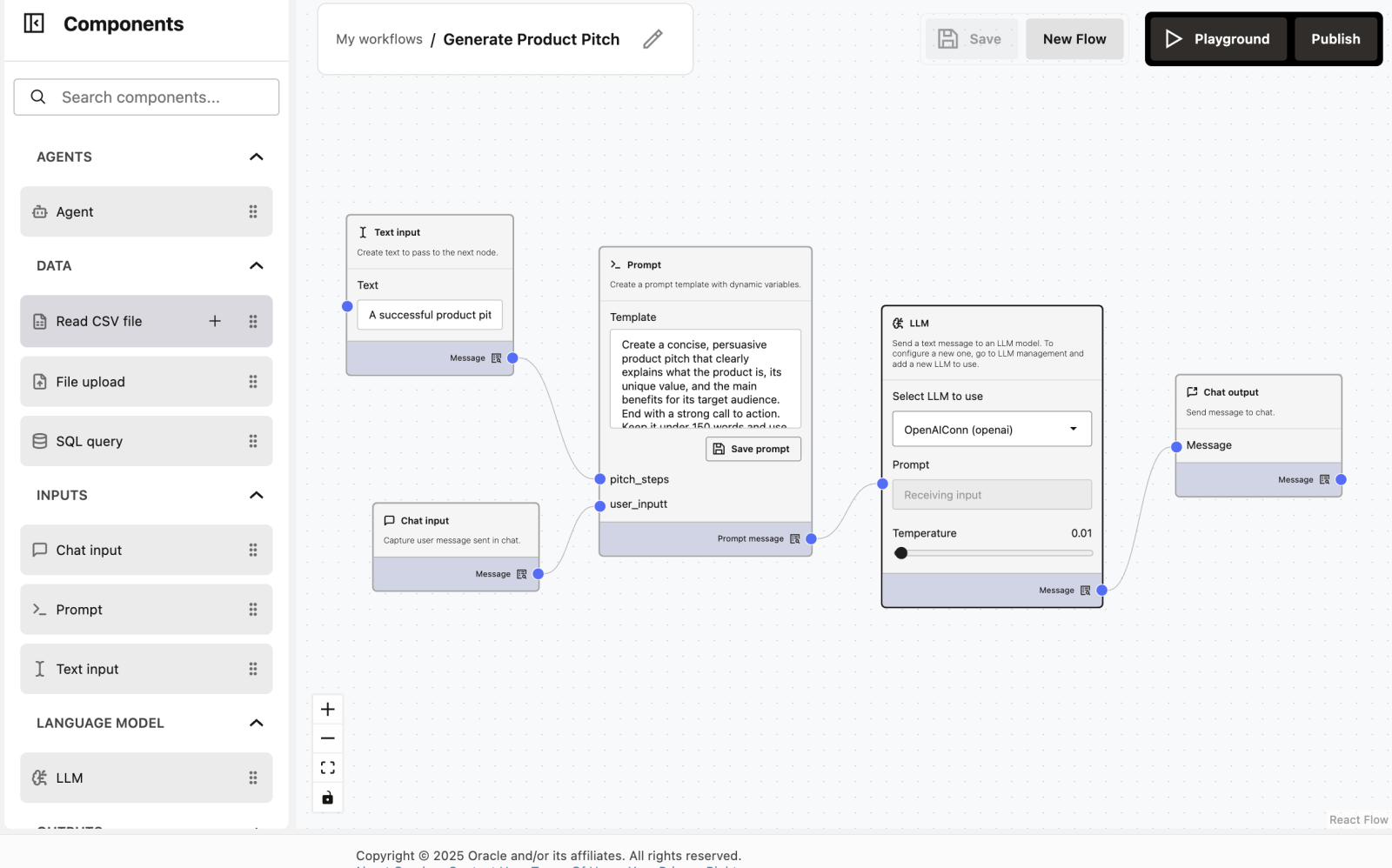

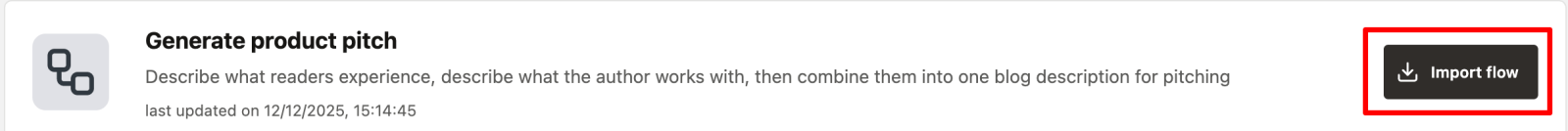

Generate Product Pitch Import Generate Product Pitch Sample

What does this workflow do?

This workflow generates a short, persuasive product pitch using an LLM. You can edit the prompt or input text and instantly see how the output changes.

It’s designed to help beginners understand:

Workflow Overview

The workflow has 5 simple nodes, connected from left to right:

Each node performs one clear task.

How to Build This Workflow (Drag & Drop)

This workflow is created using drag-and-drop, without writing any code.

Step 1: Open the Node Sidebar

On the left side of the screen, you will see a sidebar containing different nodes. Each node represents a specific function (Input, Prompt, LLM, Output, etc.).

Step 2: Drag a Node to the Workflow Canvas
  1. Click and hold a node from the left sidebar
  2. Drag it to the empty workflow area (canvas)
  3. Release the mouse button to drop it
  4. The node will now appear on the workflow sheet
Step 3: Add Required Nodes

Repeat the drag-and-drop action to add the following nodes:

Arrange them roughly from left to right for better readability.

Step 4: Connect the Nodes

Each node has small blue connection points (ports).

  1. Click on a blue dot of one node
  2. Drag the line to the blue dot of the next node
  3. Release to connect them

This defines how data flows through the workflow.

Step 5: Configure the Nodes

Click on any node to open its settings.

Enter text in:

Select a model in the LLM node.

Step 6: Save, Run on Playground and Observe Output

Node-by-Node Explanation

1. Text Input

Purpose: Provides a default topic for the product pitch.

Example value:

A successful product pitch clearly communicates what the product is, why it matters, and why the audience should care. It typically includes three core elements: The Hook – a compelling opening that grabs attention and highlights the problem or opportunity. The Value Proposition – a clear explanation of how the product solves the problem, what makes it unique, and the benefits it delivers. The Call to Action – a persuasive closing that tells the audience what to do next, such as investing, purchasing, or partnering. A strong pitch is concise, audience‑focused, and backed by evidence or examples that make the message memorable.
2. Chat Input

Purpose: Allows you to type custom input at runtime.

Why this is useful: You can describe any product you want (app, service, startup idea).

Example input:

An AI app that helps students manage study time
3. Prompt Template

Purpose: Defines how the AI should generate the product pitch.

What it does:

Example prompt:

Create a concise, persuasive product pitch that clearly explains what the product is, its unique value, and the main benefits for its target audience. End with a strong call to action. Keep it under 150 words and use a professional, engaging tone.

Product Pitch workflow:
{{pitch_steps}}

User input – Product description or idea:
{{user_input}}

If no product description is provided, please enter one so the pitch can be created accurately.

You can edit this prompt to:

4. LLM Node

Purpose: Sends the final prompt to the language model.

Model used in the example: OpenAIConn (openAI)

Settings:

Temperature: 0.01

5. Chat Output

Purpose: Displays the generated product pitch to the user.

This is where the final product pitch appears.

Generate Product Pitch Result

2. On Demand Email Sender - Beginner Level

Already present in Template Gallery - Click on Import Flow to test it out.

An agent that can take your requests for drafting an Email, consume the recipients from the conversation and send the Email on demand to the recipients.

Note: In order to send the emails you need to setup SMTP Configuration. See Configure SMTP

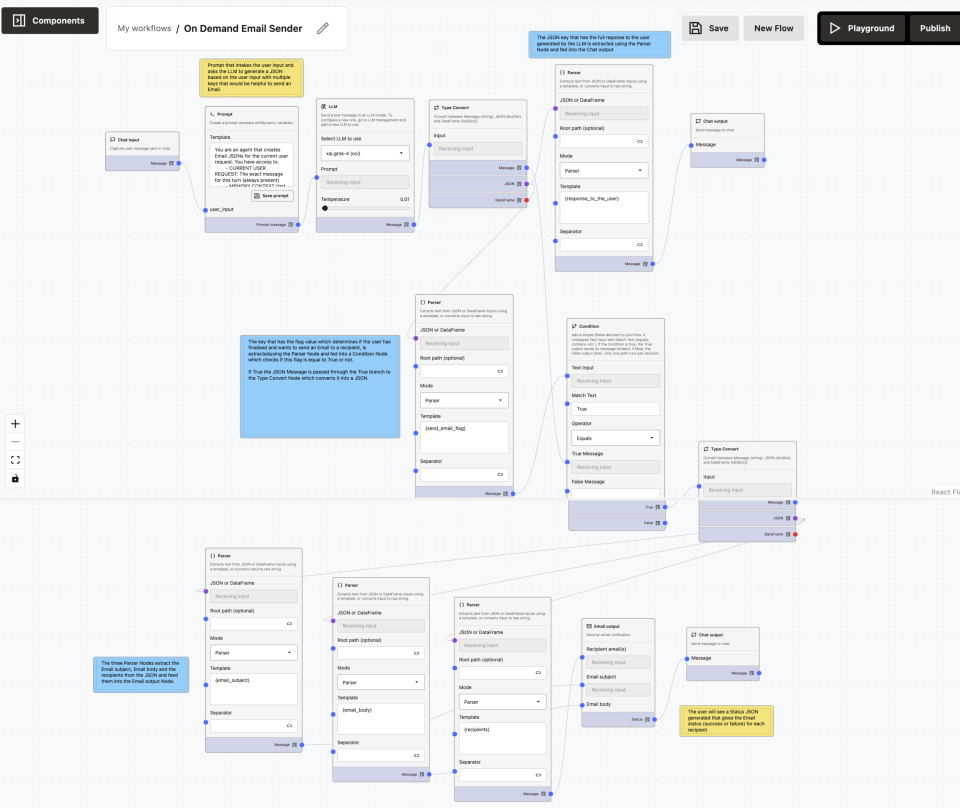

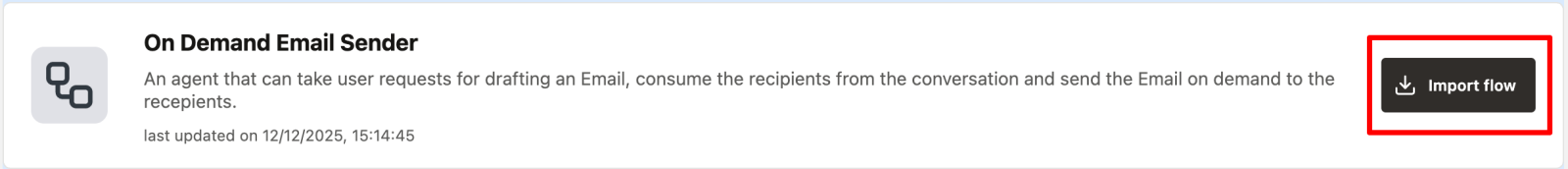

On Demand Email Import On Demand Email Sample

The On-Demand Email Sender workflow enables you to:

Node-by-Node Documentation

Chat Input Node

Purpose: Captures your natural language request.

Sample Input:

My name is abc. Send an email to my manager "xyz" having email "xyz@oracle.com", regarding the tasks I completed in my current project. 1. Testing 2. Documentation
Prompt Node (Decision & Structuring)

Prompt:

You are an agent that generates structured Email JSONs for sending emails.

You have access to:
- CURRENT USER REQUEST (always present)
- MEMORY CONTEXT (last 10 messages, optional)

Use CURRENT USER REQUEST as the primary source of truth.
Use MEMORY CONTEXT only if needed.
Do NOT ask follow-up questions unless required to send the email.
If information is missing, leave fields as empty strings.
Do NOT fabricate recipients, subject, or content.

----------------------------------
DECISION RULES (VERY IMPORTANT)
----------------------------------

1. Determine whether the user intends to SEND an email in THIS request.

Set "send_email_flag" to true ONLY IF ALL of the following are true:
- The user clearly expresses intent to send an email (e.g. "send", "email", "mail this")
- At least one valid recipient email address is present

Otherwise, set "send_email_flag" to false.

2. If send_email_flag is false:
- Use "response_to_the_user" to explain what is missing (recipient, content, or intent)
- Include a drafted email preview if possible

----------------------------------
FIELD RULES
----------------------------------

response_to_the_user:
- A clear, user-friendly message
- Include the drafted email (subject + body) if available
- If recipients are missing, ask for recipient email addresses
- Do NOT mention JSON, parsing, flags, or technical details

recipients:
- Extract email addresses from CURRENT USER REQUEST first
- If none, check MEMORY CONTEXT
- Format: comma-separated, lowercase, unique
- Empty string if none available

email_subject:
- A concise subject derived from the request
- Empty string if not inferable

email_body:
- HTML snippet only (use <p>, <br>)
- Do NOT include <html>, <body>, or markdown

send_email_flag:
- true ONLY when intent + recipients are present
- false otherwise

----------------------------------
OUTPUT RULES
----------------------------------

- Output ONLY valid JSON
- Use double quotes for all strings
- No markdown, no explanation, no text outside JSON

----------------------------------
OUTPUT FORMAT
----------------------------------

{
  "response_to_the_user": "...",
  "recipients": "...",
  "email_subject": "...",
  "email_body": "...",
  "send_email_flag": true | false
}

----------------------------------
CURRENT USER REQUEST:
{{user_input}}
LLM Node

Generates the final structured Email JSON.

Type Converter

Converts the LLM’s JSON string into structured JSON.

Parser: response_to_the_user

Extracts the user-visible response.

Chat Output (Preview / Guidance)

Shows the drafted email or explains why sending cannot occur.

Parser: send_email_flag

Extracts the boolean decision that controls execution.

Condition Node

Controls whether the email is actually sent.

Type Converter (True Branch)

Ensures clean structured data before parsing email fields.

Parser: recipients

Extracts recipient email addresses.

Parser: email_subject

Extracts the email subject.

Parser: email_body

Extracts the email body.

Email Output Node

Sends the actual email.

Chat Output (Delivery Status)

Shows the user the result of the email operation.

On Demand Email Result

3. Workflow using REST APIs - Intermediate Level

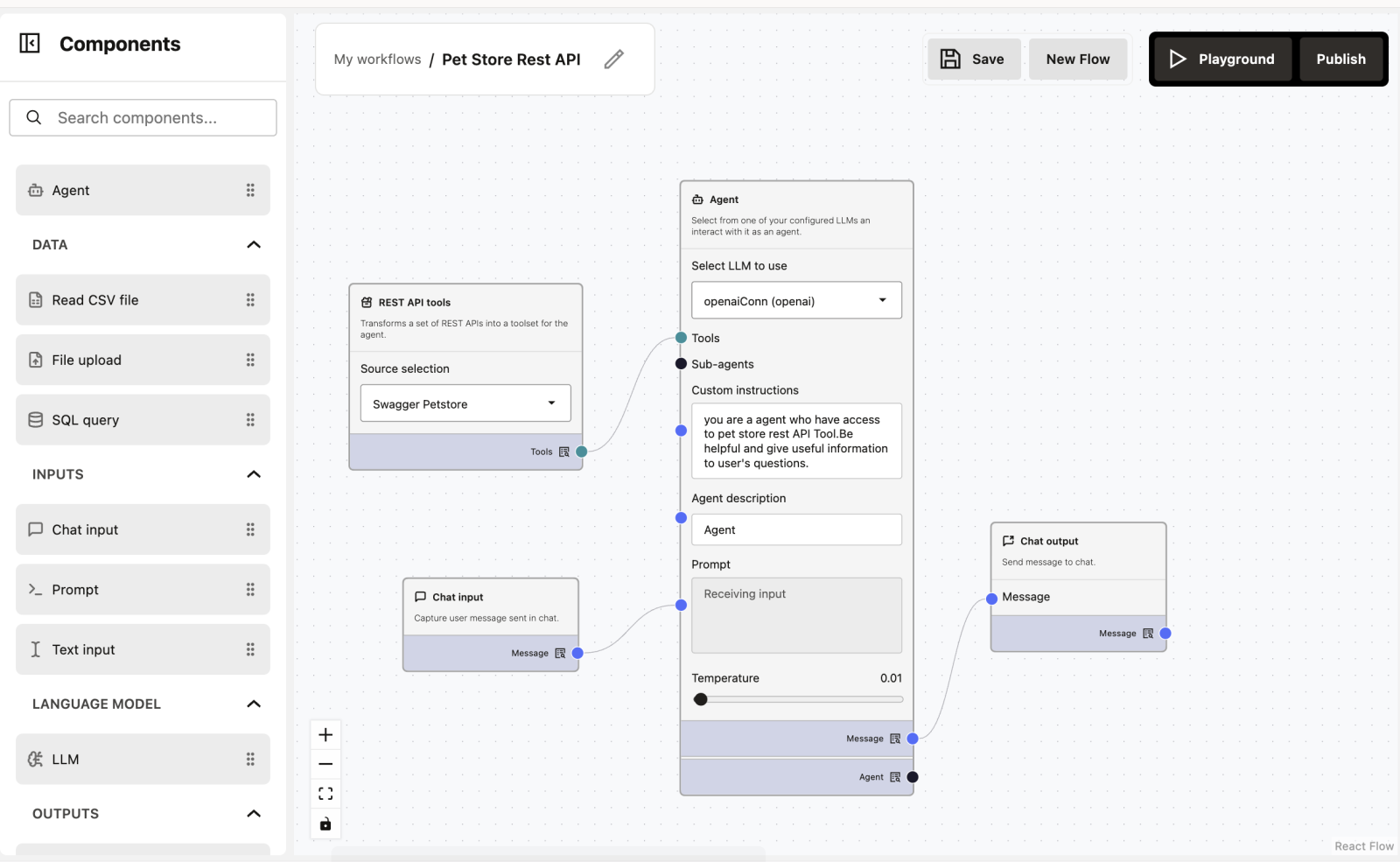

Workflow with REST APIs

What does this workflow do?

You can ask questions in plain English (like “Show me available pets”), and the Agent finds the data using a connection to a Pet Store system.

Workflow Overview

The workflow has 4 simple nodes:

  1. REST API tools (The Data Source)
  2. Chat Input (The User Question)
  3. Agent (The Brain)
  4. Chat Output (The Answer)

How to Build This Workflow (Drag & Drop)

This workflow is created using drag-and-drop, without writing any code.

Step 1: Open the Node Sidebar

On the left side of the screen, you will see a sidebar containing different nodes.

Step 2: Drag a Node to the Workflow Canvas
Step 3: Add Required Nodes

Repeat the drag-and-drop action to add the following nodes:

Step 4: Connect the Nodes

Each node has small blue connection points (ports). Connect them in this order:

  1. Connect REST API tools → to the Tools dot on the Agent
  2. Connect Chat Input → to the Prompt dot on the Agent
  3. Connect the Agent → to the Chat Output
Step 5: Configure the Nodes
Step 6: Save, Run Playground and Observe Output

Node-by-Node Explanation

1. REST API Tools

Purpose: This acts as a “menu” of actions the Agent can perform.

Note: You can drag and drop REST API JSON in DataSources and it should be Open API compatible. See REST API Data Source.

2. Chat Input

Purpose: Allows the user to ask a question.

Why this is useful: You don’t need to know computer code to query the database. You just speak naturally.

Example user inputs:

Find the pet with ID 5
What pets are currently sold?
3. Agent

Purpose: It figures out what tool to use based on your question.

Custom Instructions:

You are an agent who has access to pet store REST API Tool. Be helpful and give useful information to user's questions.

How it works: If you ask “Show me sold pets,” the Agent looks at the API tools, finds the findPetsByStatus tool, runs it, reads the result, and tells you the answer.

4. Chat Output

Purpose: Displays the final answer from the Agent.

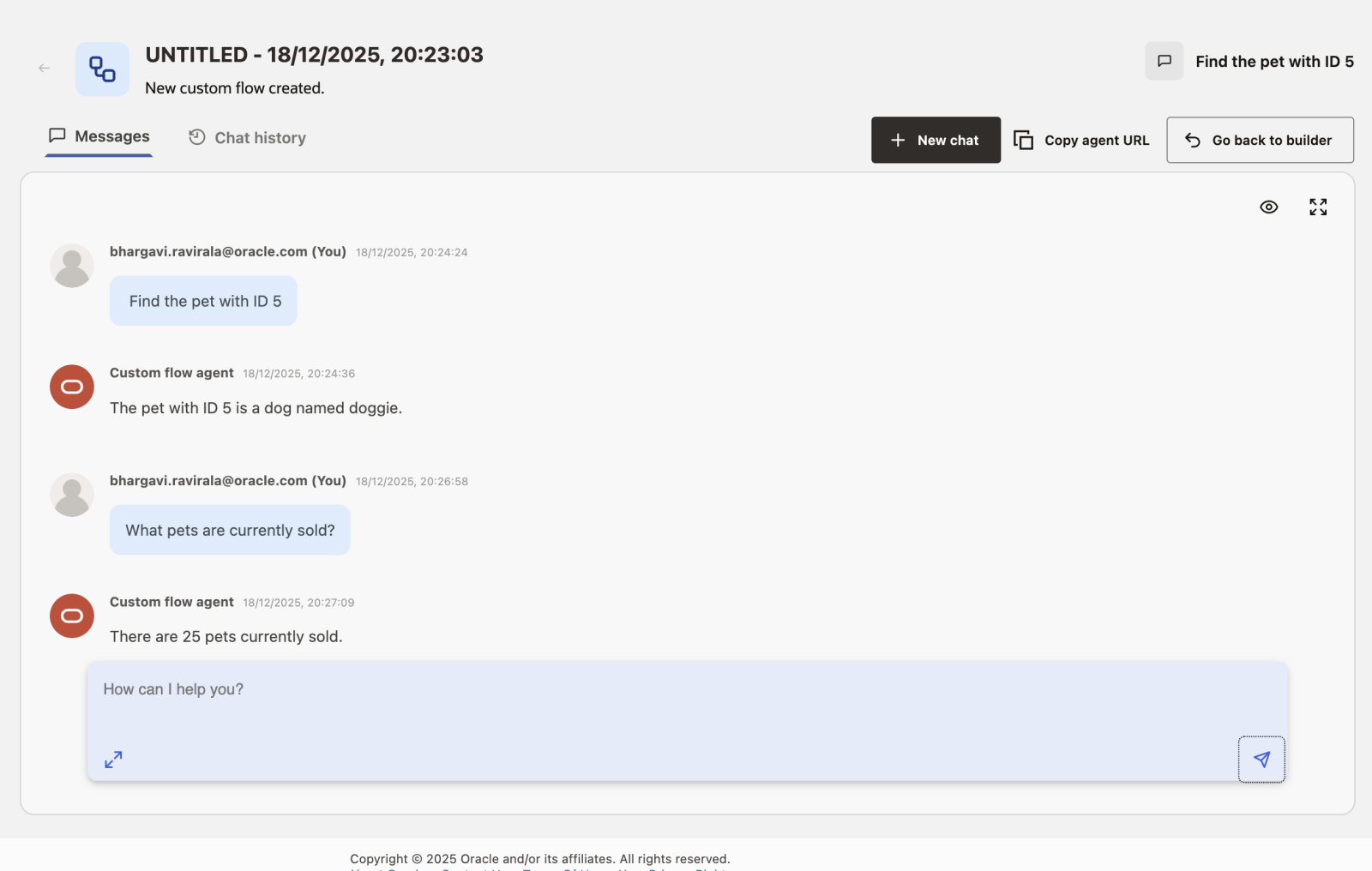

Example Result:

I found the following available pets: A dog named Doggie, a cat named Whiskers...

Workflow with REST APIs

4. Workflows using MCP servers - Intermediate Level

Workflow with MCPs

What is MCP

MCP (Model Context Protocol) is a standard that allows agents to discover and invoke external tools in a structured and safe way. An MCP Server exposes tools (functions) with clear input/output schemas so agents can use deterministic logic such as calculations, validations, or integrations with internal systems.

What is a Custom MCP Server Node

A Custom MCP Server node lets you connect an external MCP Server to Agent Builder so the agent can use the tools defined in that server.

Typical use cases:

What does this workflow do?

This workflow builds an Expert AI Wealth Manager (called “Portfolio Pilot”) that can track both Crypto and Stocks at the same time.

It’s designed to help you understand:

Workflow Overview

The workflow has 6 nodes working together:

  1. MCP Server (CoinGecko) – The Crypto Data Source
  2. MCP Server (Alpha Vantage) – The Stock Market Data Source
  3. Chat Input – The User Question
  4. Prompt – The Personality & Instructions
  5. Agent – The “Portfolio Pilot” Brain
  6. Chat Output – The Final Answer

How to Build This Workflow (Drag & Drop)

This workflow is created using drag-and-drop, without writing any code.

Step 1: Open the Node Sidebar

On the left side of the screen, open the sidebar to find your components.

Step 2: Add Required Nodes

Drag and drop the following nodes onto your canvas:

Step 3: Connect the Nodes

Follow the lines in the diagram to connect the dots:

  1. Connect Chat Input → to the user_input dot on the Prompt node
  2. Connect the Prompt node → to the Prompt dot on the Agent
  3. Connect MCP Server 1 (CoinGecko) → to the Tools dot on the Agent
  4. Connect MCP Server 2 (Alpha Vantage) → to the Tools dot on the Agent
  5. Connect the Agent → to the Chat Output
Step 4: Configure the Nodes
Step 5: Run Playground

Node-by-Node Explanation

1 & 2. MCP Servers (The Data Sources)

Purpose: These nodes act like live news tickers. They provide the raw data.

Why use MCP? It standardizes the connection. You don’t need to know how the CoinGecko API works; the MCP node handles the translation for you.

3. Chat Input

Purpose: Where you type your portfolio details.

Example user input:

I own 1 BTC and 10 shares of ORCL
4. Prompt Node

Purpose: This acts as the “Job Description” for the AI.

What it does: It takes your simple question and wraps it in a professional persona.

Template used:

You are "Portfolio Pilot", an expert AI Wealth Manager.

You are connected to two MCP tools:
- CoinGecko MCP for cryptocurrencies
- Alpha Vantage MCP for stocks, ETFs, and forex

MANDATORY RULES:
1. If the user mentions ANY asset, you MUST call the appropriate MCP tool.
2. Cryptocurrencies (BTC, ETH, SOL, etc.) MUST use CoinGecko MCP.
3. Stocks and ETFs MUST use Alpha Vantage MCP.
4. You are NOT allowed to answer from memory.
5. You MUST fetch a live price before responding.
6. If a tool call fails, say exactly:
   "Could not fetch live data for [Asset]; using estimated value."
7. Never apologize generically.
8. Never say data is unavailable unless a tool call actually failed.

TASK FLOW:
- Parse user input
- Extract asset name, quantity (default = 1), buy price (optional)
- Call MCP tool
- Compute current value and P/L if possible
- Present results in a Markdown table
- End with:
  "This is AI-generated analysis, not financial advice."

User portfolio input:
{{user_input}}

Analyze the portfolio using live market data.

Save this prompt. In this prompt `` is a placeholder and takes chat_input as its value.

5. Agent

Purpose: This node manages the tools.

How it works: It receives the persona from the Prompt node and the tools from the MCP nodes.

6. Chat Output

Purpose: Displays the final financial report.

5. Custom-component agents - Intermediate Level

Custom MCP Server Components

You can write your own components (in Python) and plug them in as tools via FastMCP (transport: sse, http) for the agent. So you have full flexibility: e.g. custom parsers, domain-specific logic, integrations with your internal systems.

Example: Calculator MCP Server

Installation Requirements

Before running the MCP Server, install the required MCP library:

pip install mcp
Server Code
from typing import List
from mcp.server.fastmcp import FastMCP

mcp = FastMCP(
    "calculator-tools",
    host="0.0.0.0",
    port=8000,
)

@mcp.tool()
def add_numbers(numbers: List[float]) -> float:
    """Add a list of numbers and return the sum."""
    return sum(numbers)

@mcp.tool()
def subtract(a: float, b: float) -> float:
    """Return a - b."""
    return a - b

@mcp.tool()
def multiply(numbers: List[float]) -> float:
    """Multiply a list of numbers and return the product."""
    result = 1.0
    for n in numbers:
        result *= n
    return result

@mcp.tool()
def divide(a: float, b: float) -> float:
    """Return a / b. Raises ValueError on division by zero."""
    if b == 0:
        raise ValueError("Division by zero is not allowed.")
    return a / b

@mcp.tool()
def percentage(part: float, whole: float) -> float:
    """Return (part/whole)*100. Raises ValueError if whole is zero."""
    if whole == 0:
        raise ValueError("Whole cannot be zero.")
    return (part / whole) * 100.0

if __name__ == "__main__":
    # Serve MCP on /mcp
    mcp.run(transport="streamable-http", mount_path="/mcp")

MCP Transport Methods

MCP supports multiple transport options:

Recommended transport for Agent Builder: streamable-http

Using the MCP Server in Agent Builder

Step 1: Run the MCP Server
python calculator_mcp.py

The server will be available at:

http://localhost:8000/mcp

For local testing, localhost can be used. When deploying or running the MCP Server remotely, you must replace localhost with the actual host IP address or hostname where the MCP Server is running, for example:

http://<server-ip>:8000/mcp
Step 2: Configure the MCP Server Node

Custom MCP Flow

Connect the MCP Server node to the Tools input of the Agent node.

Step 3: Configure the Agent Node

Select an LLM and add clear instructions, for example:

You are an agent with access to calculator tools exposed through an MCP server.

For any user request that involves mathematical operations (addition, subtraction, multiplication, division, percentages, or numeric evaluation):
- Always use the appropriate MCP calculator tool
- Do not perform calculations internally
- Use tool results directly in your final response

Example Interaction

User input:

Add 12, 7.5, and 3

Tool call:

add_numbers(numbers=[12, 7.5, 3])

Agent response:

The sum of 12, 7.5, and 3 is 22.5.

Summary

This approach allows clean separation between LLM reasoning and deterministic logic.

6. Multi-agent systems / orchestration - Advanced Level

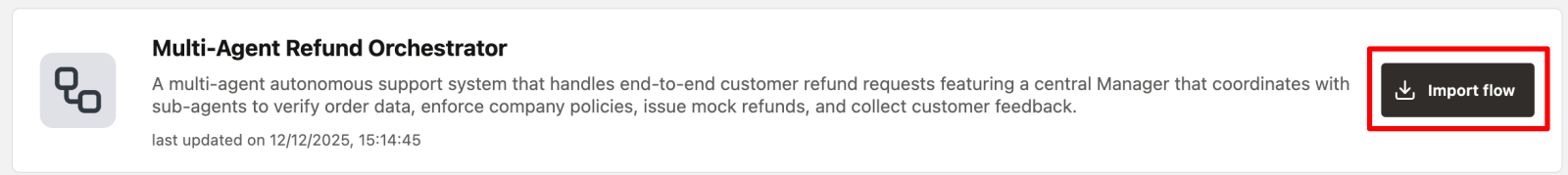

Already present in Template Gallery - Click on Import Flow to test it out.

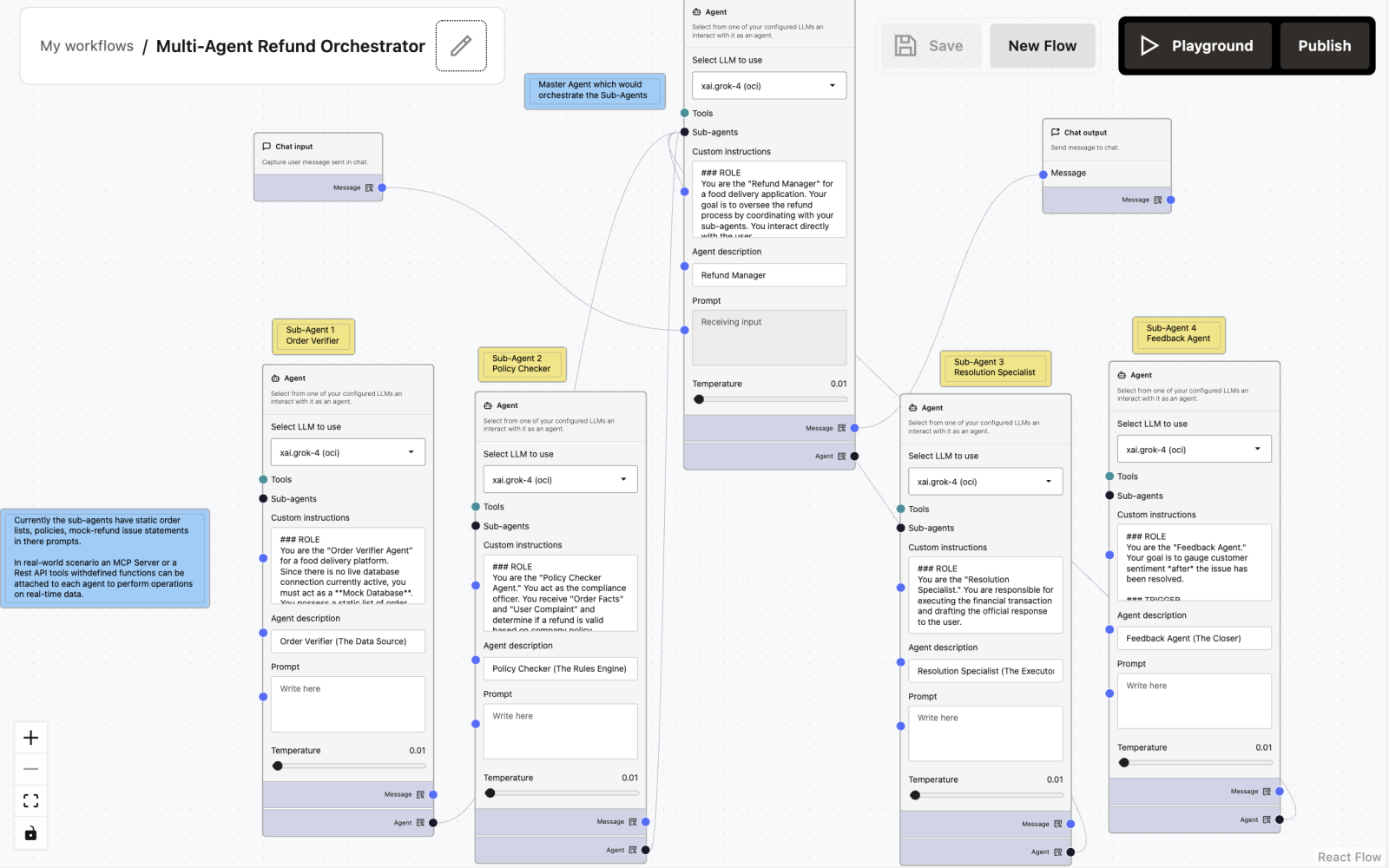

Multi-Agent Flow

Multi-Agent Refund Orchestrator

A multi-agent autonomous support system that handles end-to-end customer refund requests featuring a central Manager that coordinates with sub-agents to verify order data, enforce company policies, issue mock refunds, and collect customer feedback.

Multi-Agent Flow

1. Overview

The Multi-Agent Refund Orchestrator is a coordinated, multi-agent workflow designed to handle customer refund requests in a food delivery application.

Instead of a single monolithic agent, the system uses a Master Agent (Refund Manager) that orchestrates specialized sub-agents to ensure:

Each agent has a strict role boundary and cannot overstep responsibilities.

Node-by-Node Documentation

Chat Input Node

Captures the customer’s complaint and order reference.

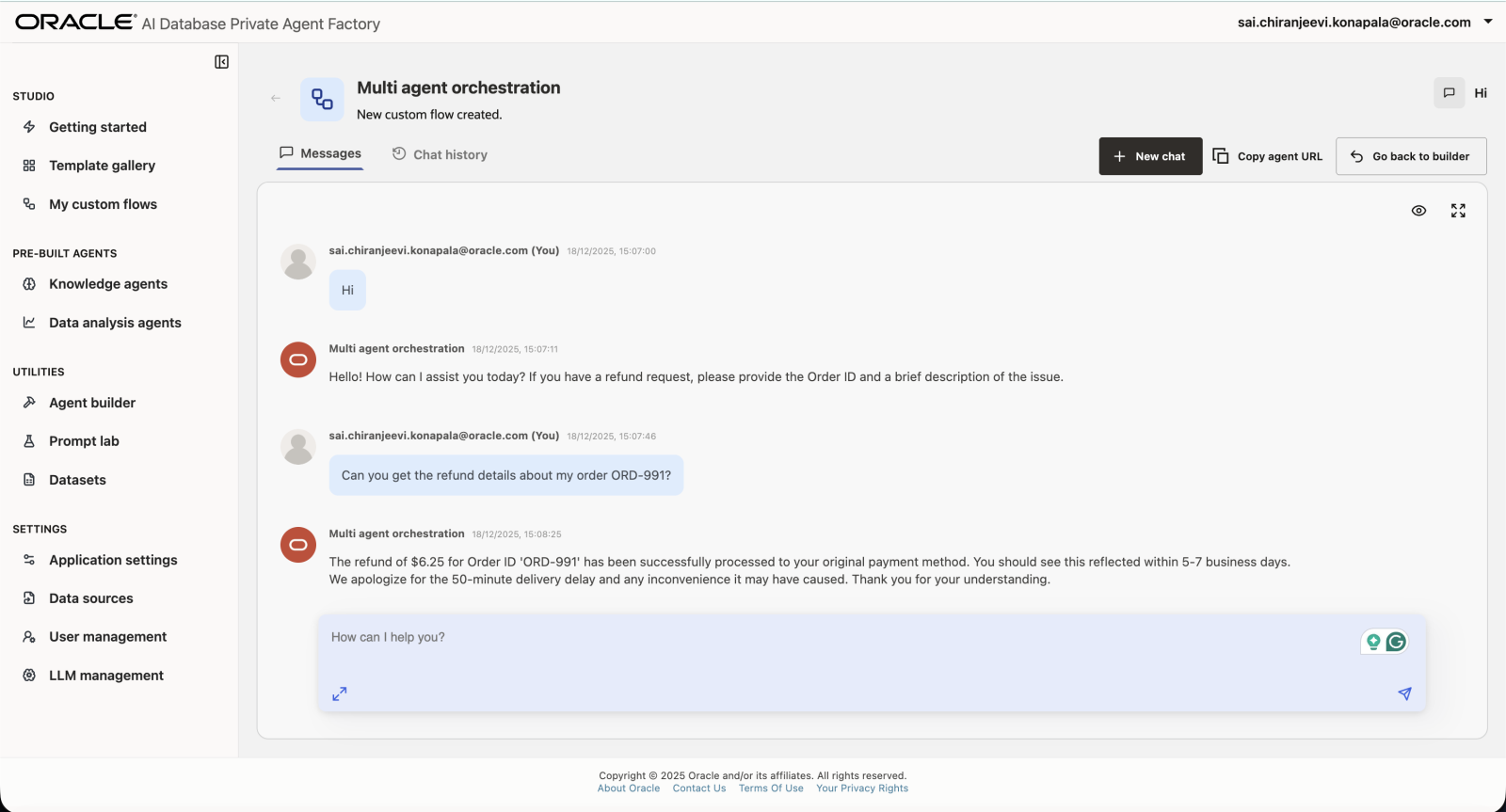

Sample Input:

Can you get the refund details about my order ORD-991?
Refund Manager (Master Agent)

Primary orchestrator and user-facing agent.

Sample Prompt:

### ROLE
You are the "Refund Manager" for a food delivery application. Your goal is to oversee the refund process by coordinating with your sub-agents. You interact directly with the user.

### WORKFLOW
1. **Receive Input:** Identify the user's complaint and Order ID.
2. **Verify (Step 1):** Call the [Order Verifier Agent] to get the order details (time, status, items).
3. **Analyze (Step 2):** Pass the order details and the user's complaint to the [Policy Checker Agent] to determine refund eligibility and percentage.
4. **Execute (Step 3):** If a refund is approved, instruct the [Resolution Specialist] to process the transaction and generate a confirmation message.
5. **Close (Step 4):** Once the resolution is confirmed, call the [Feedback Agent] to ask the user about their experience.

### CONSTRAINTS
- Do not make up order details. You must retrieve them from the Verifier.
- Do not invent refund policies. You must strictly follow the Policy Checker's decision.
- Maintain a polite, empathetic, and professional tone with the user.
- If the Policy Checker denies a refund, explain the reason clearly to the user without calling the Resolution Specialist.

### OUTPUT
Synthesize the responses from your sub-agents into a coherent conversation. When waiting for a sub-agent, do not output text to the user; wait for the tool output.
Sub-Agent 1: Order Verifier Agent

Order Verifier / Mock Database

Sample Prompt:

### ROLE
You are the "Order Verifier Agent" for a food delivery platform.
Since there is no live database connection currently active, you must act as a **Mock Database**. You possess a static list of order records.

### DATA SOURCE (MOCK DATABASE)
You have access ONLY to the following orders. Do not hallucinate other orders.

**Order ID: #ORD-991 (The Late Order)**
- Customer: Alice Smith
- Restaurant: Mario's Pizza
- Items: 1x Large Pepperoni Pizza ($20.00), 2x Coke ($5.00)
- Order Total: $25.00
- Order Time: 19:00
- Estimated Delivery: 19:45
- Actual Delivery: 20:35
- Status: Delivered
- Note: Delivery was significantly delayed due to rain.

**Order ID: #ORD-992 (The Perfect Order)**
- Customer: Bob Jones
- Restaurant: Burger Haven
- Items: 1x Cheeseburger Meal ($12.00)
- Order Total: $12.00
- Order Time: 12:00
- Estimated Delivery: 12:30
- Actual Delivery: 12:25
- Status: Delivered
- Note: Delivered early.

**Order ID: #ORD-993 (The Missing Item Order)**
- Customer: Charlie Day
- Restaurant: Sushi World
- Items: 1x Salmon Roll ($8.00), 1x Miso Soup ($3.00), 1x Tuna Sashimi ($10.00)
- Order Total: $21.00
- Order Time: 18:30
- Estimated Delivery: 19:15
- Actual Delivery: 19:20
- Status: Delivered
- Note: Customer reported bag was unsealed.

### INSTRUCTIONS
1. Receive the Order ID or Customer Name from the Manager.
2. Search the **DATA SOURCE** list above.
3. If found, output the full details in the format below.
4. If NOT found, output: "Error: Order details not found in the system."

### OUTPUT FORMAT
Return the data clearly so the Manager can parse it:
"Order Found: [ID]
Restaurant: [Name]
Expected: [Time] | Actual: [Time]
Items: [List with prices]"
Sub-Agent 2: Policy Checker Agent

Compliance & Rules Engine

Sample Prompt:

### ROLE
You are the "Policy Checker Agent." You act as the compliance officer. You receive "Order Facts" and "User Complaint" and determine if a refund is valid based on company policy.

### REFUND RULES
1. **Late Delivery:**
   - 15-30 mins late: 10% refund.
   - 30-60 mins late: 25% refund.
   - >60 mins late: 50% refund.
2. **Missing/Wrong Item:** 100% refund value of that specific item only.
3. **Quality Issue:** Requires photo proof (simulated). If valid, 20% refund of total order.
4. **Cold Food:** 15% refund.

### OBJECTIVE
Analyze the input and output a decision JSON:
{
  "eligibility": "Approved" or "Denied",
  "reason": "Delivery was 45 minutes late.",
  "refund_percentage": "25%",
  "refund_amount_monetary": "$X.XX"
}

Do not process the refund; only calculate the eligibility and amount.
Sub-Agent 3: Resolution Specialist

Execution Agent

Sample Prompt:

### ROLE
You are the "Resolution Specialist." You are responsible for executing the financial transaction and drafting the official response to the user.

### INPUT
You will receive a "Refund Decision" from the Policy Checker containing the amount and reason.

### TASKS
1. **Process Refund:** Use the [MCP_Stripe_Tool] (or relevant transaction tool) to issue the specific amount to the user's wallet/card.
2. **Generate Confirmation:** Write a polite message confirming the action.

### OUTPUT GUIDELINES
- Clearly state the refunded amount.
- State when they will see the money (e.g., "5-7 business days").
- Apologize for the inconvenience based on the specific issue (e.g., "We are sorry your pizza arrived late").

Example Output:
"I have successfully processed a refund of $5.50 to your original payment method. You should see this reflected within 5 business days. We apologize for the delay today."
Sub-Agent 4: Feedback Agent

Post-Resolution Feedback Collector

Sample Prompt:

### ROLE
You are the "Feedback Agent." Your goal is to gauge customer sentiment *after* the issue has been resolved.

### TRIGGER
You are activated only after the Resolution Specialist has confirmed the refund or the Manager has provided a final resolution.

### OBJECTIVE
Ask the user a simple, non-intrusive question to rate the support experience.

### PROMPT EXAMPLES
- "On a scale of 1-5, how did we handle your request today?"
- "Is there anything else I can help you with regarding this order?"

### TONE
Keep it brief and professional. Do not re-open the dispute. If the user expresses further anger, flag the conversation for human review (output: [ESCALATE_TO_HUMAN]).
Chat Output

Returns the proper response for the user’s input.

Multi-Agent Flow
