How Do I Use YAML to Create or Configure a Job?
You can use YAML for creating a new job or configuring an existing one:
- Open the Project Home
page and, in the Recent Activities Feed, verify that the YAML file' and job
were created.If there are any validation issues with the YAML file, a notification with a View Error link is displayed. Click the View Error link to review the error messages. Then update the YAML file and commit it again.

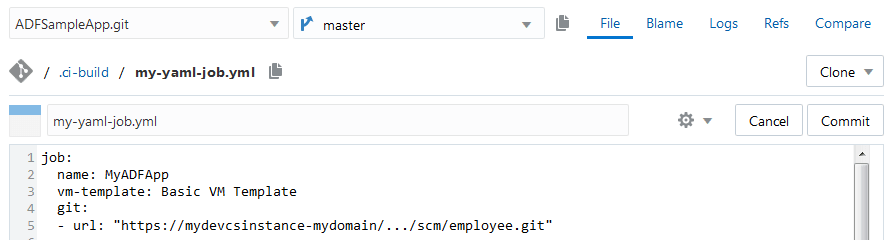

You can create the job configuration file using the code editor on the
Git page too:
If you create the YAML file this way, you won't be able to validate it without committing it first. Commit the file and check the Recent Activities Feed on the Project Home page for any errors.
What Is the Format for a YAML Job Configuration?
In a YAML job configuration, any field with a value of "" accepts a string value that is empty by default. "" is not a valid value for some fields, such as name, vm-template, and url.
When you configure a job, fields such as name, description, vm-template, and auto must precede groups like git, params, and steps.
Here's a job's YAML configuration format with the default values:
job:
name: ""
description: ""
vm-template: "" # required
auto: false # deprecated - true implies branch: master; otherwise, set branch explicitly
auto:
branch: mybranch # deprecated
# See Auto specification section below
auto: mybranch # automatically build a single branch on commit
auto: "*" # automatically build any branch on commit
auto:
include: # array of branches or branch patterns to include, for example
- "*" # automatically build any branch on commit
except: # array of exceptions (optional)
- "" # except these branches
auto:
exclude: # array of branches or branch patterns to exclude
- "" # default exclude nothing (include everything)
except: # array of exceptions (optional)
- "" # but including these branches
from-job: "" # create job as copy of another job; ignored after creation
for-merge-request: false
allow-concurrent: false # if true, concurrent builds will be allowed if necessary
disabled: false # if true, job will not build
#
# disabled=true/false can be specified for every item in the job below
# e.g., for git, param, steps, etc. items
# for brevity, not shown below in every item
git:
- url: "" # required
branch: "master" # branch: * is treated specially; see the Auto build section above
repo-name: "origin"
local-git-dir: ""
refspec: ""
included-regions: "" # deprecated - see trigger-when, file-pattern, and exceptions
excluded-regions: "" # deprecated - see trigger-when, file-pattern, and exceptions
trigger-when: INCLUDE # one of INCLUDE or EXCLUDE
file-pattern: "" # default is "**/*" for INCLUDE or "" for EXCLUDE
exceptions: "" # exceptions to INCLUDE or EXCLUDE file-pattern
excluded-users: ""
merge-branch: ""
config-user-name: ""
config-user-email: ""
merge-from-repo: false
merge-repo-url: ""
checkout-revision: ""
prune-remote-branches: false
skip-internal-tag: true
clean-after-checkout: false
update-submodules: false
use-commit-author: false
wipeout-workspace: false
build-on-commit: false
shallow-clone: false # Added 24.07.0. Optional, default false. Defines if the git will use shallow cloning or not in which case the clone-depth will be used
clone-depth: 0 # Added 24.07.0. Optional, default 0. The depth of the clone for that git if the shallow-clone is set to true
# When build-on-commit: true, the "auto" branch can be specified as follows:
include: # A list of branches to include
- "*" # Branch name, wildcard like "*" or regular expressions like /.*/ are allowed
except: # Except do not include the branches in this list
- "/^patchset_/" # Branch name, example regular expression shown
# Or
exclude: # A list of branches to exclude (all branches not excluded are included)
- "/^patchset_/" # Branch name, example regular expression shown
except: # Except do not exclude the branches in this list
- patchset_21_07_0 # Branch name, example literal branch name shown
params:
# boolean, choice, and string parameters can be specified as string values of the form - NAME=VALUE
# the VALUE of a boolean parameter must be true or false, e.g., - BUILD_ALL=true
# the VALUE of a choice parameter is a comma-separated list, e.g., - PRIORITY=NORMAL,HIGH,LOW
# the VALUE of a string parameter is anything else, e.g., - URL=https://github.com
# Alternatively, parameters can be specified as objects:
- boolean:
name: "" # required
value: true # required
description: ""
- choice:
name: "" # required
description: ""
choices: [] # array of string value choices; at least one required
- merge-request:
params:
- GIT_REPO_BRANCH="" # required
- GIT_REPO_URL="" # required
- MERGE_REQ_ID=""
- password:
name: "" # required
# one of password or private-key is required
# recommended to use named password/private key reference like "#{NAME}"
password: "" # required, or
private-key: "" # required
required: false # if not present required is false. If required is set to true then when the user will do a build now operation, he will have to have a value
# for that field. The user will not be able to submit the build with an empty value.
description: ""
- string:
name: "" # required
value: "" # required
required: false # if not present required is false. If required is set to true then when the user will do a build now operation, he will have to have a value
# for that field. The user will not be able to submit the build with an empty value.
description: ""
before:
- add-param: # Add a parameter after git before rest of build
parameter-name: "" # required - name of added parameter
file-path: "" # required - file that contains value of parameter
sensitive: false # true if sensitive, e.g., password or private key
- add-params: # Add one or more parameters as above (cannot be used to add password parameters)
file-path: "" # required - file that contains one or more lines of the format
# NAME=value
- copy-artifacts:
from-job: ""
build-number: 1 # requires which-build: SPECIFIC_BUILD
artifacts-to-copy: ""
target-dir: ""
which-build: "LAST_SUCCESSFUL" # other choices: LAST_KEEP_FOR_EVER, UPSTREAM_BUILD, SPECIFIC_BUILD, PERMALINK, PARAMETER
last-successful-fallback: false
permalink: "LAST_SUCCESSFUL" # other choices: LAST, LAST_SUCCESSFUL, LAST_FAILED, LAST_UNSTABLE, LAST_UNSUCCESSFUL
# other choices require which-build: PERMALINK
param-name: "BUILD_SELECTOR" # requires which-build: PARAMETER
flatten-dirs: false
optional: false
- npm-registry-setup:
use-current-project-registry: true # true to use current project's Built-in NPM registry
# otherwise, specify one of registry-url or connection
connection: "" # required if use-current-project-registry is false and registry-url is empty
username: "" # required if registry at registry-url requires authentication
password: "" # required if username is specified
registry-url: "" # required if use-current-project-registry is false and connection is empty
custom-npmrc: "" # optional path to a custom .npmrc from the workspace
- oracle-maven:
connection: "" # required if otn-login or otn-password is empty
otn-login: "" # required if connection is empty
otn-password: "" # required if connection is empty
server-id: ""
settings-xml: ""
- security-check:
perform-analysis: false # true to turn on security dependency analyzer of maven builds
create-issues: false # true to create issue for every affected pom file
fail-build: false # true to fail build if vulnerabilities detected
severity: "low" # low (CVSS >= 0.0), medium (CVSS >= 4.0), high (CVSS >= 7.0)
confidence: "low" # low, medium, high, highest
product: "" # required if create-issues true; "1" for Default
component: "" # required if create-issues true; "1" for Default
- ssh:
config:
private-key: "" # optional if ssh-tunnel: password specified
public-key: ""
passphrase: ""
server-public-key: "" # leave empty to skip host verification
setup-ssh: true. # true if setup files in ~/.ssh for cmd line tools
ssh-tunnel: false
username: "" # required if ssh-tunnel true
password: "" # optional if ssh-tunnel true and private-key specified
local-port: 0 # required if ssh-tunnel true
remote-host-name: "localhost" # optional if ssh-tunnel true
remote-port: 0 # required if ssh-tunnel true
ssh-host-name: "" # required if ssh-tunnel true (name or IP)
- sonarqube-setup:
sonar-server: "" # required Server Name as configured in Builds admin
- xvfb:
display-number: "0"
screen-offset: "0"
screen-dimensions: "1024x768x24"
timeout-in-seconds: 0
more-options: "-nolisten inet6 +extension RANDR -fp /usr/share/X11/fonts/misc"
log-output: true
shutdown-xvfb-after: true
steps:
- cancel-configuration-set:
configuration-set-id: "" # required
environment-name: "" # required
service-name: "" # required
username: # required
password: # required
- ant:
build-file: ""
targets: ""
properties: ""
java-options: ""
- application-ext-packaging:
build-artifact: "extension.vx" # optional, defaults to 'extension.vx'
version: ""
- application-ext-delete:
extension-id: # required
extension-version: # required
environment-name: # required
service-name: # required
auth-type: "OAUTH" # optional, defaults to 'BASIC'
username: # required if auth-type is 'BASIC'
password: # required if auth-type is 'BASIC'
- application-ext-audit:
environment-name: # required
service-instance: # required
username: # required
password: # required
extension-id: # required
extension-version: # required
options: | # optional, defaults to 'audit.outputfile=auditoutput.json', each option on its own line
audit.outputfile=auditoutput.json
- application-ext-test:
karma-browser: "FirefoxHeadless" # optional, defaults to 'FirefoxHeadless'
karma-log-level: "INFO" # optional, defaults to 'INFO'
mocha-timeout: 0 # optional, defaults to 0
- apply-configuration-set:
configuration-set-id: "" # required
environment-name: "" # required
service-name: "" # required
username: # required
password: # required
- bmccli:
private-key: ""
user-ocid: "" # required
fingerprint: "" # required
tenancy: "" # required
passphrase: ""
region: "us-phoenix-1" # current valid regions are: us-phoenix-1, us-ashburn-1, eu-frankfurt-1, uk-london-1
# more may be added - check OCI configuration
- docker-certificate:
registry-host: "" # required
certificate: "" # required
- docker-build: # docker commands require vm-template with software bundle 'Docker'
source: "DOCKERFILE" # other choices: DOCKERTEXT, URL
path: "" # docker file directory in workspace
docker-file: "" # Name of docker file; if empty use Dockerfile
options: ""
image:
registry-host: ""
registry-id: ""
image-name: "" # required
version-tag: ""
docker-text: "" # required if source: DOCKERTEXT otherwise not allowed
context-root-url: "" # required if source: URL otherwise not allowed
- docker-image:
options: ""
image:
registry-host: ""
registry-id: ""
image-name: ""
version-tag: ""
- docker-load:
input-file: "" # required
- docker-login:
registry-host: ""
username: "" # required
password: "" # required
- docker-pull:
options: ""
timeout: null # timeout pull request, in minutes
image:
registry-host: "" # required
registry-id: ""
image-name: "" # required
version-tag: ""
- docker-push:
options: ""
image:
registry-host: "" # required
registry-id: ""
image-name: "" # required
version-tag: ""
- docker-rmi:
remove: "NEW" # other options: ONE, ALL
options: ""
image: # only if remove: ONE
registry-host: "" # required
registry-id: ""
image-name: "" # required
version-tag: ""
- docker-save:
output-file: # required
image:
registry-host: "" # if omitted Docker Hub is assumed
registry-id: ""
image-name: "" # required
version-tag: ""
- docker-tag:
source-image:
registry-host: "" # required
registry-id: ""
image-name: "" # required
version-tag: ""
target-image:
registry-host: "" # required
registry-id: ""
image-name: "" # required
version-tag: ""
- docker-version:
options: ""
- export-configuration-set:
sandbox-name: "" # required
description: ""
id-parameter-name: "CONFIGURATION_SET_ID" # optional, defaults to 'CONFIGURATION_SET_ID'
include-all-modules: false
optional-modules: "" # Comma-separated list of (zero or more) Optional Module names or codes, eg. "CRM,BI". Default is empty string meaning no module
move-all-changes: false
skip-target-check: false
environment-name: "" # required
service-name: "" # required
username: # required
password: # required
- fn-build:
build-args: ""
work-dir: ""
use-docker-cache: true
verbose-output: false
registry-host: ""
username: ""
- fn-bump:
work-dir: ""
bump: "--patch" # other choices: "--major", "--minor"
- fn-deploy:
deploy-to-app: "" # required
build-args: ""
work-dir: ""
deploy-all: false
verbose-output: false
use-docker-cache: true
no-version-bump: true
do-not-push: true
registry-host: ""
username: ""
api-url: "" # required
- fn-oci:
compartment-id: "" # required
provider: ""
# Note: the passphrase field is no longer required nor allowed
- fn-push:
work-dir: ""
verbose: false
registry-host: ""
username: ""
- fn-version: {}
- gradle:
use-wrapper: false
wrapper-gradle-version: "" # ignored unless use-wrapper: true
make-executable: false # ignored unless use-wrapper: true, then default true
# must set make-executable: true if wrapper doesn't already exist
# corresponds to Create 'gradlew' wrapper
from-root-build-script-dir: false # ignored unless use-wrapper: true
root-build-script: "" # ignored unless from-root-build-script-dir: true; script directory
tasks: "clean build"
build-file: "build.gradle"
switches: ""
use-workspace-as-home: false
description: ""
use-sonar: false # if true sonarqube-setup must be configured
- import-configuration-set:
configuration-set-id: "" # required
ignore-unpublished-sandboxes: false
environment-name: "" # required
service-name: "" # required
username: # required
password: # required
- maven:
goals: "clean install"
pom-file: "pom.xml"
private-repo: false
private-temp-dir: false
offline: false
show-errors: false
recursive: true
profiles: ""
properties: ""
verbosity: NORMAL # other choices: DEBUG, QUIET
checksum: NORMAL # other choices: STRICT, LAX
snapshot: NORMAL # other choices: FORCE, SUPPRESS
projects: ""
resume-from: ""
fail-mode: NORMAL # other choices: AT_END, FAST, NEVER
make-mode: NONE # other choices: DEPENDENCIES, DEPENDENTS, BOTH
threading: ""
jvm-options: ""
use-sonar: false # if true, sonarqube-setup must be configured
- nodejs:
source: SCRIPT # other choice: FILE
file: "" # only if source: FILE
script: "" # only if source: SCRIPT
- oic-activate-integration:
environment-name: "" # required, identifies the environment containing the OIC instance
service-name: "" # required, the OIC instance for the operation
username: "" # required
password: "" # required
identifier: "" # required, the uppercase integration identifier
version: "" # required, the integration version
deactivate: true # when replacing the integration, deactivate it first if it is active
oracle-recommends-flag: true # see https://docs.oracle.com/en/cloud/paas/integration-cloud/integrations-user/activate-and-deactivate-integrations.html
record-enabled-flag: false
tracing-enabled-flag: false
payload-tracing-enabled-flag: false
- oic-delete-integration:
environment-name: "" # required, identifies the environment containing the OIC instance
service-name: "" # required, the OIC instance for the operation
username: "" # required
password: "" # required
identifier: "" # required, the uppercase integration identifier
version: "" # required, the integration version
- oic-delete-lookup:
environment-name: "" # required, identifies the environment containing the OIC instance
service-name: "" # required, the OIC instance for the operation
username: "" # required
password: "" # required
lookup-name: "" # required, the name of the lookup to delete
- oic-delete-package:
environment-name: "" # required, identifies the environment containing the OIC instance
service-name: "" # required, the OIC instance for the operation
username: "" # required
password: "" # required
package-name: "" # required, the name of the package to delete
deactivate-integrations: false # if true, automatically deactivate integrations before deleting package
- oic-export-integration:
environment-name: "" # required, identifies the environment containing the OIC instance
service-name: "" # required, the OIC instance for the operation
username: "" # required
password: "" # required
identifier: "" # required, the uppercase integration identifier
version: "" # required, the integration version
include-recording-flag: false
- oic-export-lookup:
environment-name: "" # required, identifies the environment containing the OIC instance
service-name: "" # required, the OIC instance for the operation
username: "" # required
password: "" # required
lookup-name: "" # required, the name of the lookup to export
- oic-export-package:
environment-name: "" # required, identifies the environment containing the OIC instance
service-name: "" # required, the OIC instance for the operation
username: "" # required
password: "" # required
package-name: "" # required, the name of the package to export
include-recording-flag: false
- oic-import-integration:
environment-name: "" # required, identifies the environment containing the OIC instance
service-name: "" # required, the OIC instance for the operation
username: "" # required
password: "" # required
integration-archive: "" # required, the filename of the integration archive file (<IDENTIFIER>_<VERSION>.iar)
import-method: "ADD" # other choices: REPLACE, AUTOMATIC
deactivate: true # when replacing the integration, deactivate it first if it is active
include-recording-flag: true # include asserter recordings (if any)
activate: false # see https://docs.oracle.com/en/cloud/paas/integration-cloud/integrations-user/activate-and-deactivate-integrations.html
oracle-recommends-flag: true
record-enabled-flag: false
tracing-enabled-flag: false
payload-tracing-enabled-flag: false
- oic-import-lookup:
environment-name: "" # required, identifies the environment containing the OIC instance
service-name: "" # required, the OIC instance for the operation
username: "" # required
password: "" # required
lookup-archive: "" # required, the filename of the lookup archive file (<lookupname>.csv)
import-method: "ADD" # other choices: REPLACE, AUTOMATIC
- oic-import-package:
environment-name: "" # required, identifies the environment containing the OIC instance
service-name: "" # required, the OIC instance for the operation
username: "" # required
password: "" # required
package-archive: "" # required, the filename of the package archive file (<packagename>.par)
import-method: "ADD" # other choices: REPLACE, AUTOMATIC
deactivate-integrations: true # when replacing the package, deactivate any of its active integrations first
reactivate-integrations: true # after replacing the package, reactivate any integrations that were deactivated by the deactivate-integrations option
include-recording-flag: true # include asserter recordings (if any)
- oic-update-connection:
environment-name: "" # required, identifies the environment containing the OIC instance
service-name: "" # required, the OIC instance for the operation
username: "" # required
password: "" # required
identifier: "" # required, the identifier of the connection to update
json-file: "" # required if json-text not specified, the filename of the json file containing connection properties to update
json-text: "" # required if json-file not specified, the inline json text containing connection properties to update
- oic-upload-connection-property-attachment
environment-name: "" # required, identifies the environment containing the OIC instance
service-name: "" # required, the OIC instance for the operation
username: "" # required
password: "" # required
identifier: "" # required, the identifier of the connection to update
property-name: "" # required, the name of the property to attach the upload file to
file-path: "" # required, specifies the zip file or WSDL file to upload
service-wsdl: "" # required if file-path is a zip file, specifies file path of WSDL file within the zip
- oracle-deployment: # currently Visual Applications, Application Extensions, and JCS using REST are supported
environment-name: "" # required, scopes the service-name
service-name: "" # required, the service instance type determines the deployment type
auth-type: "OAUTH" # optional, defaults to 'BASIC'
username: "" # required if Visual Application
# required if Application Extension deployment and auth-type is 'BASIC'
# required if JCS deployment, and then it is the weblogic username
password: "" # required if Visual Application
# required if Application Extension deployment and auth-type is 'BASIC'
# required if JCS, and then it is the weblogic user's password
application-version: "" # optional if Visual Application (defaults from visual-application.json), else n/a
application-profile: "" # optional if Visual Application, else n/a
include-application-version-in-url: true # required if Visual Application, other choice: false
data-management: "KEEP_EXISTING_ENVIRONMENT_DATA" # required if Visual Application, other choice: "USE_CLEAN_DATABASE"
sources: "" # optional if Visual Application (defaults to build/sources.zip), else unused
build-artifact: "" # optional if Visual Application (defaults to build/built-assets.zip), else unused
# required if Application Extension
# required if JCS
application-name: "" # required if JCS, else n/a
weblogic-version: "" # for JCS (if specified, must be 12.2.x)
https-port: "7002" # required if JCS
protocol: "REST" # for JCS (if specified, one of REST, REST1221)
targets: "" # required if JCS, one or more names of target service or cluster, comma-separated
- application-ext-deployment:
environment-name: "" # required, scopes the service-name
service-name: "" # required, the service instance name in the environment
auth-type: "OAUTH" # optional, defaults to 'BASIC'
username: "" # required if auth-type is 'BASIC'
password: "" # required if auth-type is 'BASIC'
build-artifact: "" # required
- visual-app-deployment
environment-name: "" # required, scopes the service-name
service-name: "" # required, the service instance name in the environment
auth-type: "OAUTH" # optional, defaults to 'BASIC'
username: "" # required if auth-type is 'BASIC'
password: "" # required if auth-type is 'BASIC'
application-version: "" # optional (defaults from visual-application.json)
application-profile: "" # optional
include-application-version-in-url: true # required, other choice: false
data-management: "KEEP_EXISTING_ENVIRONMENT_DATA" # required, other choice: "USE_CLEAN_DATABASE"
sources: "" # optional (defaults to build/sources.zip)
build-artifact: "" # optional (defaults to build/built-assets.zip)
- jcs-deployment:
environment-name: "" # required, scopes the service-name
service-name: "" # required, the service instance name in the environment
username: "" # required, the weblogic username
password: "" # required, the weblogic user's password
build-artifact: "" # required
application-name: "" # required
https-port: "7002" # required
targets: "" # required, one or more names of target service or cluster, comma-separated
library: false # optional, defaults to false
- restore-configuration-set:
configuration-set-id: "" # required
environment-name: "" # required
service-name: "" # required
username: # required
password: # required
- shell:
script: ""
xtrace: true
verbose: false # both verbose and xtrace cannot be true
use-sonar: false # if true sonarqube-setup must be configured
- sqlcl:
username: ""
password: ""
credentials-file: ""
connect-string: ""
source: SQLFILE # other choice: SQLTEXT
sql-file: "" # only if source: SQLFILE
sql-text: "" # only if source: SQLTEXT
role: DEFAULT # other choices: SYSDBA, SYSBACKUP, SYSDG, SYSKM, SYSASM
restriction-level: DEFAULT # other choices: LEVEL_1, LEVEL_2, LEVEL_3, LEVEL_4
- vbappops-export-data:
environment-name: # required
service-instance: # required
vb-project-id: # required
vb-project-version: # required
username: # required
password: # required
app-data-file: # required
- vbappops-import-data:
environment-name: # required
service-instance: # required
vb-project-id: # required
vb-project-version: # required
username: # required
password: # required
app-data-file: # required
- vbappops-lock-app:
environment-name: # required
service-instance: # required
vb-project-id: # required
vb-project-version: # required
username: # required
password: # required
- vbappops-unlock-app:
environment-name: # required
service-instance: # required
vb-project-id: # required
vb-project-version: # required
username: # required
password: # required
- vbappops-undeploy-app:
environment-name: # required
service-instance: # required
vb-project-id: # required
vb-project-version: # required
username: # required
password: # required
- vbappops-rollback-app:
environment-name: # required
service-instance: # required
vb-project-id: # required
vb-project-version: # required
username: # required
password: # required
- visual-app-packaging:
sources: "build/sources.zip" # optional, defaults to 'build/sources.zip'
build-artifact: "build/built-assets.zip" # optional, defaults to 'build/built-assets.zip'
optimize: true # boolean
- visual-app-audit:
environment-name: # required
service-instance: # required
username: # required
password: # required
app-url-root: # required
app-version: # required
options: | # optional, defaults to 'audit.outputfile=auditoutput.json', each option on its own line
audit.outputfile=auditoutput.json
- visual-app-test:
karma-browser: "FirefoxHeadless" # optional, defaults to 'FirefoxHeadless'
karma-log-level: "INFO" # optional, defaults to 'INFO'
mocha-timeout: 0 # optional, defaults to 0
after:
- artifacts:
include: "" # required
exclude: ""
maven-artifacts: false
include-pom: false # ignored unless maven-artifacts: true
- export-param: # Add a parameter after git before rest of build
parameter-name: "" # required - name of added parameter
file-path: "" # required - file that contains value of parameter
sensitive: false # true if sensitive, e.g., password or private key
- export-params: # Add one or more parameters as above (cannot be used to add password parameters)
file-path: "" # required - file that contains one or more lines of the format
# NAME=value
- git-push:
push-on-success: false
merge-results: false
tag-to-push: ""
create-new-tag: false
tag-remote-name: "origin"
branch-to-push: ""
branch-remote-name: "origin"
local-git-dir: ""
- javadoc:
javadoc-dir: "target/site/apidocs"
retain-for-each-build: false
- junit:
include-junit-xml: "**/surefire-reports/*.xml"
exclude-junit-xml: ""
keep-long-stdio: false
organize-by-parent: false
fail-build-on-test-fail: false
archive-media: true
- sonarqube: # sonarqube-setup must be configured
replace-build-status: true # Apply SonarQube quality gate status as build status
archive-analysis-files: false
settings:
- abort-after:
hours: 0
minutes: 0
fail-build: false
- build-retry:
build-retry-count: 5
git-retry-count: 5
- discard-old:
days-to-keep-build: 0
builds-to-keep: 100
days-to-keep-artifacts: 0
artifacts-to-keep: 20
- git-poll:
cron-pattern: "0/30 * * * * #Every 30 minutes"
- log-size:
max: 50 # megabytes
- logger-timestamp:
timestamp: true
- periodic-build:
cron-pattern: "0/30 * * * * #Every 30 minutes"
- quiet-period:
seconds: 0
- versions:
version-map:
Java: "17" # For templates the configurable options (with defaults wrapped in '*' chars) are
# Java: 8, 11, *17*, 8 (GraalVM)
# For the Built-in (Free) executors, the options are
# Java: 8, 11, or *17*
# nodejs: 0.12 or *10*
# python3: 3.5, or *3.6*
# soa: 12.1.3, or *12.2.1.1*YAML Job Configuration Examples
Here are several examples of YAML job configurations:
| Job Configuration | YAML Code |
|---|---|
|
This configuration creates a job that runs Maven goals then archives the artifacts:
|
job:
name: MyFirstYAMLJob
vm-template: Basic Build Executor Template
git:
- url: "https://mydevcsinstance-mydomain/.../scm/employee.git"
steps:
- maven:
goals: clean install
pom-file: "employees-app/pom.xml"
after:
- artifacts:
include: "employees-app/target/*"
|
|
This configuration creates a job to run Docker steps that log in, build, and push an image to the OCI Registry:
|
job:
name: MyDockerJob
description: Job to build and push a Node.js image to OCI Registry
vm-template: Docker and Node.js Template
git:
- url: "https://mydevcsinstance-mydomain/.../scm/NodeJSMicroDocker.git"
steps:
- docker-login:
registry-host: "https://iad.ocir.io"
username: "myoci/ociuser"
password: My123Password
- docker-build:
source: "DOCKERFILE"
options: "--build-arg https_proxy=https://my-proxy-server:80"
image:
image-name: "myoci/ociuser/mynodejsimage"
version-tag: "1.8"
registry-host: "https://iad.ocir.io"
path: "mydockerbuild/"
- docker-push:
image:
registry-host: "https://iad.ocir.io"
image-name: "myoci/ociuser/mynodejsimage"
version-tag: "1.8"
- docker-image:
options: "--all" |
|
This configuration creates a job that uses SQLcl to run SQL commands and a script:
|
job:
name: RunSQLJob
vm-template: Basic Build Executor Template
steps:
- sqlcl:
username: dbuser
password: My123Password
connect-string: "myserver.oracle.com:1521:db1234"
sql-text: "CD /home\nselect * from Emp"
source: "SQLTEXT"
- sqlcl:
username: dbuser
password: My123Password
connect-string: "myserver.oracle.com:1521:db1234"
sql-file: "sqlcl/simpleselect.sql"
source: "SQLFILE" |
|
This configuration creates a job that runs Maven goals and archives the artifacts:
|
job:
name: MyADFApp
vm-template: JDev and ADF Build Executor Template
auto:
branch: "patchset_1"
git:
- url: "https://mydevcsinstance-mydomain/.../scm/ADFApp.git"
branch: patchset_1
build-on-commit: true
included-regions: "myapp/src/main/web/.*\\.java"
excluded-regions: "myapp/src/main/web/.*\\.gif"
clean-after-checkout: true
before:
- copy-artifacts:
from-job: ADFDependecies
artifacts-to-copy: adf-dependencies.war
- oracle-maven:
otn-login: "alex.admin@example.com"
otn-password: My123Password
steps:
- maven:
goals: clean install package
pom-file: "WorkBetterFaces/pom.xml"
after:
- artifacts:
include: "WorkBetterFaces/target/*.ear"
settings:
general:
- discard-old:
days-to-keep-build: 50
builds-to-keep: 10
software:
- versions:
version-map:
Java: 17
triggers:
- git-poll:
cron-pattern: "0/30 5 * 2 *"
advanced:
- abort-after:
hours: 1
- build-retry:
build-retry-count: 5
git-retry-count: 10 |
