Extending the Weblogic Server Domain for ADF Runtime

Since your ADF applications will be on the same domain as your ADF libraries, then you need to extend the Weblogic Server Domain for ADF Runtime.

Note: If you have not yet created the WLS domain, you can choose "Create a new domain" instead of "Update an existing domain."

To extend the Weblogic server domain for ADF runtime:

  1. Execute the config.cmd(sh) from Oracle_Home\oracle_common\common\bin folder.

    This image is described in surrounding text.

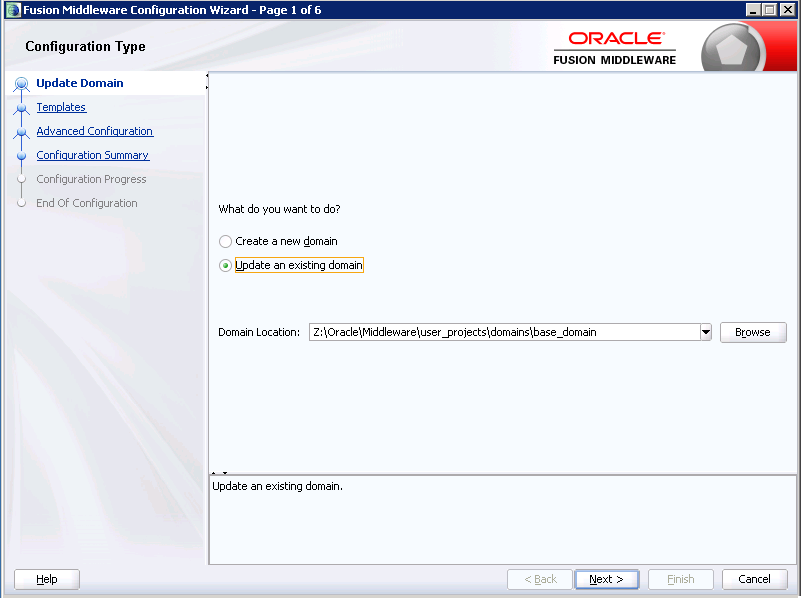

  2. Click the Update an existing domain option.

    The Create a new domain will be similar.

    This image is described in surrounding text.

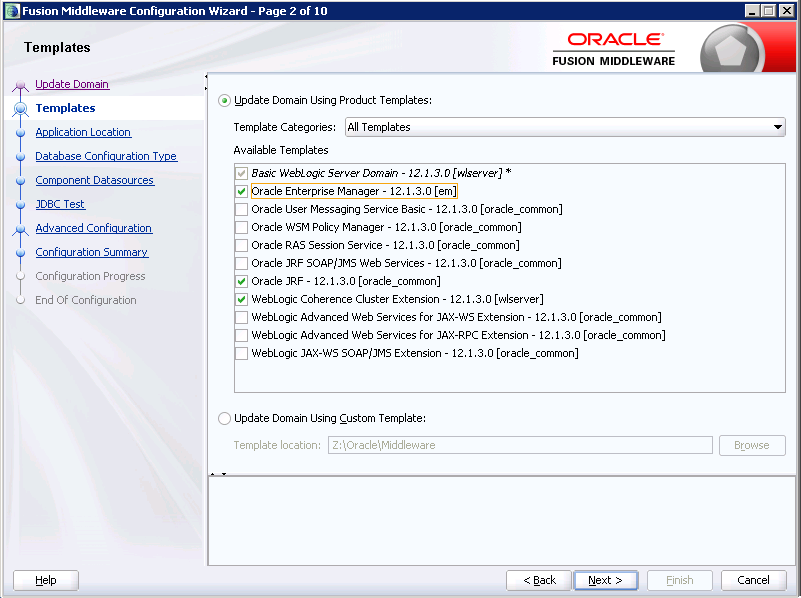

  3. Select the Oracle Enterprise Manager option.

    The other two options will be selected automatically.

    This image is described in surrounding text.

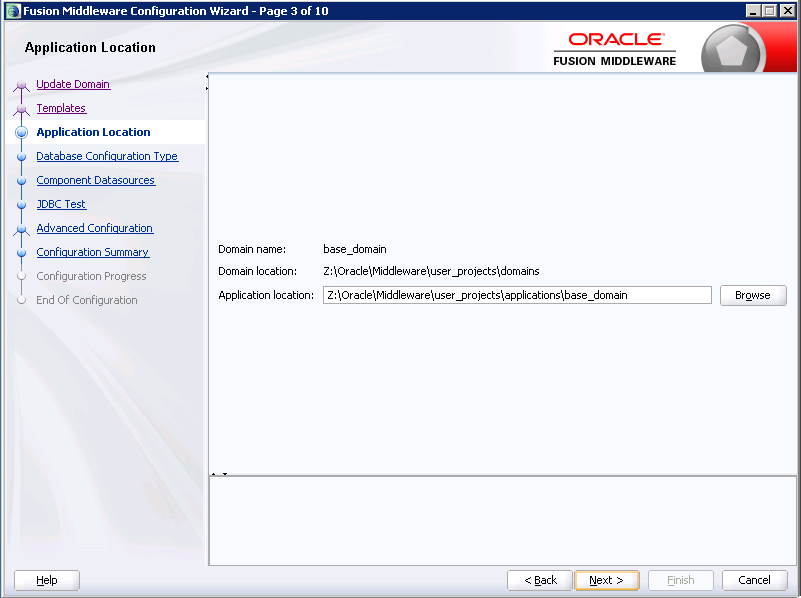

  4. Verify the Domain location, and then click Next.

    This image is described in surrounding text.

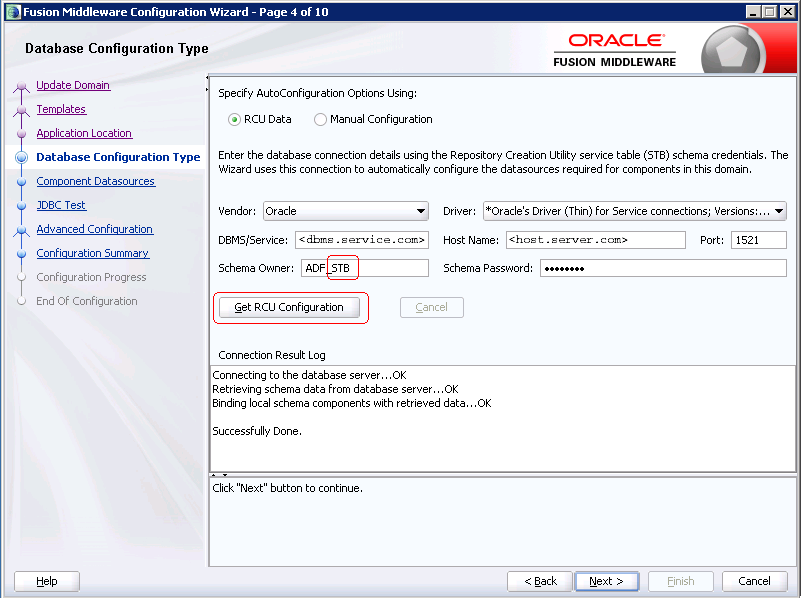

  5. Enter the Database Configuration.

    Be sure to use the prefix_STB schema.

  6. Click Get RCU Configuration to verify the connection.

    This image is described in surrounding text.

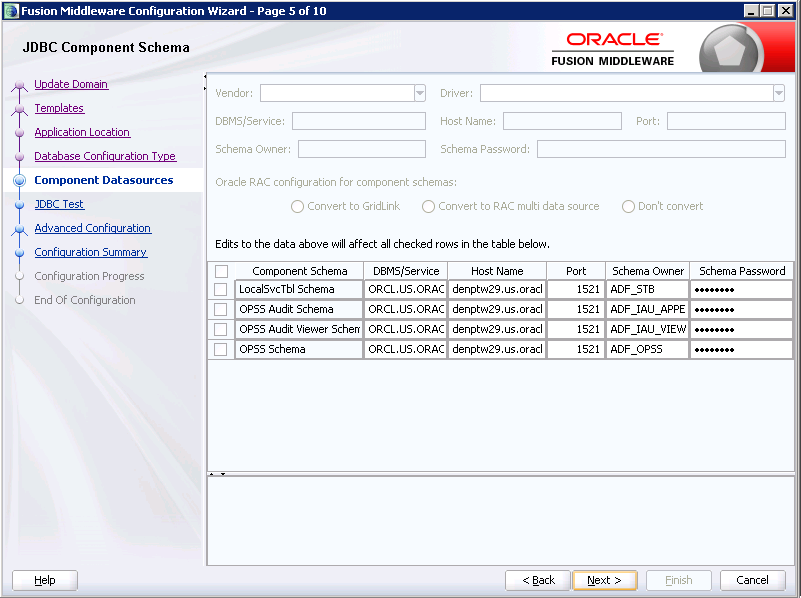

  7. Review the Data Source Components and verify that the connection info is correct.

    This image is described in surrounding text.

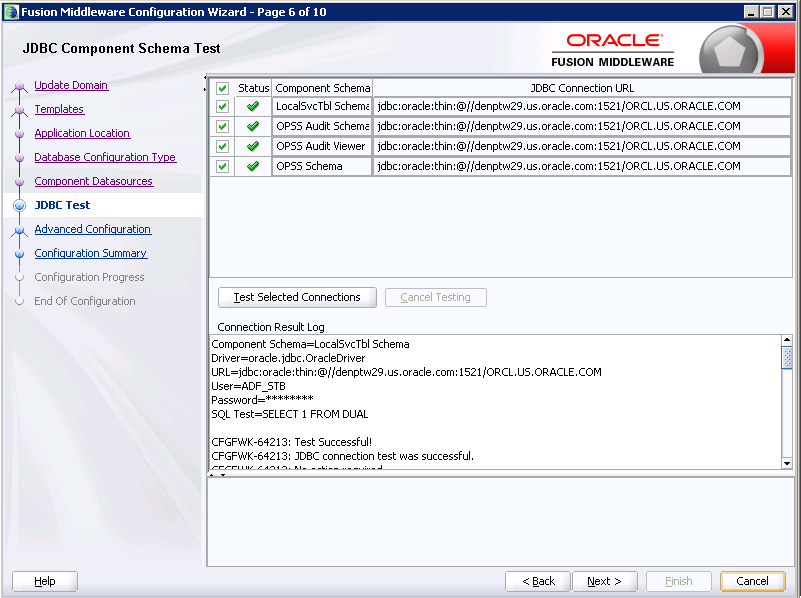

  8. The test connection should return successfully.

    This image is described in surrounding text.

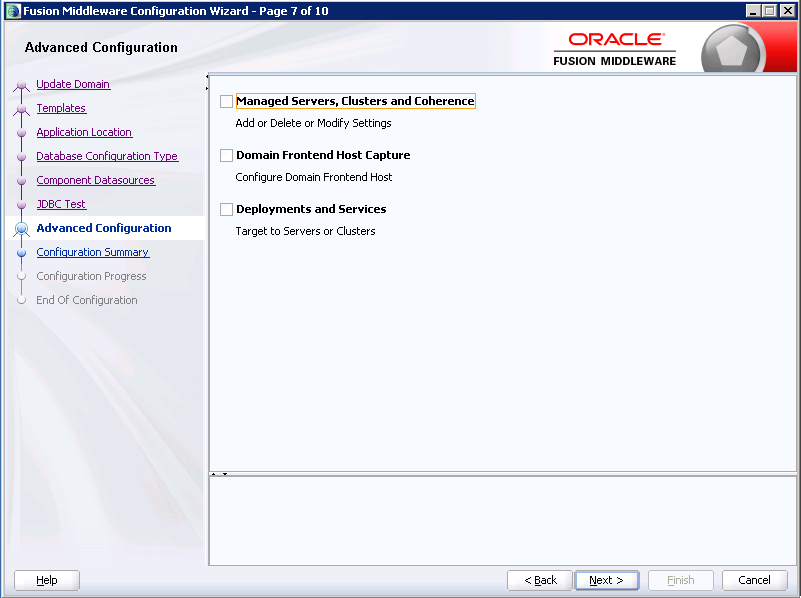

  9. Click Next without selecting any options.

  10. Review the Configuration Summary, and then click Update.

    This image is described in surrounding text.

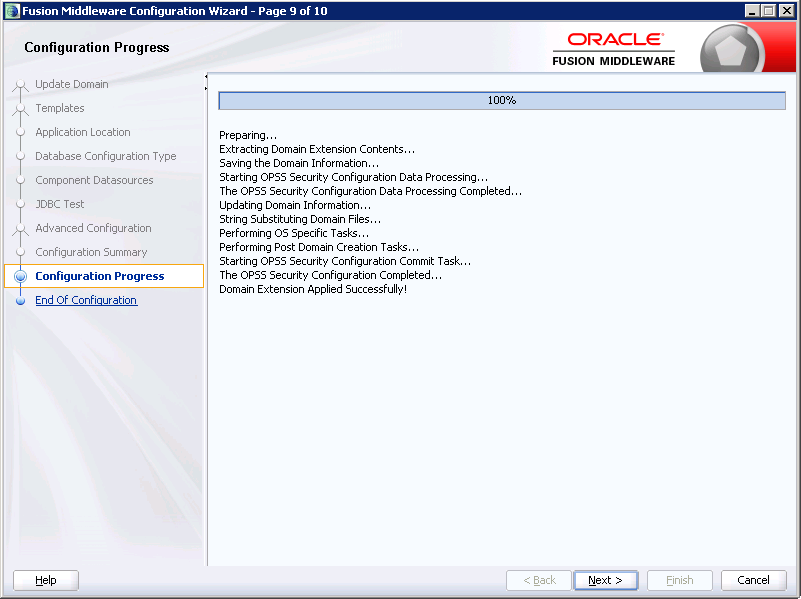

  11. Click Next when the upgrade process is completed.

    This image is described in surrounding text.

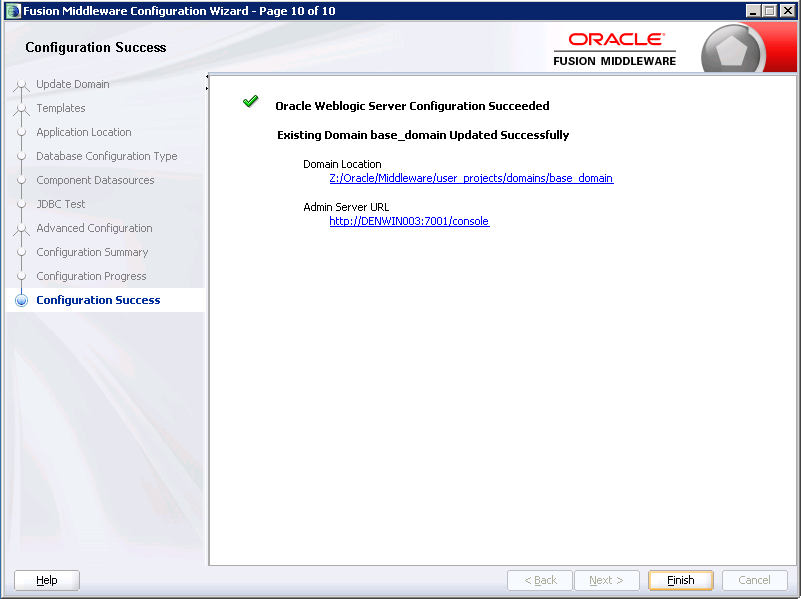

  12. Click Finish to exit the installer.
