Configure the WLOC Resource Environment

In a WLOC environment, resource pools provide a virtual environment in which you can deploy WLOC services. Each resource pool provides access to physical computing resources (such as CPU cycles, memory, and disk space) and pre-installed software that a service needs to run.

To establish a WLOC resource environment, you need to configure a controller and one or more agents. You can do so using the WLOC Configuration Wizard. When you configure an Agent, you configure its resource pool. When you configure the Controller, you bind it to the Agents so that it can get information about the resources and deploy services accordingly.

The Controller also hosts the WLOC Administration Console which provides a graphical interface into the WLOC environment.

Step 1: Install and Create the Plain Agent

A Plain Agent manages the computing resources for the physical machine on which the Agent is installed. You can configure a Plain Agent to allocate all or a subset of the available machine resources to WLOC services.

Install the Plain Agent

The Plain Agent is installed as part of a complete WLOC installation, or can be selected individually using the Custom installation option. For details about installing WLOC, see the WLOC Installation Guide.

Create the Plain Agent

To create the Plain Agent, use the WLOC Configuration Wizard and complete the following steps:

From the Start Menu, select Start > WebLogic Operations Control 1.0 > WLOC Configuration Wizard.

In the Welcome window, click Next.
In the Choose Controller or Agent window, select Create a new Agent for this host and click Next.

In the Enter Agent Directory Location window, specify the path and file name for the Agent and click Next.

By default, this directory is created in BEA_HOME\user_projects\agent1, but you can specify any name and directory location you choose.

Note that we used C:\BEAHOME as the BEA_HOME directory when we installed the WLOC software, therefore that BEA_HOME value is displayed as the default.

For this example, we accept the default C:\BEAHOME\user_projects location, and change the name of the directory to PlainAgent.

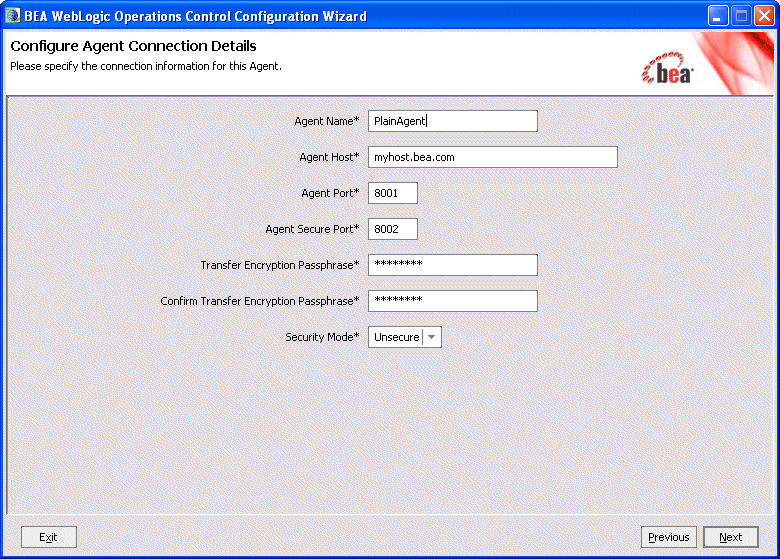

In the Configure Agent Connection Details window, specify the following connection information for the Agent:

Table 2-1 Agent Connection Information
In this field . . .	Enter the following value . . .
Agent Name	PlainAgent
Agent Host	The URL for the host machine. In this example we use `myhost.bea.com`.
Agent Port	8001 (the default)
Agent Secure Port	8002 (the default)
Transfer Encryption Passphrase	Default
Confirm Transfer Encryption Passphrase	Default
Security Mode	Unsecure (default)

Click Next in the following two windows to accept the defaults:

Configure Agent Logging
Configure Agent Keystore Passwords

In the Configure Agent Type window, select Plain Agent and click Next.

In the Configure Plain Agent (1 of 2) window, provide a name for the resource pool associated with this Agent and the CPU capacity available to the resource pool, as shown in the following table:

Table 2-2 Plain Agent Resource Pool Configuration
In this field . . .	Enter the following value . . .
Resource Pool Name	plain-resource-pool
Description	plain resource pool
CPU capacity (MHz)	512
Stdout Directory	Accept the default
Stderr Directory	Accept the default

In the Configure Plain Agent (2 of 2) window, you specify the available software you want to include in the resource pool. For this example, do not specify any additional software and click Next.

In the Create Agent Configuration window, click Create.

After the Agent has been created, click Done to exit the WLOC Configuration Wizard.

Agent Directory Structure

After completing the Plain Agent installation and creation, the following directory structure is created in the C:\BEAHOME\user_projects\PlainAgent directory.

Table 2-3 Agent Directory Description
Directory	Description
`bin`	Commands to start the Agent, and to install and remove the Agent as a Windows service.
`config`	Agent configuration files.
`keys`	Encryption key used to encrypt clear text passwords.
`logs`	Agent log files.
`ssl`	Internal digital certificate and keystores for the Agent used for SSL communication with the Controller.

Agent Configuration File

When you create an Agent using the WLOC Configuration Wizard, the configuration is persisted in an XML file named loc-agent-config.xml. In this example, the file is created in the following directory:

BEAHOME is the BEA Home directory containing the WLOC installation, and PlainAgent is the name that we specified for the Agent Directory location in the Configuration Wizard.

After you have created the Agent using the Configuration Wizard, it can be modified using the Administration Console or by directly editing its configuration file.

<?xml version="1.0" encoding="UTF-8"?><loc-agent xmlns="bea.com/loc/agent" xmlns:loc="http://bea.com/loc">
  <name>PlainAgent</name>
  <description>PlainAgent</description>
  <network>
    <loc:host>myhost.bea.com</loc:host>
    <loc:components>
      <loc:component>
        <loc:name>ListenPorts</loc:name>
        <loc:description>ListenPorts</loc:description>
        <loc:port>8001</loc:port>
        <loc:secure-port>8002</loc:secure-port>
      </loc:component>
    </loc:components>
  </network>
  <use-secure-connections>false</use-secure-connections>
  <logging>
    <loc:file-severity>Info</loc:file-severity>
    <loc:base-file-name>C:/BEAHOME/user_projects/PlainAgent/logs/Agent.log</loc:base-file-name>
    <loc:rotation-type>BySize</loc:rotation-type>
    <loc:rotation-size>5000</loc:rotation-size>
    <loc:rotation-time>00:00</loc:rotation-time>
    <loc:file-rotation-dir>./logs/logrotdir</loc:file-rotation-dir>
    <loc:number-of-files-limited>true</loc:number-of-files-limited>
    <loc:rotated-file-count>5</loc:rotated-file-count>
    <loc:rotation-time-span>24</loc:rotation-time-span>
    <loc:rotation-time-span-factor>3500000</loc:rotation-time-span-factor>
    <loc:rotation-on-startup-enabled>true</loc:rotation-on-startup-enabled>
    <loc:stdout-severity>Info</loc:stdout-severity>
  </logging>
  <audit>
    <loc:base-file-name>./logs/audit.log</loc:base-file-name>
    <loc:rotation-type>BySize</loc:rotation-type>
    <loc:rotation-size>300</loc:rotation-size>
    <loc:rotation-time>00:00</loc:rotation-time>
    <loc:file-rotation-dir>./logs/logrotdir</loc:file-rotation-dir>
    <loc:number-of-files-limited>true</loc:number-of-files-limited>
    <loc:rotated-file-count>50</loc:rotated-file-count>
    <loc:rotation-time-span>24</loc:rotation-time-span>
    <loc:rotation-time-span-factor>50</loc:rotation-time-span-factor>
    <loc:rotation-on-startup-enabled>true</loc:rotation-on-startup-enabled>
    <loc:enabled>true</loc:enabled>
    <loc:scope>
      <loc:type>All</loc:type>
    </loc:scope>
  </audit>
  <work-managers>
    <loc:work-manager>
      <loc:name>WM</loc:name>
      <loc:description>WM</loc:description>
      <loc:max-threads-constraint>64</loc:max-threads-constraint>
      <loc:min-threads-constraint>3</loc:min-threads-constraint>
    </loc:work-manager>
    <loc:work-manager>
      <loc:name>ResourceBrokerAgent-WM</loc:name>
      <loc:description>ResourceBrokerAgent-WM</loc:description>
      <loc:max-threads-constraint>15</loc:max-threads-constraint>
      <loc:min-threads-constraint>3</loc:min-threads-constraint>
    </loc:work-manager>
    <loc:work-manager>
      <loc:name>AgentRuntime-WM</loc:name>
      <loc:description>AgentRuntime-WM</loc:description>
      <loc:max-threads-constraint>15</loc:max-threads-constraint>
      <loc:min-threads-constraint>3</loc:min-threads-constraint>
    </loc:work-manager>
  </work-managers>
  <encryption>
    <password>{Salted-3DES}zwrq/caNuFEi4S5AeAAl1A==</password>
  </encryption>
  <resource-pools>
    <plain-resource-pool>
      <name>plain-resource-pool</name>
      <description>plain resource pool</description>
      <cpu-capacity>512</cpu-capacity>
      <stdout-dir>C:\BEAHOME\user_projects\PlainAgent\stdout</stdout-dir>
      <stderr-dir>C:\BEAHOME\user_projects\PlainAgent\stderr</stderr-dir>
    </plain-resource-pool>
  </resource-pools>
</loc-agent>

Step 2: Install and Create the Controller

Every WLOC environment includes a single Controller and one or more Agents. The Controller is the central component that gathers data about the operating environment from Agents. The Controller uses the data that it gathers to intelligently deploy new services and to evaluate and enforce policies for all services in the environment. The Controller also hosts the WLOC Administration Console.

After you install the Controller, you configure it using the WLOC Configuration Wizard.

Although you can install the Agent and the Controller on different physical machines, in this example, the Controller is installed on the same machine as the Plain Agent.

Install the Controller

The Controller is installed as part of a complete WLOC installation, or can be selected individually using the Custom installation option. For details about installing WLOC, see the WLOC Installation Guide.

Create the Controller

To create the Controller, use the WLOC Configuration Wizard and complete the following steps:

From the Start Menu, select Start > WebLogic Operations Control 1.0 > WLOC Configuration Wizard.

In the Welcome window, click Next.
In the Choose Controller or Agent window, select Create the Controller or extend the existing Controller for this host and click Next.

In the Enter Controller Directory Location window, we accept the default path and filename for the Controller and click Next.

In the Enter Controller Connection Data window, specify the following connection information for the Controller.

Table 2-4 Controller Connection Information
In this field . . .	Enter the following value . . .
Controller Host	The URL for the host machine (`myhost.bea.com)`
Console Port	9001 (the default)
Console Secure Port	9002 (the default)
Console Mode	Both
Internal Port	9003 (the default)
Internal Secure Port	9004 (the default)
Security Mode	Unsecure (default)

Accept the default options in the following windows and click Next:

Configure Controller Logging
Configure Controller Notifications (1 of 3)
Configure Controller Notifications (2 of 3)
Configure Controller Notifications (3 of 3)

In the Configure Agents for this Controller window, click Add to bind the Plain Agent created previously to this Controller.

The fields are populated with the default data for your machine. Enter the name PlainAgent name in the Name field, accept the defaults for the remaining fields and click Next.

Click Next in the Use SSH for WLOC ESX Agents window. In this example, only a Plain Agent is configured.

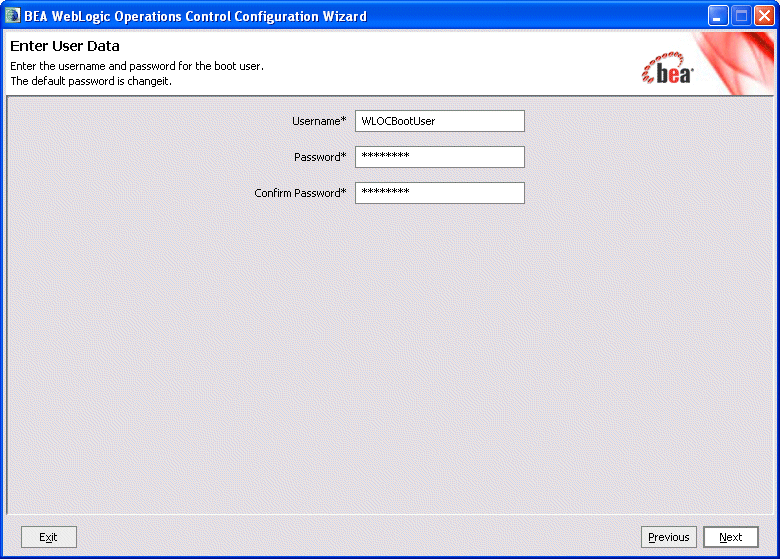

In the Enter User Data window, specify a username and password for the boot user. For this example, accept the defaults. Note that the default username is WLOCBootUser and the default password is changeit:

In the Configure Controller KeyStore Passwords, accept the default passwords and click Next.

In the Create Controller Configuration window, click Create.

After the Controller has been created, click Done to exit the WLOC Configuration Wizard.

Controller Directory Structure

After completing the Controller installation and creation, the following directory structure is created in the C:\BEAHOME\user_projects\controller directory.

Table 2-5 Controller Directory Description
Directory	Description
`bin`	Commands to start the Controller, and to install and remove the Controller as a Windows service.
`config`	Controller configuration files.
`keys`	Encryption keys used to encrypt clear text passwords and data.
`logs`	Controller log files
`ssl`	Internal digital certificate and keystores for the Controller used for SSL communication with the Agents.

Controller Configuration File

When you create a Controller using the WLOC Configuration Wizard, the configuration is persisted in an XML file named loc-controller-config.xml. In this example, the file is created in the following directory:

BEAHOME is the BEA Home directory containing the WLOC installation, and controller is the name that we specified for the Controller Directory location in the Configuration Wizard.

After you have created the Controller using the Configuration Wizard, it can be modified using the Administration Console or by directly editing its configuration file.

The loc-controller-config.xml file created in this example is shown in Listing 2-2

<?xml version="1.0" encoding="UTF-8"?><loc-controller xmlns="bea.com/loc/controller" xmlns:loc="http://bea.com/loc">
  <network>
    <loc:host>host.bea.com</loc:host>
    <loc:components>
      <loc:component>
        <loc:name>Console</loc:name>
        <loc:description>Console</loc:description>
        <loc:port>9001</loc:port>
        <loc:secure-port>9002</loc:secure-port>
      </loc:component>
      <loc:component>
        <loc:name>InternalCommunication</loc:name>
        <loc:description>InternalCommunication</loc:description>
        <loc:port>9003</loc:port>
        <loc:secure-port>9004</loc:secure-port>
      </loc:component>
    </loc:components>
  </network>
  <use-secure-connections>false</use-secure-connections>
  <console-mode>BOTH</console-mode>
  <logging>
    <loc:file-severity>Info</loc:file-severity>
    <loc:base-file-name>C:/BEAHOME/user_projects/controller/logs/Controller.log</loc:base-file-name>
    <loc:rotation-type>BySize</loc:rotation-type>
    <loc:rotation-size>500</loc:rotation-size>
    <loc:rotation-time>00:00</loc:rotation-time>
    <loc:file-rotation-dir>./logs/logrotdir</loc:file-rotation-dir>
    <loc:number-of-files-limited>true</loc:number-of-files-limited>
    <loc:rotated-file-count>5</loc:rotated-file-count>
    <loc:rotation-time-span>24</loc:rotation-time-span>
    <loc:rotation-time-span-factor>3500000</loc:rotation-time-span-factor>
    <loc:rotation-on-startup-enabled>true</loc:rotation-on-startup-enabled>
    <loc:stdout-severity>Info</loc:stdout-severity>
  </logging>
  <audit>
    <loc:base-file-name>./logs/audit.log</loc:base-file-name>
    <loc:rotation-type>BySize</loc:rotation-type>
    <loc:rotation-size>300</loc:rotation-size>
    <loc:rotation-time>00:00</loc:rotation-time>
    <loc:file-rotation-dir>./logs/logrotdir</loc:file-rotation-dir>
    <loc:number-of-files-limited>true</loc:number-of-files-limited>
    <loc:rotated-file-count>50</loc:rotated-file-count>
    <loc:rotation-time-span>24</loc:rotation-time-span>
    <loc:rotation-time-span-factor>50</loc:rotation-time-span-factor>
    <loc:rotation-on-startup-enabled>true</loc:rotation-on-startup-enabled>
    <loc:enabled>true</loc:enabled>
    <loc:scope>
      <loc:type>ControllerConfiguration</loc:type>
      <loc:type>ServiceConfiguration</loc:type>
      <loc:type>Rules</loc:type>
      <loc:type>ControllerAction</loc:type>
      <loc:type>Adjudication</loc:type>
      <loc:type>AgentConfiguration</loc:type>
    </loc:scope>
  </audit>
  <work-managers>
    <loc:work-manager>
      <loc:name>WM</loc:name>
      <loc:description>WM</loc:description>
      <loc:max-threads-constraint>64</loc:max-threads-constraint>
      <loc:min-threads-constraint>3</loc:min-threads-constraint>
    </loc:work-manager>
    <loc:work-manager>
      <loc:name>ResourceBroker-WM</loc:name>
      <loc:description>ResourceBroker-WM</loc:description>
      <loc:max-threads-constraint>15</loc:max-threads-constraint>
      <loc:min-threads-constraint>3</loc:min-threads-constraint>
    </loc:work-manager>
    <loc:work-manager>
      <loc:name>Action-Purge-WM</loc:name>
      <loc:description>Action-Purge-WM</loc:description>
      <loc:max-threads-constraint>15</loc:max-threads-constraint>
      <loc:min-threads-constraint>3</loc:min-threads-constraint>
    </loc:work-manager>
    <loc:work-manager>
      <loc:name>ExecuteEngine-WM</loc:name>
      <loc:description>ExecuteEngine-WM</loc:description>
      <loc:max-threads-constraint>15</loc:max-threads-constraint>
      <loc:min-threads-constraint>3</loc:min-threads-constraint>
    </loc:work-manager>
    <loc:work-manager>
      <loc:name>ProcessRuntime-WM</loc:name>
      <loc:description>ProcessRuntime-WM</loc:description>
      <loc:max-threads-constraint>15</loc:max-threads-constraint>
      <loc:min-threads-constraint>3</loc:min-threads-constraint>
    </loc:work-manager>
    <loc:work-manager>
      <loc:name>Actions-WM</loc:name>
      <loc:description>Actions-WM</loc:description>
      <loc:max-threads-constraint>15</loc:max-threads-constraint>
      <loc:min-threads-constraint>3</loc:min-threads-constraint>
    </loc:work-manager>
  </work-managers>
  <heartbeat-interval>20</heartbeat-interval>
  <reconnect-attempts>3</reconnect-attempts>
  <agents>
    <agent>
      <name>PlainAgent</name>
      <host>host.bea.com</host>
      <port>8001</port>
      <secure-port>8002</secure-port>
      <state>Enabled</state>
      <password>{Salted-3DES}8kenEcTMhnFzQI/LXLZeMQ==</password>
    </agent>
  </agents>
  <lvm-ssh-config>
    <public-key-file/>
  </lvm-ssh-config>
  <notification>
    <smtp>
      <name>LOC EMail Notification Service</name>
      <description>LOC EMail Notification Service</description>
      <to-address>somebody@somecompany.com</to-address>
      <from-address>LOCController@somecompany.com</from-address>
      <smtp-server>smtpserver.somecompany.com</smtp-server>
      <enabled>false</enabled>
    </smtp>
    <jms>
      <name>LOC JMS Notification Service</name>
      <description>LOC JMS Notification Service</description>
      <destination-jndi-name>com.bea.adaptive.loc.notification.JMSNotifier</destination-jndi-name>
      <connection-factory-jndi-name>QueueConnectionFactory</connection-factory-jndi-name>
      <jndi-properties>
        <initial-factory>org.mom4j.jndi.InitialCtxFactory</initial-factory>
        <provider-url>xcp://somehost:9911</provider-url>
        <security-principal>system</security-principal>
        <password>{Salted-3DES}+fzbeHi7Ydhh+A1csPgYPA==</password>
      </jndi-properties>
      <enabled>false</enabled>
    </jms>
    <jmx>
      <name>JMX Notification Service</name>
      <description>JMX Notification Service</description>
      <enabled>false</enabled>
    </jmx>
    <snmp>
      <name>LOC SNMP Notification Service</name>
      <description>LOC SNMP Notification Service</description>
      <agent>
        <name>MySNMPAgent</name>
        <description>MySNMPAgent</description>
        <host>somehost</host>
        <port>2002</port>
        <trap-version>SNMPv2</trap-version>
        <enable-inform>false</enable-inform>
      </agent>
      <trap-destinations>
        <destination>
          <name>testTrapDest</name>
          <description>testTrapDest</description>
          <host>somehost</host>
          <port>1642</port>
          <community>public</community>
          <security-level>noAuthNoPriv</security-level>
        </destination>
      </trap-destinations>
      <enabled>false</enabled>
    </snmp>
  </notification>
</loc-controller>

For information about the elements of the loc-controller-config.xml Controller configuration file, see the Controller Configuration Schema Reference.

What’s Next?

After installing and creating the Plain Agent and Controller, go to Establish the WLOC Runtime Environment, which describes how to start the Agent, the Controller, and the WLOC Administration Console.

Use Case Example
