e-docs > WebLogic Java Adapter for Mainframe > Configuration and Administration Guide > Modifying Your Configuration

Configuration and Administration Guide

 Previous Next Contents Index View as PDF

Modifying Your Configuration

This section contains information on the following subjects



Modifying Your Connectivity Configuration

Once you have configured WebLogic JAM connectivity, you have several options for modifying and updating connectivity information:

Modifying Region Definitions

You can view and modify region definitions in the following ways:

Listing Region Definitions

To list existing region definitions, perform the following steps:




  1. From the WebLogic JAM home page, click the region type for which you want to edit a definition (Batch, CICS, IMS). The List Regions Page displays.




Modifying the Logical Unit Name in a Region

To edit a region definition, perform the following steps:







  1. From the WebLogic JAM home page, click the region type for which you want to edit a definition (Batch, CICS, IMS). The List Regions Page displays.




  2. Click the region definition that you want to edit.




  3. Enter the new Logical Unit parameter.

  4. Click Apply to save your changes.

  5. Cold start the link. For information and instructions on how to cold start the CRM link, see Cold Start.

  6. Restart all WebLogic JAM components that access the region.

Deleting a Region Definition

You can delete a region definition by selecting the associated trash can icon in the WebLogic Administration Console. The trash can icon is enabled only when the region has no linked CRMs. If you try to delete a region that is referenced by a CRM Link entity in the WebLogic JAM configuration, an error message displays, and the region is not deleted.

To delete a region definition, perform the following steps:




  1. From the WebLogic JAM home page, click the region type from which you want to delete a definition (Batch, CICS, IMS). The List Regions Page displays.




  2. Delete any CRM Links that connect to the region to be deleted. For information about deleting CRM Links, see Deleting a CRM Link.

  3. Click the trash can icon.




  4. Click Apply to finish deleting the region definition.

Modifying CRM Definitions

You can view and modify existing CRM definitions in the following ways:

Listing CRM Definitions

To list a CRM definition, perform the following step:




  1. From the WebLogic JAM home page, click CRM. The List CRM page displays.

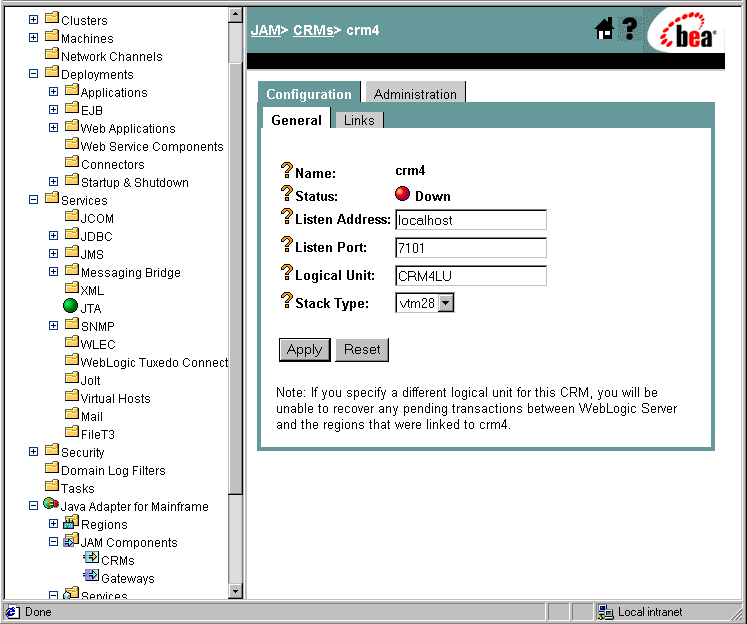

Editing a CRM Definition

To edit a CRM definition, perform the following steps:




  1. From the WebLogic JAM home page, click CRMs. The List CRM page displays.




  2. Click the CRM definition that you want to edit.




  3. Change the CRM parameters to the appropriate values.

  4. Click Apply to save your changes.

Deleting a CRM Definition

You can delete a CRM definition by selecting the associated trash can icon in the WebLogic Administration Console. The trash can icon is enabled only when the CRM has no CRM Links linked to it and if no Gateway is assigned to it. If you try to delete a CRM that is referenced by a CRM Link or Gateway entity in the WebLogic JAM configuration, an error message displays, and the CRM is not deleted.

To delete a CRM definition, perform the following steps:




  1. From the WebLogic JAM home page, click CRMs. The List CRM page displays.




  2. Make sure the associated CRM links are deleted. If the CRM Link is not stopped, see Starting and Stopping CRM Links for instructions on stopping a CRM Link.

  3. Click the trash can icon.




  4. Click Apply to finish deleting the CRM definition.

Modifying CRM Link Definitions

You can view and modify CRM Link definitions in the following ways:

Note: All Gateways connected to a CRM must be restarted if link definitions are changed.

Listing CRM Link Definitions

To list a CRM Link definition, perform the following steps:




  1. From the WebLogic JAM home page, click CRMs. The List CRM page displays.




  2. Click the CRM Links you want to list.




Editing an Existing CRM Link

To edit an existing CRM link, perform the following steps:




  1. From the WebLogic JAM home page, click CRMs. The List CRM page displays.




  2. Click the CRM link you want to edit.




  3. Click the CRM Link name.




  4. Change the CRM Link parameters to the appropriate values.

    If the Deployed box is checked, the link will initialize when the Gateway starts. If the Deployed box is not checked, this link will not initialize or be available for use. The change to the Deployed box is applied when the Gateway is restarted.

  5. Click Apply to save your changes.

Deleting a CRM Link

A CRM Link cannot be deleted if it is active. To delete a CRM Link, perform the following steps:




  1. From the WebLogic JAM home page, click CRMs. The List CRM page displays.




  2. Click the CRM Link you want to delete.




  3. Click the Trash Can icon for the CRM Link you want to delete.




Click Apply to finish deleting the CRM Link.

Modifying Gateway Definitions

You can view and modify Gateway definitions in the following ways:

Listing Gateway Definitions

To list existing Gateways, perform the following step:




  1. From the WebLogic JAM home page, click Gateways. The List Gateways page displays.




Editing a Gateway Definition

To edit a Gateway definition, perform the following steps:




  1. From the WebLogic JAM home page, click Gateways. The List Gateways page displays.







  2. Click the Gateway definition that you want to edit.




  3. Change the Gateway parameters to the appropriate values.

  4. Click Apply to save your changes.

Deleting a Gateway Definition

A Gateway cannot be deleted if it is active. To delete a Gateway definition, perform the following steps:




  1. From the WebLogic JAM home page, click Gateways. The List Gateways page displays.







  2. Click the trash can icon.







  3. Click Apply to finish deleting the Gateway definition.



Modifying Your Application Integration Configuration

The WebLogic Administration Console provides you with the ability to modify your application integration configurations. You have the following options:

Modifying a DPL Service Definition

To modify a DPL service definition, you have the following options:

Editing a DPL Service Definition

To edit a DPL service definition, perform the following steps:




  1. From the WebLogic JAM home page, click DPL Services. The List DPL Services page displays.




  2. Click the DPL Service definition that you want to edit.




  3. Change the DPL Service parameters to the appropriate values.

    A check in the Enabled box makes the service available for use. Removing the check from the Enabled box disables the service.

  4. Click Apply to save your changes.

Deleting a DPL Service Definition

To delete a DPL Service definition, perform the following steps:




  1. From the WebLogic JAM home page, click DPL Services. The List DPL Services page displays.




  2. Click the trash can icon.




  3. Click Apply to finish deleting the DPL Service definition.

Modifying an APPC Service Definition

To modify an APPC service definition, you have the following options:

Editing an APPC Service Definition

To edit an APPC definition, perform the following steps:




  1. From the WebLogic JAM home page, click APPC Services. The List APPC Services page displays.




  2. Click the APPC Service definition that you want to edit.




  3. Change the APPC Service parameters to the appropriate values.

    A check in the Enabled box makes the service available for use. Removing the check from the Enabled box disables the service.

  4. Click Apply to save your changes.

Deleting an APPC Service Definition

To delete a APPC Service definition, perform the following steps:




  1. From the WebLogic JAM home page, click APPC Services. The List APPC Services page displays.




  2. Click the trash can icon.




  3. Click Apply to finish deleting the APPC Service definition.

Modifying an Exported EJB Definition

To modify an exported EJB definition, you have the following options:

Editing an Exported EJB Definition

To edit an exported EJB, perform the following steps:




  1. From the WebLogic JAM home page, click exported EJBs. The List Exported EJBs page displays.




  2. Click the EJB that you want to edit.




  3. Change the EJB parameters to the appropriate values.

    A check in the Local Service Enabled box makes the service available for use. Removing the check from the Local Service Enabled box disables the service.

  4. Click Apply to save your changes.

Deleting an Exported EJB Definition

To delete an exported EJB, perform the following steps:




  1. From the WebLogic JAM home page, click Exported EJBs. The List Exported EJBs page displays.




  2. Click the trash can icon.




  3. Click Apply to finish deleting the EJB.

Modifying a JMS Event Definition

To modify a JMS Event definition, you have the following options:

Editing a JMS Event

To edit a JMS Event, perform the following steps:




  1. From the WebLogic JAM home page, click JMS Events. The List JMS Events page displays.




  2. Click the JMS Event that you want to edit.




  3. Change the JMS Event parameters to the appropriate values.

    A check in the Local Service Enabled box makes the service available for use. Removing the check from the Local Service Enabled box disables the service.

  4. Click Apply to save your changes.

Deleting a JMS Event

To delete a JMS Event, perform the following steps:




  1. From the WebLogic JAM home page, click JMS Events. The List JMS Events page displays.




  2. Click the trash can icon.




  3. Click Apply to finish deleting the JMS Event.

Modifying a WebLogic Integration Event Definition

To modify a WebLogic Integration Event definition, you have the following options:

Editing a WebLogic Integration Event

To edit a WebLogic Integration Event, perform the following steps:




  1. From the WebLogic JAM home page, click WebLogic Integration Events. The List WebLogic Integration Events page displays.




  2. Click the WebLogic Integration Event that you want to edit.




  3. Change the WebLogic Integration parameters to the appropriate values.

    A check in the Local Service Enabled box makes the service available for use. Removing the check from the Local Service Enabled box disables the service.

  4. Click Apply to save your changes.

Deleting a WebLogic Integration Event

To delete a WebLogic Integration Event, perform the following steps:




  1. From the WebLogic JAM home page, click WebLogic Integration Events. The List WebLogic Integration Events page displays.




  2. Click the trash can icon.




  3. Click Apply to finish deleting the WebLogic Integration Event.
