This section looks at the way systemd initially divides each of the default kernel controllers, for example CPU, memory and blkio, into portions called "slices" as illustrated by the following example pie chart:

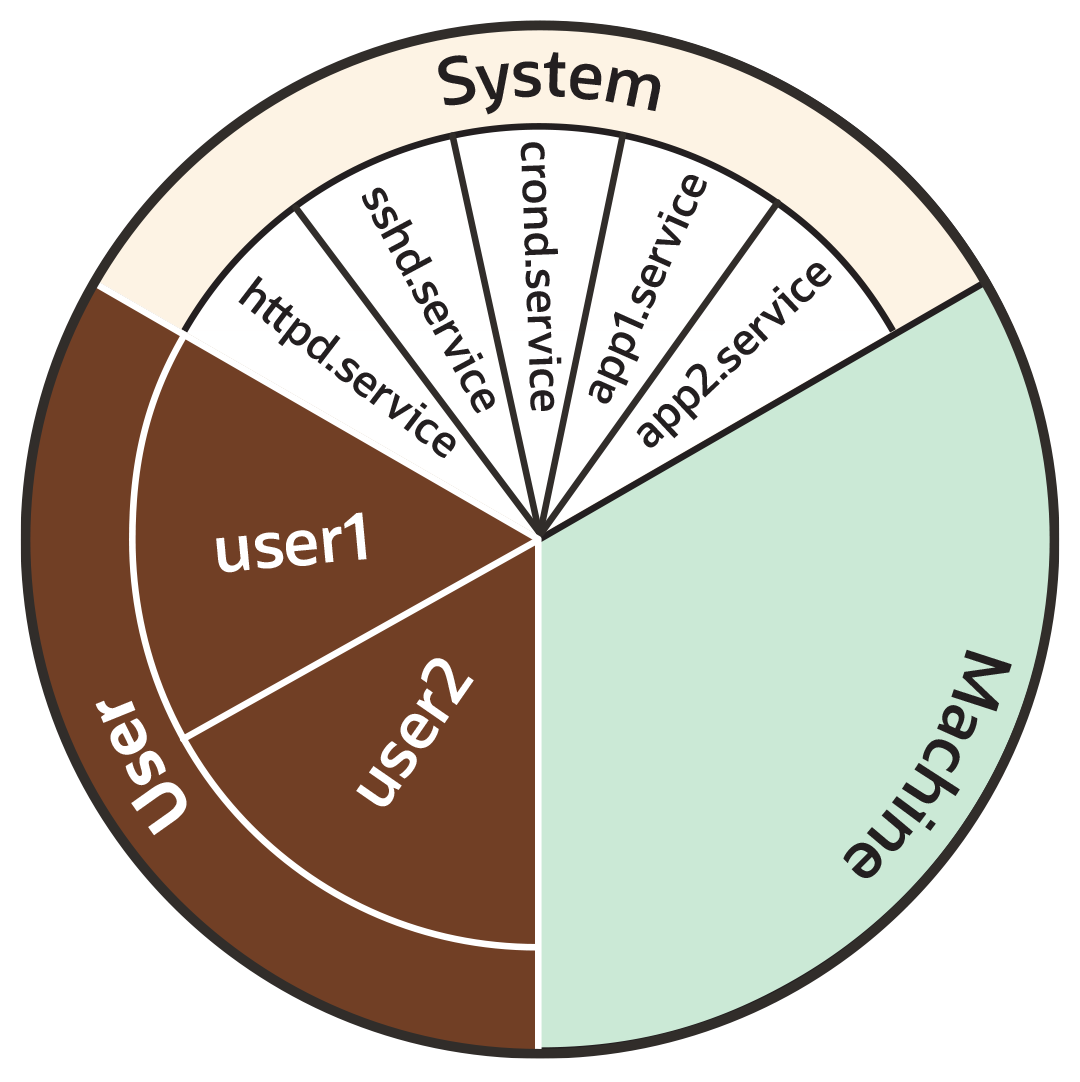

Figure 7-1 Pie chart illustrating distribution in a resource controller, such as CPU or Memory

As the preceding pie chart shows, by default each resource controller is divided equally between the following 3 slices:

• System (system.slice).

• User (user.slice).

• Machine (machine.slice).

The following list looks at each slice more closely. For the purposes of discussion, the examples in the list focus on the CPU controller.

System (system.slice)

This resource slice is used for managing resource allocation amongst daemons and service units.

As shown in the preceding example pie chart, the system slice is divided into further sub-slices. For example, in the case of CPU resources, we might have sub-slice allocations within the system slice that include the following:

• httpd.service (CPUWeight=100)

• sshd.service (CPUWeight =100)

• crond.service (CPUWeight =100)

• app1.service (CPUWeight =100)

• app2.service (CPUWeight =100)

In the preceding list, app1.service and app2.service represent custom application services you might have running on your system.

User (user.slice)

This resource slice is used for managing resource allocation amongst user sessions. A single slice is created for each UID irrespective of how many logins the associated user has active on the server. Continuing with our pie chart example, the sub-slices might be as follows:

• user1 (CPUWeight=100, UID=982)

• user2 (CPUWeight=100, UID=1001)

Machine (machine.slice)

This slice of the resource is used for managing resource allocation amongst hosted virtual machines, such as KVM guests, and Linux Containers. The machine slice is only present on a server if the server is hosting virtual machines or Linux Containers.

The pie chart analogy used in the preceding sections is a helpful way to conceptualize the division of resources into slices. However, in terms of structural organization, the control groups are arranged in a hierarchy. You can view the systemd control group hierarchy on your system by running the systemd-cgls command as follows:

systemd-cgls

Control group /:
-.slice
...
├─user.slice (#1429)
│ → user.invocation_id: 604cf5ef07fa4bb4bb86993bb5ec15e0
│ ├─user-982.slice (#4131)
│ │ → user.invocation_id: 9d0d94d7b8a54bcea2498048911136c8
│ │ ├─session-c1.scope (#4437)
│ │ │ ├─2416 /usr/bin/sudo -u ocarun /usr/libexec/oracle-cloud-agent/plugins/runcommand/runcommand
│ │ │ └─2494 /usr/libexec/oracle-cloud-agent/plugins/runcommand/runcommand
│ │ └─user@982.service … (#4199)
│ │   → user.delegate: 1
│ │   → user.invocation_id: 37c7aed7aa6e4874980b79616acf0c82
│ │   └─init.scope (#4233)
│ │     ├─2437 /usr/lib/systemd/systemd --user
│ │     └─2445 (sd-pam)
│ └─user-1001.slice (#7225)
│   → user.invocation_id: ce93ad5f5299407e9477964494df63b7
│   ├─session-2.scope (#7463)
│   │ ├─20304 sshd: oracle [priv]
│   │ ├─20404 sshd: oracle@pts/0
│   │ ├─20405 -bash
│   │ ├─20441 systemd-cgls
│   │ └─20442 less
│   └─user@1001.service … (#7293)
│     → user.delegate: 1
│     → user.invocation_id: 70284db060c1476db5f3633e5fda7fba
│     └─init.scope (#7327)
│       ├─20395 /usr/lib/systemd/systemd --user
│       └─20397 (sd-pam)
├─init.scope (#19)
│ └─1 /usr/lib/systemd/systemd --switched-root --system --deserialize 28
└─system.slice (#53)
 ...
  ├─dbus-broker.service (#2737)
  │ → user.invocation_id: 2bbe054a2c4d49809b16cb9c6552d5a6
  │ ├─1450 /usr/bin/dbus-broker-launch --scope system --audit
  │ └─1457 dbus-broker --log 4 --controller 9 --machine-id 852951209c274cfea35a953ad2964622 --max-bytes 536870912 --max-fds 4096 --max-matches 131072 --audit
 ...
  ├─chronyd.service (#2805)
  │ → user.invocation_id: e264f67ad6114ad5afbe7929142faa4b
  │ └─1482 /usr/sbin/chronyd -F 2
  ├─auditd.service (#2601)
  │ → user.invocation_id: f7a8286921734949b73849b4642e3277
  │ ├─1421 /sbin/auditd
  │ └─1423 /usr/sbin/sedispatch
  ├─tuned.service (#3349)
  │ → user.invocation_id: fec7f73678754ed687e3910017886c5e
  │ └─1564 /usr/bin/python3 -Es /usr/sbin/tuned -l -P
  ├─systemd-journald.service (#1837)
  │ → user.invocation_id: bf7fb22ba12f44afab3054aab661aedb
  │ └─1068 /usr/lib/systemd/systemd-journald
  ├─atd.service (#3961)
  │ → user.invocation_id: 1c59679265ab492482bfdc9c02f5eec5
  │ └─2146 /usr/sbin/atd -f
  ├─sshd.service (#3757)
  │ → user.invocation_id: 57e195491341431298db233e998fb180
  │ └─2097 sshd: /usr/sbin/sshd -D [listener] 0 of 10-100 startups
  ├─crond.service (#3995)
  │ → user.invocation_id: 4f5b380a53db4de5adcf23f35d638ff5
  │ └─2150 /usr/sbin/crond -n
  ...

The preceding sample output shows how all "*.slice" control groups reside under the root slice -.slice. Beneath the root slice you can see the user.slice and system.slice control groups, each with their own child cgroup sub-slices.

Examining the systemd-cgls command output you can see how, with the exception of root -.slice , all processes are on leaf nodes. This arrangement is enforced by cgroups v2, in a rule called the "no internal processes" rule. See cgroups (7) for more information about the "no internal processes" rule.

The output in the preceding systemd-cgls command example also shows how slices can have descendent child control groups that are systemd scopes. systemd scopes are reviewed in the following section.

systemd scope is a systemd unit type that groups together system service worker processes that have been launched independently of systemd. The scope units are transient cgroups created programmatically using the bus interfaces of systemd.

For example, in the following sample code, the user with UID 1001 has run the systemd-cgls command, and the output shows session-2.scope has been created for processes the user has spawned independently of systemd (including the process for the command itself , 21380 sudo systemd-cgls):

sudo systemd-cgls

Working directory /sys/fs/cgroup:
...
├─user.slice (#1429)
│ → user.invocation_id: 604cf5ef07fa4bb4bb86993bb5ec15e0
│ → trusted.invocation_id: 604cf5ef07fa4bb4bb86993bb5ec15e0
...
│ └─user-1001.slice (#7225)
│   → user.invocation_id: ce93ad5f5299407e9477964494df63b7
│   → trusted.invocation_id: ce93ad5f5299407e9477964494df63b7
│   ├─session-2.scope (#7463)
│   │ ├─20304 sshd: oracle [priv]
│   │ ├─20404 sshd: oracle@pts/0
│   │ ├─20405 -bash
│   │ ├─21380 sudo systemd-cgls
│   │ ├─21382 systemd-cgls
│   │ └─21383 less
│   └─user@1001.service … (#7293)
│     → user.delegate: 1
│     → trusted.delegate: 1
│     → user.invocation_id: 70284db060c1476db5f3633e5fda7fba
│     → trusted.invocation_id: 70284db060c1476db5f3633e5fda7fba
│     └─init.scope (#7327)
│       ├─20395 /usr/lib/systemd/systemd --user
│       └─20397 (sd-pam)

systemd provides the following methods for setting resource controller options, such as CPUWeight, CPUQuota, and so on, to customize resource allocation on your system:

• Using service unit files.

• Using drop-in files.

• Using the systemctl set-property command.

The following sections provide example procedures for using each of these methods to configure resources and slices in your system.

1. Create file /etc/systemd/system/myservice1.service with the following content:

   [Service]
   Type=oneshot
   ExecStart=/usr/lib/systemd/generate_load.sh
   TimeoutSec=0
   StandardOutput=tty
   RemainAfterExit=yes

   [Install]
   WantedBy=multi-user.target

2. The service created in the preceding step requires a bash script /usr/lib/systemd/generate_load.sh. Create the file with the following content:

   #!/bin/bash
   for i in {1..4};do while : ; do : ; done & done

3. Make the script runnable:

   sudo chmod +x /usr/lib/systemd/generate_load.sh

4. Enable and start the service:

   sudo systemctl enable myservice1 --now

5. Run the systemd-cgls command and confirm the service myservice1 is running under system.slice:

   systemd-cgls

   Control group /:
   -.slice
   ...
   ├─user.slice (#1429)
   ...
   └─system.slice (#53)
     ...
     ├─myservice1.service (#7939)
     │ → user.invocation_id: e227f8f288444fed92a976d391e6a897
     │ ├─22325 /bin/bash /usr/lib/systemd/generate_load.sh
     │ ├─22326 /bin/bash /usr/lib/systemd/generate_load.sh
     │ ├─22327 /bin/bash /usr/lib/systemd/generate_load.sh
     │ └─22328 /bin/bash /usr/lib/systemd/generate_load.sh
     ├─pmie.service (#4369)
     │ → user.invocation_id: 68fcd40071594481936edf0f1d7a8e12
      ...

6. Create a custom slice for the service.

   Add the line Slice=my_custom_slice.slice to the [Service] section in the myservice1.service file, created in a previous step, as shown in the following code block:

   [Service]
   Slice=my_custom_slice.slice
   Type=oneshot
   ExecStart=/usr/lib/systemd/generate_load.sh
   TimeoutSec=0
   StandardOutput=tty
   RemainAfterExit=yes

   [Install]
   WantedBy=multi-user.target


   Attention:

   Use underscores instead of dashes to separate terms in slice names.

   In systemd, a dash in a slice name is a special character: in systemd, dashes in slice names are used to describe the full cgroup path to the slice (starting from the root slice). For example, if you specify a slice name as "my-custom-slice.slice", instead of creating a slice of that name, systemd creates the following cgroups path underneath the root slice: my.slice/my-custom.slice/my-custom-slice.slice.

7. After editing the file, ensure systemd reloads its configuration files and then restart the service:

   sudo systemctl daemon-reload
   sudo systemctl restart myservice1

8. Run the systemd-cgls command and confirm the service myservice1 is now running under custom slice my_custom_slice:

   systemd-cgls

   Control group /:
   -.slice
   ...
   ├─user.slice (#1429)
   ...
   ├─my_custom_slice.slice (#7973)
   │ → user.invocation_id: a8a493a8db1342be85e2cdf1e80255f8
   │ └─myservice1.service (#8007)
   │   → user.invocation_id: 9a4a6171f2844e479d4a0f347aac38ce
   │   ├─22385 /bin/bash /usr/lib/systemd/generate_load.sh
   │   ├─22386 /bin/bash /usr/lib/systemd/generate_load.sh
   │   ├─22387 /bin/bash /usr/lib/systemd/generate_load.sh
   │   └─22388 /bin/bash /usr/lib/systemd/generate_load.sh
   ├─init.scope (#19)
   │ └─1 /usr/lib/systemd/systemd --switched-root --system --deserialize 28
   └─system.slice (#53)
     ├─irqbalance.service (#2907)
     │ → user.invocation_id: 00d64c9b9d224f179496a83536dd60bb
     │ └─1464 /usr/sbin/irqbalance --foreground
    ...


1. Create the directory for your service drop-in file.

   Tip:

   The "drop-in" directory for drop-in files for a service is located at /etc/systemd/system/service_name.service.d where service_name is the name of the service.

   Continuing with our example with service myservice1, we would run the following command:

   sudo mkdir -p /etc/systemd/system/myservice1.service.d/


2. Create 2 drop-in files called 00-slice.conf and 10-CPUSettings.conf in the myservice1.service.d directory created in the preceding step.

   Note:

   • Multiple drop-in files with different names are applied in lexicographic order.

   • These drop-in files take precedence over the service unit file.

3. Add the following contents to 00-slice.conf

   [Service]
   Slice=my_custom_slice2.slice
   MemoryAccounting=yes
   CPUAccounting=yes


4. And add the following contents to 10-CPUSettings.conf

   [Service]
   CPUWeight=200


5. Create a second service (myservice2) and assign it a different CPUWeight to that assigned to myservice1:
   1. Create file /etc/systemd/system/myservice2.service with the following contents:

      [Service]
      Slice=my_custom_slice2.slice
      Type=oneshot
      ExecStart=/usr/lib/systemd/generate_load2.sh
      TimeoutSec=0
      StandardOutput=tty
      RemainAfterExit=yes

      [Install]
      WantedBy=multi-user.target

   2. The service created in the preceding step requires a bash script /usr/lib/systemd/generate_load2.sh. Create the file with the following content:

      #!/bin/bash
      for i in {1..4};do while : ; do : ; done & done

   3. Make the script runnable:

      sudo chmod +x /usr/lib/systemd/generate_load2.sh

   4. Create a drop in file /etc/systemd/system/myservice2.service.d/10-CPUSettings.conf for myservice2 with the following contents:

      [Service]
      CPUWeight=400


6. Ensure systemd reloads its configuration files, and restart myservice1, and also enable and start myservices2:

   sudo systemctl daemon-reload
   sudo systemctl restart myservice1
   sudo systemctl enable myservice2 --now

7. Run the systemd-cgtop command to display control groups ordered by their resource usage. You can see from the following sample output how, in addition to the resource usage of each slice, the systemd-cgtop command displays resource usage breakdown within each slice, so you can use it to confirm your CPU weight has been divided as expected.

   systemd-cgtop

   Control Group                                     Tasks   %CPU   Memory  Input/s Output/s
   /                                                   228  198.8   712.5M        -        -
   my_custom_slice2.slice                                8  198.5     1.8M        -        -
   my_custom_slice2.slice/myservice2.service             4  132.8   944.0K        -        -
   my_custom_slice2.slice/myservice1.service             4   65.6   976.0K        -        -
   user.slice                                           18    0.9    43.9M        -        -
   user.slice/user-1001.slice                            6    0.9    13.7M        -        -
   user.slice/user-1001.slice/session-2.scope            4    0.9     9.4M        -        -
   system.slice                                         60    0.0   690.8M        -        -


/etc/systemd/system.control

1. Continuing with our example, create another service file at location /etc/systemd/system/myservice3.service with the following content:

   [Service]
   Type=oneshot
   ExecStart=/usr/lib/systemd/generate_load3.sh
   TimeoutSec=0
   StandardOutput=tty
   RemainAfterExit=yes
   [Install]
   WantedBy=multi-user.target

2. Set the slice for the service to be my_custom_slice2 (the same slice used by the services created in from earlier steps) by adding the following line to the [Service] section in the myservice3.service file:

   Slice=my_custom_slice2.slice

   Note:

   The slice must be set in the service-unit file because the systemctl set-property command does not recognize the Slice property.

3. The service created in the preceding step requires a bash script /usr/lib/systemd/generate_load3.sh. Create the file with the following content:

   #!/bin/bash
   for i in {1..4};do while : ; do : ; done & done

4. Make the script runnable:

   sudo chmod +x /usr/lib/systemd/generate_load3.sh

5. Ensure systemd reloads its configuration files, and then enable and start the service:

   sudo systemctl daemon-reload
   sudo systemctl enable myservice3 --now

6. Run systemd-cgtop to confirm all 3 services, myservice1, myservice2, and myservice3, are all running in the same slice.
7. Use systemctl set-property command to set the CPUWeight for myservice3 to 800:

   sudo systemctl set-property myservice3.service CPUWeight=800

8. Confirm that a drop-in file has been created for you under /etc/systemd/system.control/myservice3.service.d. However, you must not edit the file:

   cat /etc/systemd/system.control/myservice3.service.d/50-CPUWeight.conf

   # This is a drop-in unit file extension, created via "systemctl set-property"
   # or an equivalent operation. Do not edit.
   [Service]
   CPUWeight=800


9. Ensure systemd reloads its configuration files, and restart all the services:

   sudo systemctl daemon-reload
   sudo systemctl restart myservice1
   sudo systemctl restart myservice2
   sudo systemctl restart myservice3

10. Run the systemd-cgtop command to confirm your CPU weight has been divided as expected:

    systemd-cgtop

    Control Group                                         Tasks   %CPU   Memory  Input/s Output/s
    /                                                       235  200.0   706.1M        -        -
    my_custom_slice2.slice                                   12  198.4     2.9M        -        -
    my_custom_slice2.slice/myservice3.service                 4  112.7   976.0K        -        -
    my_custom_slice2.slice/myservice2.service                 4   56.9   996.0K        -        -
    my_custom_slice2.slice/myservice1.service                 4   28.8   988.0K        -        -
    user.slice                                               18    0.9    44.1M        -        -
    user.slice/user-1001.slice                                6    0.9    13.9M        -        -
    user.slice/user-1001.slice/session-2.scope                4    0.9     9.5M        -        -
