Use the Dynamic Converter New HTML Conversion Template Form to create a new HTML Conversion Template. To access this page, click Create New Template on the Dynamic Converter Admin page.

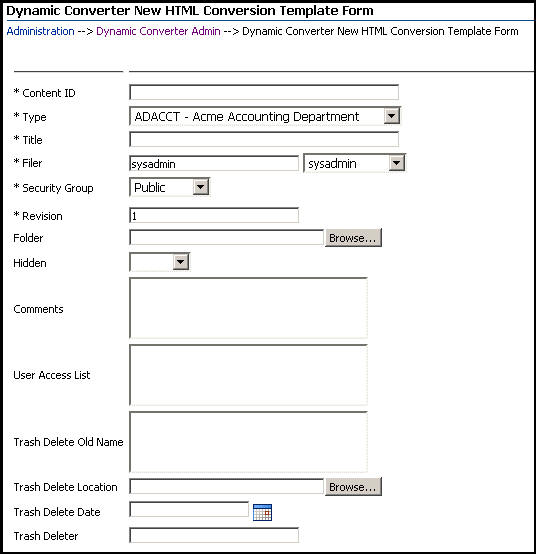

Figure 31-1 New HTML Conversion Template Form

Description of "Figure 31-1 New HTML Conversion Template Form"

Note:

For more information about checking content into the Content Server, see Using Oracle WebCenter Content.

To create a new HTML Conversion template:

1. Open the Dynamic Converter Admin page.
2. Click Create New Template.
3. Specify all other required metadata for the template.
4. When you have completed the form, click Check In to check the HTML Conversion template file into the Content Server.

1. Open the Dynamic Converter Admin page.
2. Click Edit Existing Template.
3. On the Edit Templates page, select a template from the list of HTML Conversion templates in the Content Server.

   If a known HTML Conversion template is not included in the list of available templates, then it was most likely not assigned the correct HTML Conversion Template type when it was checked into the Content Server (see Checking In a Template). You then need to open the content information page of the checked-in template and update its template type.

   The Edit Template button does not become available until you specify the name of an existing template.

4. Click the Edit Template button. The HTML Conversion Template Editor is downloaded to your machine. With some browsers, such as Firefox, you may be prompted for how to handle the file dc_hcmapedit.jnlp. The correct way to open this file is with Java (TM) Web Start Launcher (default).

   The Template Editor is started. If you have not run the editor before, it is installed first and you may need to confirm a few prompts.

The top item in the left-hand navigation pane of the HTML Conversion Editor allows you to set up custom formatting for different file types. Each file type uses a layout, either the default layout, or one created under Output Page Layouts. The exported files will use the same template as the root conversion.

These file types have slightly different options for formatting:

• Text/Word Processing: Allows you to set options for bullets, footnotes and endnotes, handling character styles and embedded graphics, and setting pagination.

• Spreadsheets: Allows you to set up section formatting and labeling, display grid lines, and size embedded graphics.

• Presentations: Allows you to set up section formatting and labeling, and size slides.

• Images: Allows you to set up section formatting and labeling, and size images.

• Archives: Allows you to display either Filenames (the names of files and folders in the archive will be output) or Decompressed files (the file names will be output as links to the exported files). The exported files use the same template as the root conversion.

• Database: Allows you to set up section formatting and labeling, and set the number of records per page.

This item allows you to add predefined and custom properties. You can assign default values, metatag names, and output format to these properties

By default, no document properties are defined. In order to include them in the output from the conversion, each document property must first be defined here. They must then be added to the output from the conversion by inserting them into page layouts defined in the Output Page Layouts item.The most common predefined properties are as follows:

• Primary author

• Title

• Subject

• Keywords

• Content

Several more less common predefined properties are also available.

For a custom property, you can create a descriptive name, and then assign default values, metatag names, and output formats.

Text elements allow the user to insert strings into the output. Each text element is defined as a name-value pair with an optional output format that will be used to format the text.

If an output format is not specified, the text will be inserted into the output as-is, with no additional markup.

Navigation elements allow you to have navigation links generated in the output. There are three kinds of navigation elements:

• Document Navigation: This allows you to link to various items in the source document based on the document's structure. A common example of how one would use this type of navigation is to create links to all the paragraphs marked with outline level 1 (such as "Heading 1" paragraphs) in the document. Before using this form of navigation, link mapping rules must first be added. Link mapping rules establish which parts of the input document will be used to create links.

• Page Navigation: This provides a way to link to certain key pages in the output (first page, next page, and so forth). It also provides a way to link to external pages.

• Section Navigation: This provides navigation for multi-section documents, such as spreadsheets and presentations.

Once you have added one of these, the left hand side of the editor displays expanded levels. You can specify information about the link, link set markup and formatting, and create link mapping rules. Link mapping rules allow you to match on a paragraph outline level or paragraph style name in order to generate navigation based on these two aspects of the source document. Once you define rules, click back on the Link Mapping Rules page to determine the sequence of the rules. The mapping rules are ordered so that the first rule that matches is the one that is applied.

There are six major categories that you can configure:

• HTML Settings: Allows you to set the HTML DOCTYPE and Language string.

• CSS options: Allows you to specify whether Cascading Style Sheet ("CSS") formatting will be used, and if so, the method of CSS presentation. By default, the CSS is embedded in the HTML of each output file. You may also choose to output CSS styles in a separate file. The external stylesheet option allows you to specify a stylesheet with user-generated styles that will be referenced by the conversion.

• Character set: Allows you to specify which character set should be used in the output file. Source documents that contain characters from many character sets will look best only when this option is set to Unicode or UTF-8. You may also select a character to be used when a character cannot be found in the output character set (unmappable).

• Graphics output: Allows you to specify the format of the graphics produced by the technology: GIF, JPG, PNG, or none. Other options in this section allow you to specify quality and sizing of the graphic output.

• Link options: This option allows you to specify how the browser should select which frame or window in which to open source document links. This value is used for the target attribute of the links the technology generates. This target value will be applied to all such links encountered in the source document.

• Output formatting: This option causes the technology to write new blank lines to the output strictly to make the generated HTML more readable and visually appealing. While setting this option will make it easier to read the generated markup in a text editor, it does not affect the browser's rendering of the document. You can also include information about source document style names and how they are mapped, and the user can see what format has been mapped to a particular paragraph or text sequence by mousing over it.

1. Click the Add button to display the Markup tab, then specify a Name to use for referencing this format.
2. Under Tag name, enter the HTML paragraph level tag to put around paragraphs using this format. Note that any tag name may be entered here, whether it is legal or not. Only the tag name should be entered, not the surrounding angle brackets ("<" and ">"). The paragraph tag ("p") is the default.
3. Under Custom Attributes, you can enter attributes that apply to the tag whose name was specified by the Tag name option above. To set the name and value of the new attribute, just click on them in the Custom Attributes table.
4. Custom Markup allows you to enter HTML and/or regular text that will be inserted before and/or after every paragraph using this format.
5. Other formatting options on the Markup tab include inserting new lines into the HTML before the paragraph to make it easier to view the HTML of the output of the conversion (only written if the Format HTML source for readability option is set on the Output Pages screen); specifying that a new output page is created every time this format is applied to a paragraph; and whether or not the first instance of this format should start a new page (to help avoid empty or mostly empty pages at the beginning of the output).
6. On the Formatting tab, you can choose how to specify the formatting for paragraphs. If you click on the Use external CSS class option, a text field becomes available in which you must enter the name of a class from an external CSS file. The URL of the external CSS file is specified with the External user stylesheet option set on the Output Pages page.

   If you do not specify an external stylesheet, you can choose to format the document by observing the original source document formatting or forcing other formatting options. Character, Paragraph and Border formatting for an array of options can be set to one of four values:

   • Always off: Forces the attribute to always be off when formatting the text.

   • Always on: Forces the attribute to always be on when formatting the text.

   • Inherit (default): Takes the state of the attribute from the source document. In other words, if the source document had the text rendered with bold, then the technology will create bold text.

   • Do not specify: Leave the formatting unspecified.

1. Select Format Mapping Rules and click Add Format Mapping Rule.
2. In the Format box, select one of your defined text formats.
3. In the Match on box, you may select one of the following paragraph formatting options for the rule to check:

   • Outline level: Match the outline level specified in the source document. Application-predefined "heading" styles typically have corresponding outline levels applied as part of the style definition.

   • Style name: Match the paragraph or character style name.

   • Is footnote: Match any footnote.

   • Is endnote: Match any endnote.

   • Is header: Match any document header text.

   • Is footer: Match any document footer text.

4. For the Paragraph outline level, if Match on above is set to Outline level, then this defines which outline level to match. This option cannot be set/is ignored for all other matching rules.
5. If Match on above is set to Style name, then this defines which source document paragraph or character style name to match. When matching on style names, you must supply a style name here, and no default value is provided. The name must exactly match the style name from the source document. Style name matching is done in a case-sensitive manner. This option cannot be set/is ignored for all other matching rules.
6. When you have finished defining rules, you can go back to the Format Mapping Rules page and click on Move Up or Move Down to arrange the sequence in which the rules are checked. The mapping rules should be ordered so that the first rule that matches is the one, and only one, that is applied.

1. Click Add to add a new output page layout. On the next page, enter a name to use to refer to this layout (required). Once this has been done, click on the left side of the editor. The name you have just entered is displayed in the tree view. Click on this to expand the levels underneath.
2. Click the box in front of Include navigation layout if you want to generate a single file containing markup and links to the document content specified in the page layout. This allows the user to create a "table of contents" page. You will need to define a navigation element under the Navigation Layout.
3. The first item under the name of your output page layout is <title> Source. This lets you select where to get the value to use for the HTML <title> tag. Select Section Name, Text Element, Property, or Output Text Format (the last three must be previously defined). Click back on the <title> Source page to order the sequence of these sources.
4. The Navigation Layout triggers the creation of a separate file with nothing but links to the actual document content. In order to generate this, you must have previously defined either a Document Navigation, Page Navigation, or Section Navigation element under Generated Content (see Adding Navigation Elements). In the expanded level under Navigation Layout, you can further select Markup Items to be placed in the Head and/or Body of the navigation page.
5. The top level of the Page Layout section lets you set pagination options. The six options under Page Layout let you define how output documents are arranged. These six options are as follows:

   • Head: Items placed in the HTML <head> of each output file.

   • Page Top: Items to be placed at the top of each output page. For example, links to the first page, previous page and next page in the output.

   • Before Content: Items to be output before the document content.

   • Before Section: Items inserted before each section of a multi-section document. Note that this is not applicable to word-processing documents.

   • After Content: Items to be output after the document content.

   • Page Bottom: Items placed at the top of each output page; for example, a copyright notice.

   After selecting items to display for these six options, click at the top level of each one to set the order in which they will appear.
