Deploy Oracle Service Bus Composite Applications Using JDeveloper

  1. In JDeveloper, right-click the Oracle Service Bus project you want to deploy and select Deploy to display the deployment wizard.


    JDEV_OSB_Select_Deployment_Start

  2. In the Deployment Action page, select Deploy to Application Server and click Next.


    JDEV_OSB_Select_Deployment_Action

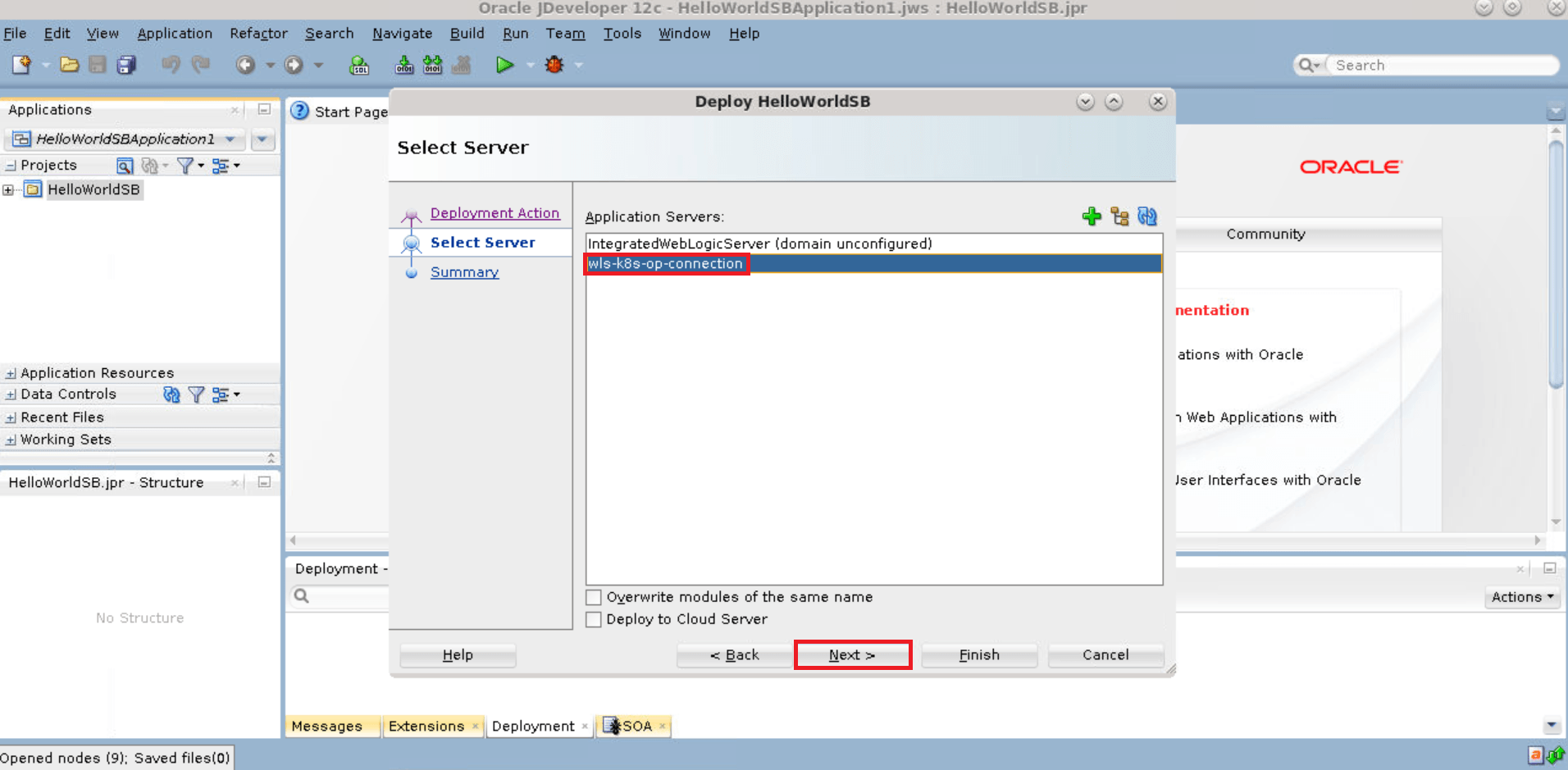

  3. In the Select Server page, select the application server connection (wls-k8s-op-connection) that was created earlier and click Next.


    JDEV OSB Select Application Server

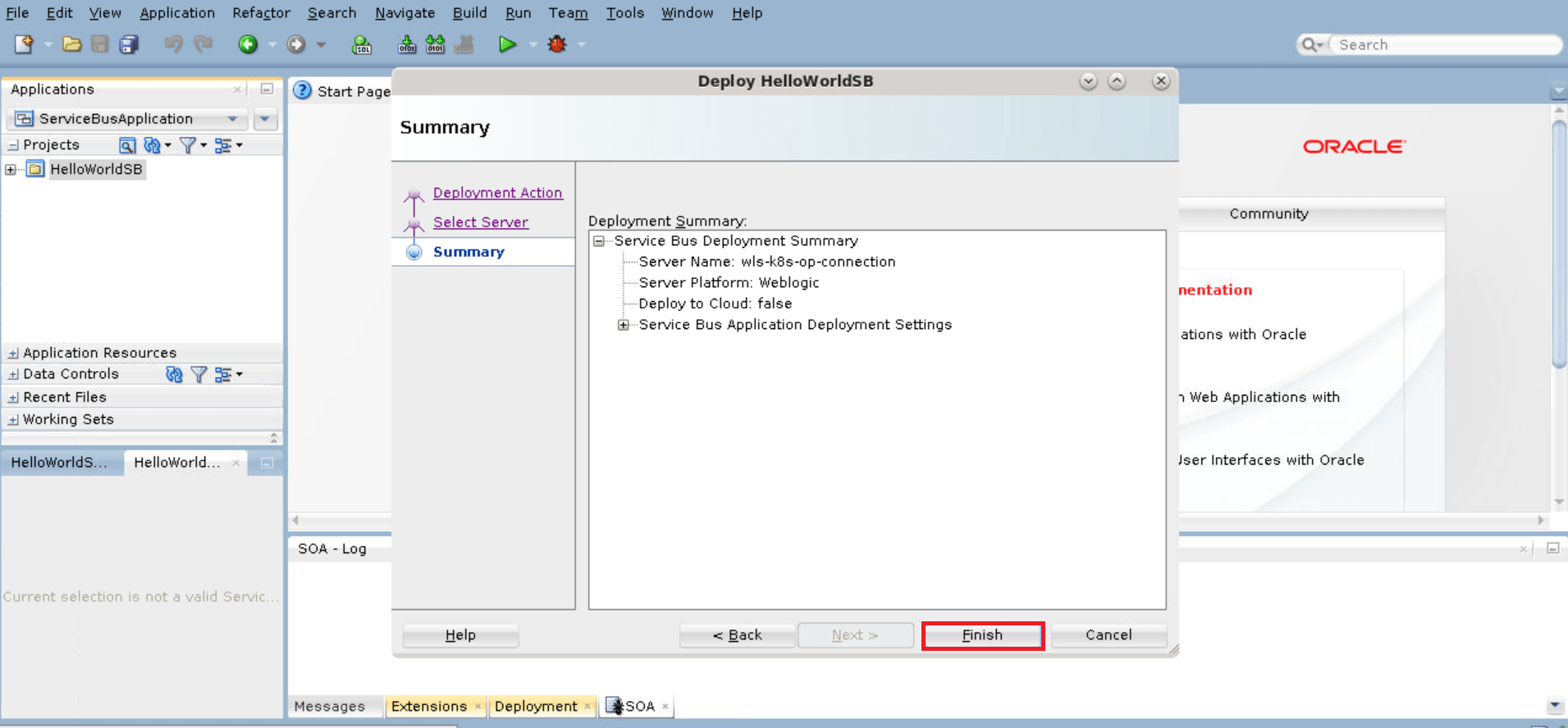

  4. On the Summary page, click Finish to start deploying the composites to the Oracle Service Bus cluster.


    JDEV OSB Deployment summary

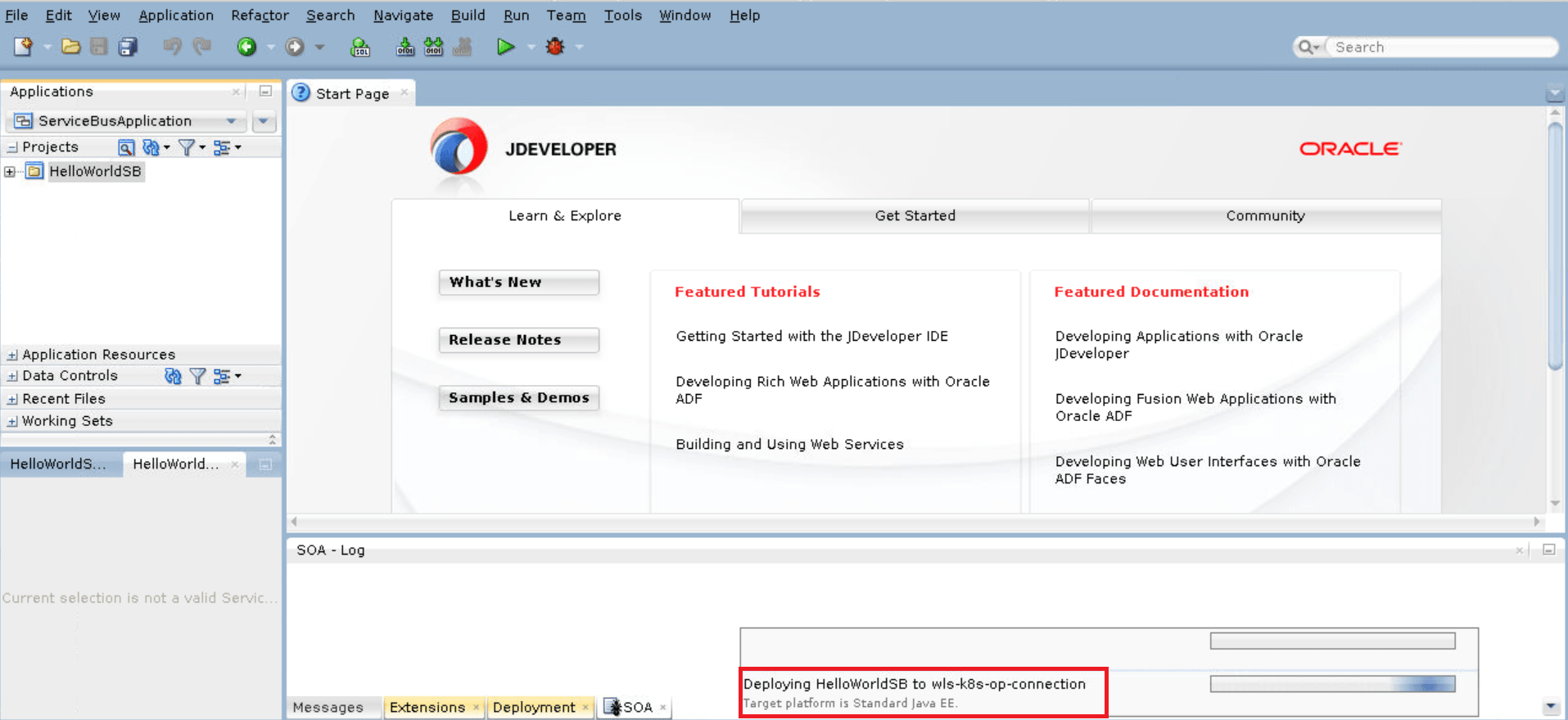

    JDEV OSB Deploying Progress

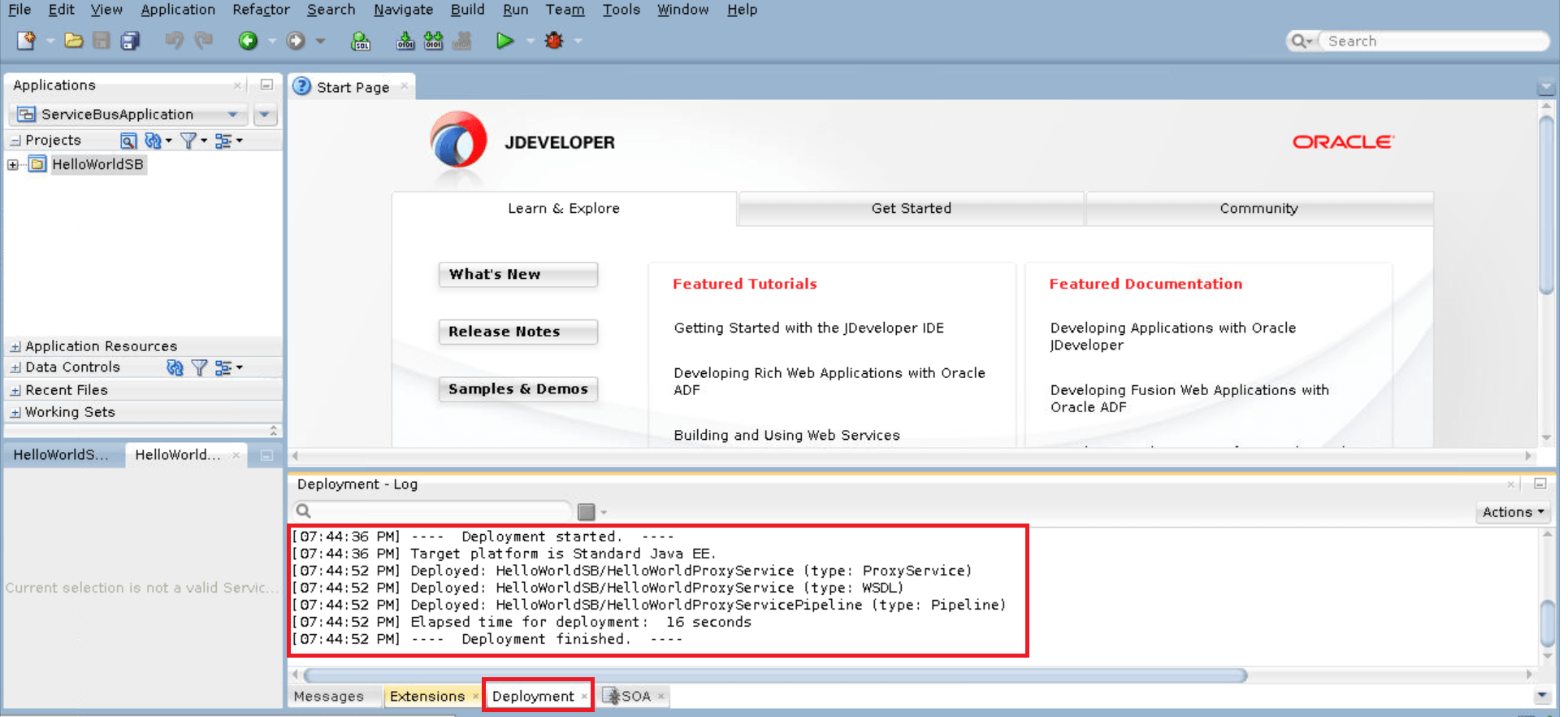

  5. In JDeveloper, verify logs to confirm successful deployment.


    JDEV OSB Deploy Success Status

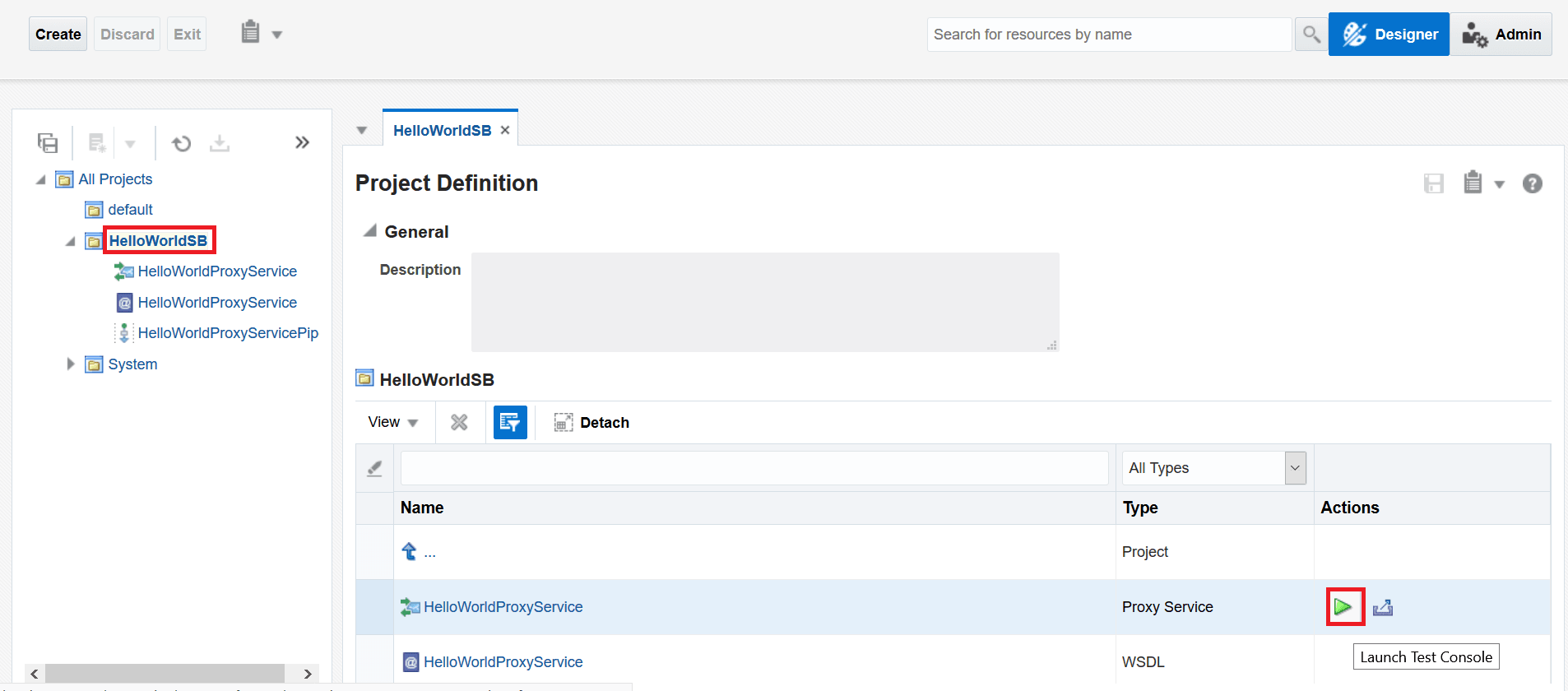

  6. In the Oracle Service Bus Console, click Launch Test Console to verify that the Oracle Service Bus composite application is deployed successfully.


    JDEV OSB servicebus launch test console
