WS-AtomicTransaction Support

The Create Web Service dialog also enables you to configure support for WS-Coordination and WS-AtomicTransaction (WS-AT) transactions. WS-AT provides transaction interoperability between Oracle WebLogic Server and other vendors' transaction services. Interoperability is provided at two levels:

Exporting transactions from the local Java Transaction API (JTA) environment for a web service request.
Importing transactions from a web service request into the local JTA environment. This allows for distributed transaction processing between multiple nodes in the web services environment.

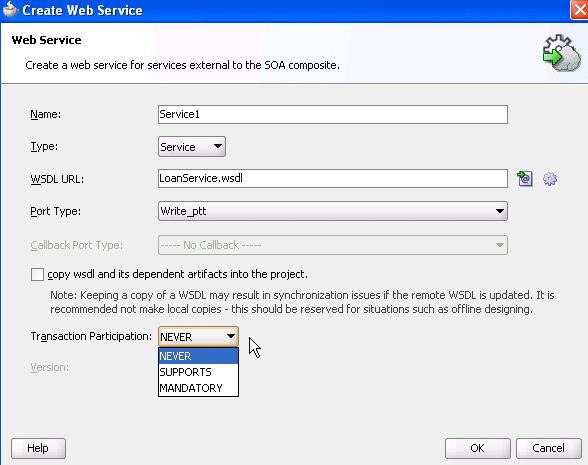

Figure 36-2 shows the support for WS-AT at the bottom of the Create Web Service dialog.

Figure 36-2 WS-AT Support in Create Web Service Dialog

Description of "Figure 36-2 WS-AT Support in Create Web Service Dialog"

Table 36-1 describes the WS-AT fields. For a description of the remaining fields in the Create Web Service dialog, see How to Define the Interface (WSDL) for a Web Service.

Table 36-1 WS-AT Fields of the Create Web Service Dialog

Property Description

Property	Description
Transaction Participation	Select a value. If you added the web service to the Exposed Services swimlane, this action enables external transaction managers to coordinate resources hosted on Oracle WebLogic Server over WS-AT. If you added the web service to the External References swimlane, this addition enables Oracle WebLogic Server transactions to coordinate resources hosted in external environments over WS-AT. Never No transaction context is imported (for services) or exported (for references). This is the default value if you add the web service as a service binding component in the Exposed Services swimlane. Supports If a transaction exists, a transaction context is imported (for services) or exported (for references). This information is added to the `composite.xml` file. Mandatory A transaction context is imported (for services) or exported (for references). This information is added to the `composite.xml` file. For exports, a web service exception message is thrown if there is no active transaction. For imports, a fault is returned to the client if there is no transaction context in the request. WSDLDriven This property only displays if you add the web service as a reference binding component in the External References swimlane. This is the default value.
Version	Displays the WS-AT supported version (1.0, 1,1, 1,2, or default). By default, this list is only enabled if you select Supports or Mandatory from the Transaction Participation list.

Transaction Participation

Select a value. If you added the web service to the Exposed Services swimlane, this action enables external transaction managers to coordinate resources hosted on Oracle WebLogic Server over WS-AT. If you added the web service to the External References swimlane, this addition enables Oracle WebLogic Server transactions to coordinate resources hosted in external environments over WS-AT.

Never

No transaction context is imported (for services) or exported (for references). This is the default value if you add the web service as a service binding component in the Exposed Services swimlane.
Supports

If a transaction exists, a transaction context is imported (for services) or exported (for references). This information is added to the composite.xml file.
Mandatory

A transaction context is imported (for services) or exported (for references). This information is added to the composite.xml file. For exports, a web service exception message is thrown if there is no active transaction. For imports, a fault is returned to the client if there is no transaction context in the request.
WSDLDriven

This property only displays if you add the web service as a reference binding component in the External References swimlane. This is the default value.

Version

Displays the WS-AT supported version (1.0, 1,1, 1,2, or default). By default, this list is only enabled if you select Supports or Mandatory from the Transaction Participation list.

When complete, the composite.xml file displays your WS-AT selections, as shown in the following example:

  <service name="Service1" ui:wsdlLocation="BPELProcess1.wsdl">
    <interface.wsdl interface="http://xmlns.oracle.com/Application5_
jws/Project1/BPELProcess1#wsdl.interface(BPELProcess1)"
                    callbackInterface="http://xmlns.oracle.com/Application5_
jws/Project1/BPELProcess1#wsdl.interface(BPELProcess1Callback)"/>
    <binding.ws port="http://xmlns.oracle.com/Application5_
jws/Project1/BPELProcess1#wsdl.endpoint(Service1/BPELProcess1_pt)">
      <property name="weblogic.wsee.wsat.transaction.flowOption"
                type="xs:string" many="false">SUPPORTS</property>
      <property name="weblogic.wsee.wsat.transaction.version" type="xs:string"
                many="false">WSAT11</property>
    </binding.ws>

If you want to edit your changes, you can right-click the service and select Edit or double-click the service in the SOA Composite Editor.

After deployment, you can modify the transaction participation and version values through the System MBean Browser. For more information, see Administering Oracle SOA Suite and Oracle Business Process Management Suite.

For more information about WS-AT and WS-Coordination, see Developing Oracle Infrastructure Web Services and the WS-AT and WS-Coordination specifications, which are available at the following URL:

http://www.oasis-open.org
