Use of the Various Participant Types

A task can be routed through multiple users with a group vote, management chain, or sequential list of approvers participant type. For example, consider a loan request that is part of the loan approval flow. The loan request may first be assigned to a loan agent role. After a specific loan agent acquires and accepts the loan, the loan may be routed further through multiple levels of management if the loan amount is greater that $100,000. This scenario is shown in Figure 27-4.

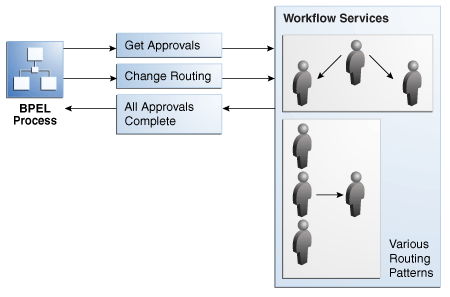

Figure 27-4 Flow Patterns and Routing Policies

Description of Figure 27-4 follows
Description of "Figure 27-4 Flow Patterns and Routing Policies"

You can use these types as building blocks to create complex workflows.
