Understanding How SDO Works in the Inbound Direction

The SDO binding component service provides the outside world with an entry point to the composite application, as shown in Figure 6-1.

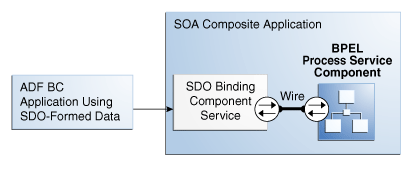

Figure 6-1 Inbound Direction

Description of Figure 6-1 follows
Description of "Figure 6-1 Inbound Direction"

You use the SOA Composite Editor and Oracle BPEL Designer to perform the following tasks:

  • Define an SDO binding component service and a BPEL process service component in the composite application.

  • Connect (wire) the SDO service and BPEL process service component.

  • Define the details of the BPEL process service component.

For more information about using the SOA Composite Editor, see Getting Started with Developing SOA Composite Applications.
