Task 2: How to Create a Domain Value Map

After creating an application and a project for the use case, create a domain value map.

To create a domain value map:

  1. In the Applications window, right-click the HierarchicalValue project and select New.
  2. In the New Gallery dialog, expand the SOA Tier node, and then select the Transformations category.
  3. In the Items list, select Domain Value Map(DVM) and click OK.

    The Create Domain Value Map(DVM) File dialog appears.

  4. In the File Name field, enter UnitsOfMeasure.dvm.
  5. In the Domain Name fields, enter Siebel and Common.
  6. In the Domain Value field corresponding to the Siebel domain, enter Ea.
  7. In the Domain Value field corresponding to the Common domain, enter Each.
  8. Click OK.

    The Domain Value Map Editor appears.

  9. Click Add and then select Add Column.

    The Create DVM Column dialog appears.

  10. In the Name field, enter TradingPartner.
  11. In the Qualifier list, select true.
  12. In the QualifierOrder field, enter 1 and click OK.
  13. Repeat Step 9 through Step 12 to create another qualifier named StandardCode with a qualifier order value of 2.
  14. Click Add and then select Add Domain Values.

    Repeat this step to add two more rows.

  15. Enter the information shown in Table 45-6 in the newly added rows of the domain value map table.

    Table 45-6 Information for Rows of Domain Value Map Table

    Siebel Common TradingPartner StandardCode

    EC

    Each

    OAG

    E-RN

    Each

    A.C.Networks

    RN

    EO

    Each

    ABC Inc

    RN

    The Domain Value Map Editor appears, as shown in Figure 45-11.

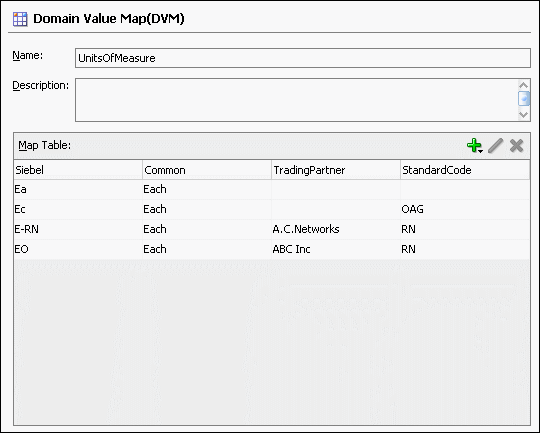

    Figure 45-11 UnitsOfMeasure Domain Value Map

    Description of Figure 45-11 follows
    Description of "Figure 45-11 UnitsOfMeasure Domain Value Map"
  16. From the File menu, select Save All and close the Domain Value Map Editor.
