Specifying Task Parameters

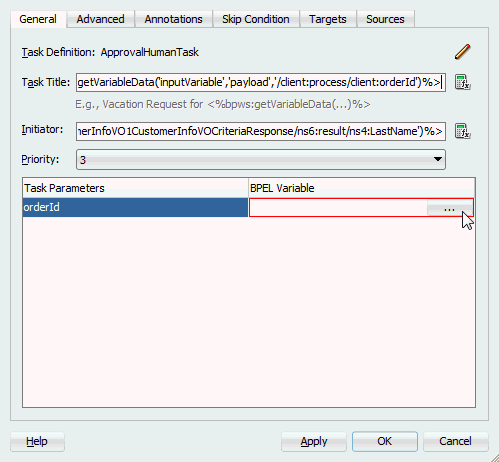

The task parameter table shown in Figure 28-8 displays a list of task parameters after you complete the Task Title and Initiator fields.

Figure 28-8 Task Parameter Table

Description of Figure 28-8 follows
Description of "Figure 28-8 Task Parameter Table"

To specify task parameters:

  1. In the BPEL Variable column, double-click the dots to map the task parameter to the BPEL variable. To display these dots for selection, you must have already specify your data parameters. For more information on how to specify the data parameters, see How to Specify the Task Payload Data Structure. You must map only the task parameters that carry input data. For output data that is filled in from Oracle BPM Worklist, you do not need to map the corresponding variables.

    The Task Parameters dialog appears.

  2. Expand the Variables tree shown in Figure 28-9 and select the appropriate task variable.
  3. Click OK.

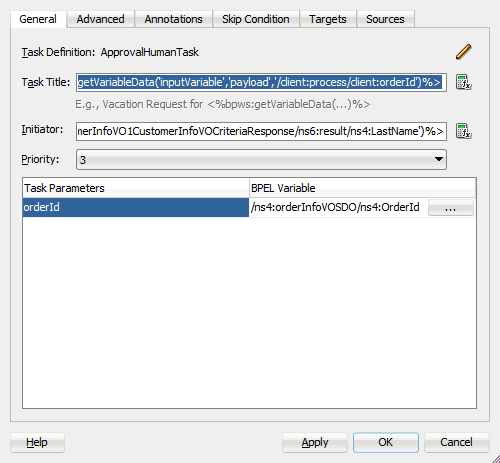

    The Human Task dialog shown in Figure 28-10 appears as follows.

    Figure 28-10 Human Task Dialog

    Description of Figure 28-10 follows
    Description of "Figure 28-10 Human Task Dialog"
  4. To define advanced features for the human task activity, click the Advanced tab and go to How to Define the Human Task Activity Advanced Features . Otherwise, click OK to close the Human Task dialog.
