Refreshing Data Controls When the Task XSD Changes

When task metadata changes, refresh the Data Controls view (XSD changes are not refreshed) that is based on that task metadata.

The refresh functionality re-creates the data control. Figure 30-31 shows the Refresh option.

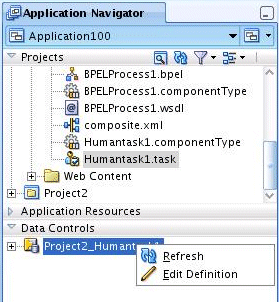

Figure 30-31 Refreshing Data Controls

Description of Figure 30-31 follows
Description of "Figure 30-31 Refreshing Data Controls"

To refresh the data control:

  1. Right-click the data control.
  2. Select the Edit Definition option to display the Refresh Data Control dialog, as shown in Figure 30-32.

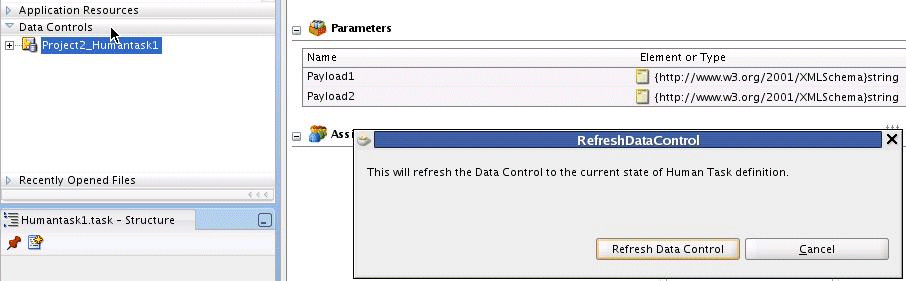

    Figure 30-32 The Refresh Data Control Button

    Description of Figure 30-32 follows
    Description of "Figure 30-32 The Refresh Data Control Button"
