Introduction to Asynchronous Interactions with a Timeout

In an asynchronous interaction with a timeout (which you perform in BPEL with a pick activity), a client sends a request to a service and waits until it receives a reply, or until a certain time limit is reached, whichever comes first. For example, a client requests a loan offer. If the client does not receive a loan offer reply within a specified amount of time, the request is canceled. Figure 5-4 provides an overview.

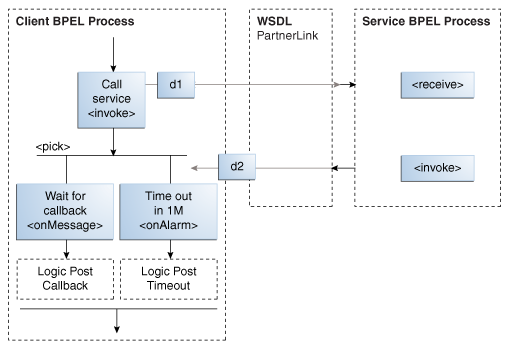

Figure 5-4 Asynchronous Interaction with Timeout

Description of Figure 5-4 follows
Description of "Figure 5-4 Asynchronous Interaction with Timeout"
