Introduction to Asynchronous Interactions with a Notification Timer

In an asynchronous interaction with a notification time, a client sends a request to a service and waits for a reply, although a notification is sent after a timer expires. The client continues to wait for the reply from the service even after the timer has expired. Figure 5-5 provides an overview.

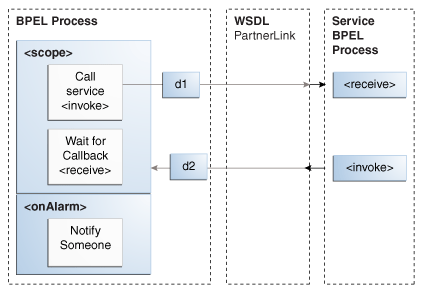

Figure 5-5 Asynchronous Interaction with a Notification Time

Description of Figure 5-5 follows
Description of "Figure 5-5 Asynchronous Interaction with a Notification Time"
