How to View Schemas

You can view all schemas used by the interface's WSDL file and, if you want, choose a new message schema for a selected message part in the Update Interface dialog.

To view schemas:

  1. Double-click the small arrow handle that appears on the specific binding component or service component. Figure 2-10 provides details.

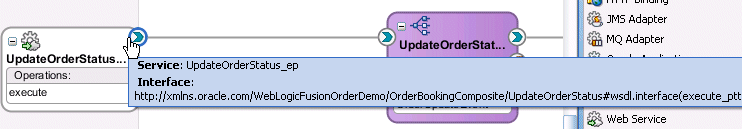

    Figure 2-10 Selection of Inbound Interface Handle

    Description of Figure 2-10 follows
    Description of "Figure 2-10 Selection of Inbound Interface Handle"

    The Update Interface dialog shown in Figure 2-11 displays all schemas currently used by the WSDL file.

    Figure 2-11 Update Interface Dialog

    Description of Figure 2-11 follows
    Description of "Figure 2-11 Update Interface Dialog"
  2. If you want to select a new message schema, click Help or press F1 for instructions.
