How to Run the Sample Task Flow Application

The last task is running the sample application in the embedded Oracle WebLogic Server.

To run the sample task flow application:

  1. To run the sample application, from Oracle JDeveloper, right-click the useRulesDictTaskFlow.jspx file.
  2. Select Run.

    This starts the sample application in a web browser, as shown in Figure 26-45.

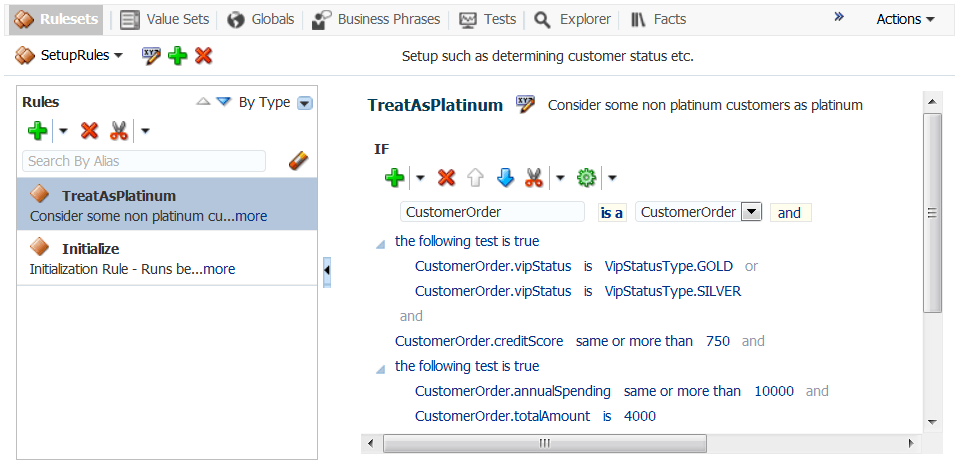

    Figure 26-45 Running the Sample Rules Dictionary Editor Task Flow Application

    Description of Figure 26-45 follows
    Description of "Figure 26-45 Running the Sample Rules Dictionary Editor Task Flow Application"
