How to Move an Element

You can move an element by dragging it from one position and dropping it to another position in the XSLT pane. The element can be moved to become a sibling, parent, or child of another element. You cannot move an element in Map View.

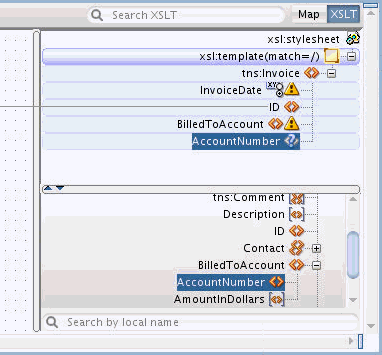

In Figure 41-32, the AccountNumber element is at an incorrect location in the XSLT pane. To make it consistent with the target schema, you must move the AccountNumber element under the BilledToAccount element.

Figure 41-32 AccountNumber Element

Description of Figure 41-32 follows
Description of "Figure 41-32 AccountNumber Element "

Drag the AccountNumber node in the XSLT pane to the left of the BilledToAccount node until the green highlight appears, as shown in Figure 41-33. The green highlight indicates that the AccountNumber element is dropped as a child of BilledToAccount.

Figure 41-33 Dragging the AccountNumber Node

Description of Figure 41-33 follows
Description of "Figure 41-33 Dragging the AccountNumber Node"

Drop the element while the green highlight is visible. The AccountNumber node is repositioned under the BilledToAccount node, as shown in Figure 41-34.

Figure 41-34 Repositioned AccountNumber Node

Description of Figure 41-34 follows
Description of "Figure 41-34 Repositioned AccountNumber Node"
