How to Create a Scope Activity

To create a scope activity:

  1. In the Components window, expand BPEL Constructs.
  2. Drag a Scope activity into the designer.
  3. Open the Scope activity by double-clicking it or by single-clicking the Expand icon.
  4. From the Components window, drag and define activities to build the functionality within the scope. Figure 12-26 provides details.

    Figure 12-26 Expanded Scope Activity

    Description of Figure 12-26 follows
    Description of "Figure 12-26 Expanded Scope Activity"
  5. Click OK.

    When complete, scope activity design can look as shown in Figure 12-27. This example shows a Scope_AuthorizeCreditCard scope activity.

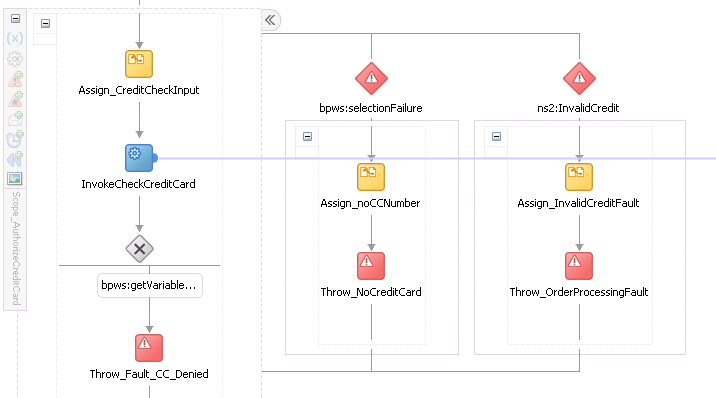

    Figure 12-27 Scope Activity After Design Completion

    Description of Figure 12-27 follows
    Description of "Figure 12-27 Scope Activity After Design Completion"
