How To Create an Autogenerated Task Form

Autogenerating a task form opens a default template that you can then modify.

To create an autogenerated task form:

  1. Open the BPEL process within the SOA composite application.
  2. Double-click the human task activity and click Edit.
  3. From the .task editor, click Create Form and select Auto-Generate Task Form, as shown in Figure 30-6.

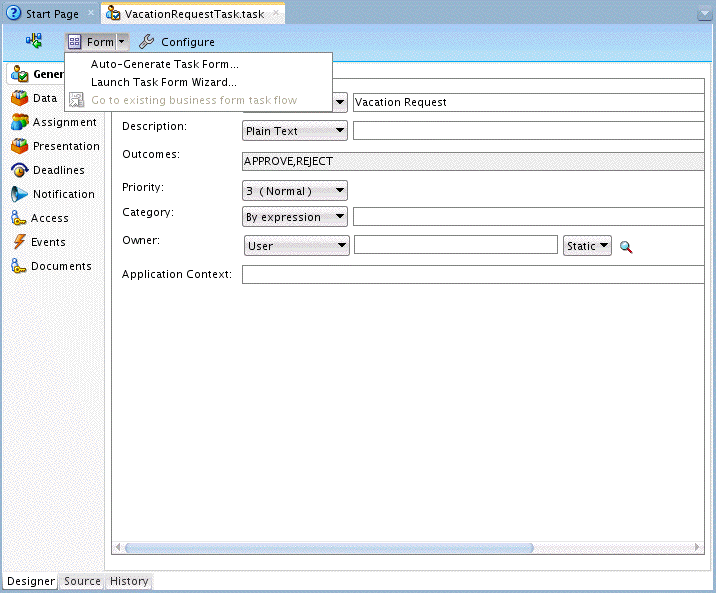

    Figure 30-6 Creating a Task Form

    Description of Figure 30-6 follows
    Description of "Figure 30-6 Creating a Task Form"
  4. Provide a project name and a directory path (or use the default) and click OK.

    The default form opens in the taskDetails1.jspx tab. The default form for ApprovalHumanTask is shown in Figure 30-7.

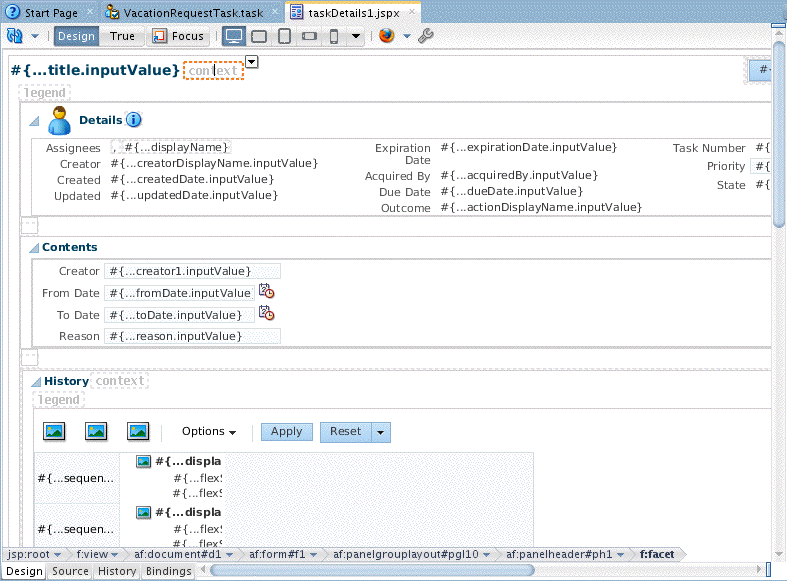

    Figure 30-7 Autogenerated Task Form for ApprovalHumanTask

    Description of Figure 30-7 follows
    Description of "Figure 30-7 Autogenerated Task Form for ApprovalHumanTask"
