To Edit Mappings by Task Type

To edit mappings by task type:

  1. Click Edit mappings by task type, optionally provide a task type, and click Search.
  2. Select a task type and click OK.

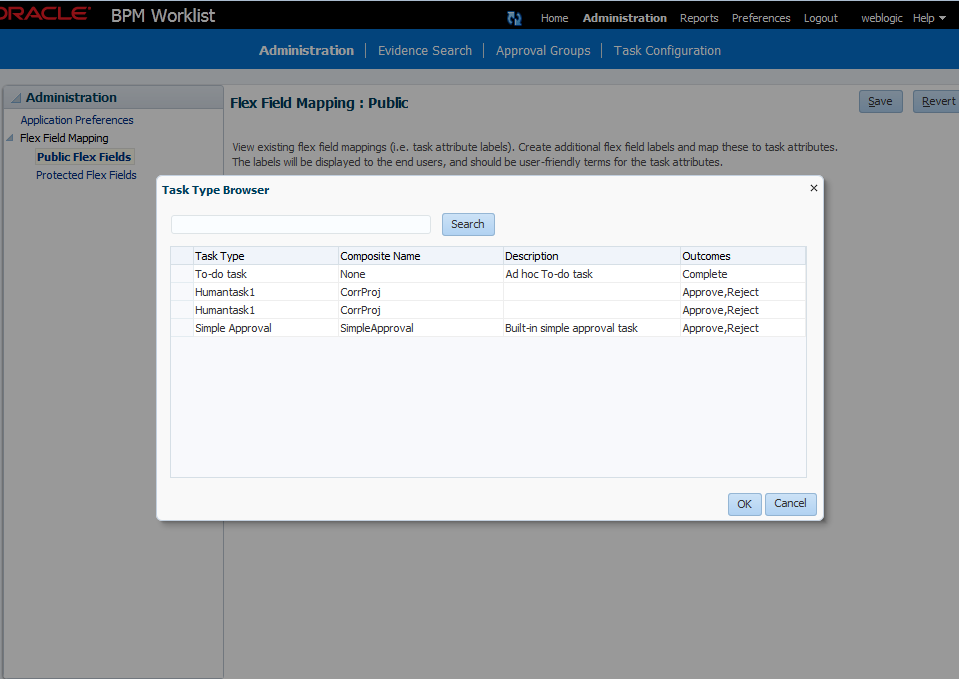

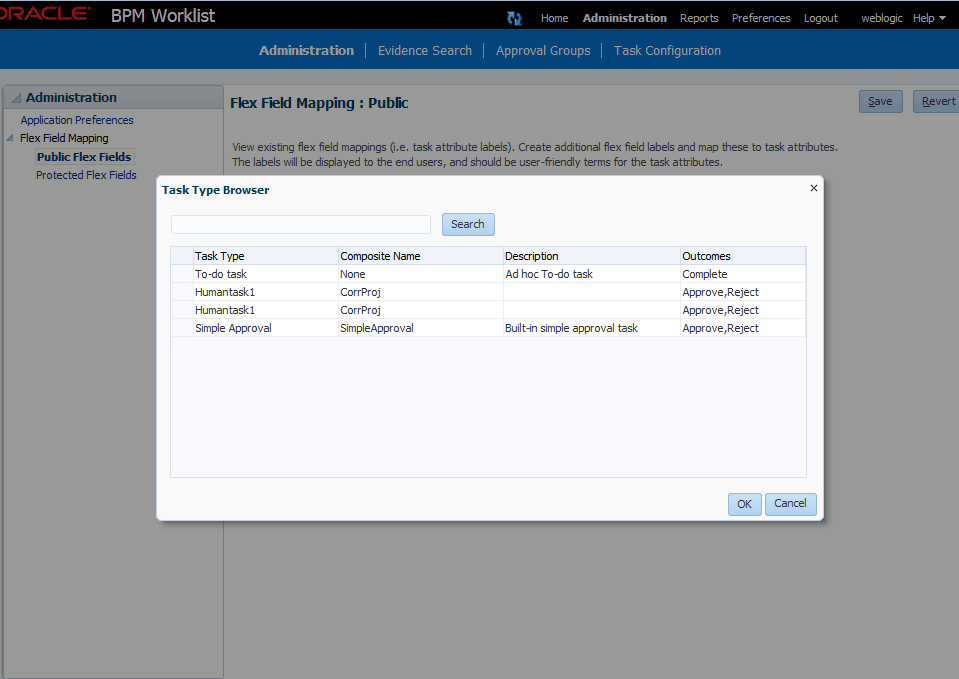

    Figure 32-55 Selecting a Task Type

    Description of Figure 32-55 follows
    Description of "Figure 32-55 Selecting a Task Type"
  3. With the task type displayed in the Edit mappings by task type field, click Go.

    All current mappings for the task type are displayed, as shown in Figure 32-56.

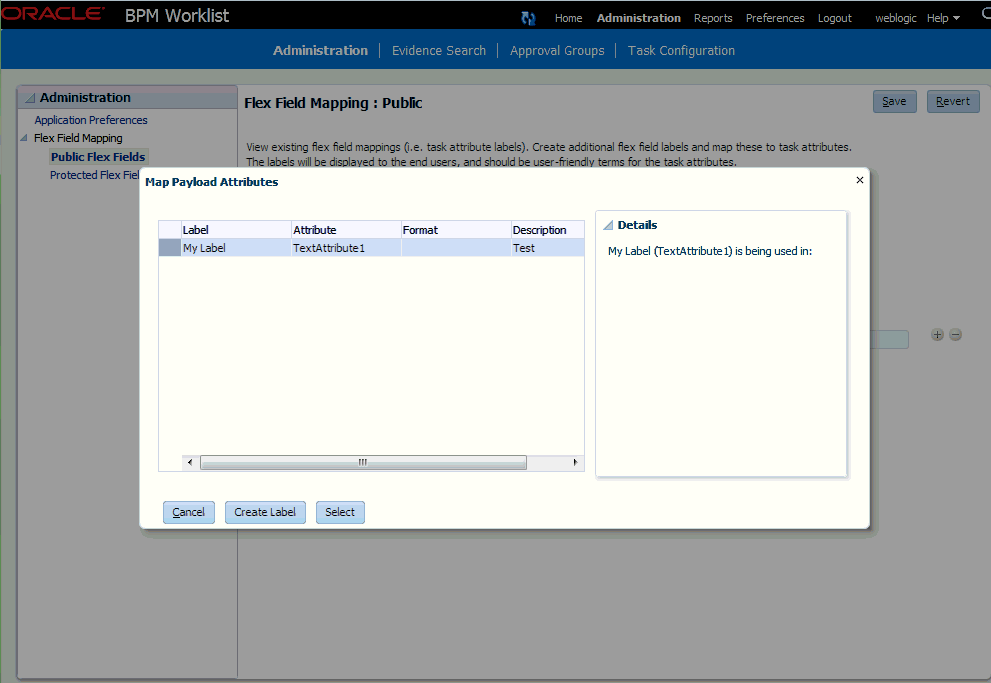

    Figure 32-56 Selecting a Label

    Description of Figure 32-56 follows
    Description of "Figure 32-56 Selecting a Label"
  4. Select a mapping label and click Select.

    Figure 32-57 shows a completed mapping.

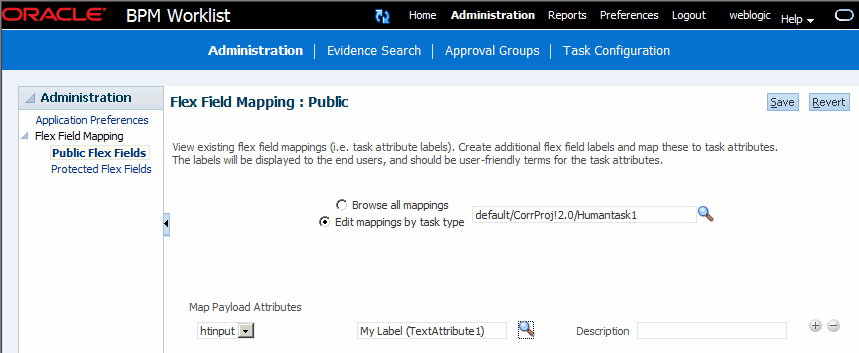

    Figure 32-57 Mapped Attribute Mapping Created

    Description of Figure 32-57 follows
    Description of "Figure 32-57 Mapped Attribute Mapping Created"

See Internationalization of Attribute Labels for more information.
