Creating a Task Form Project

Learn to create a project for the task form. This is a separate project from the one in which you created the human task.

To create a task form project:

  1. Double-click the VacationRequestTask human task.

    The Human Task Editor is displayed.

  2. From the Form menu at the top, select Auto-Generate Task Form. Figure 31-14 provides details.

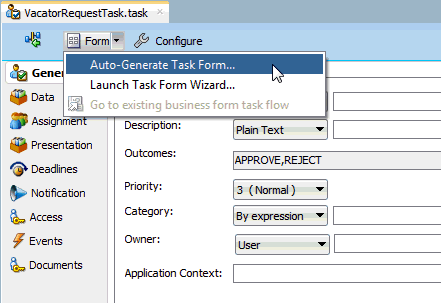

    Figure 31-14 Task Form Creation

    Description of Figure 31-14 follows
    Description of "Figure 31-14 Task Form Creation"

    The Create Project dialog appears.

  3. In the Project Name field, enter VacationRequestTaskFlow, and click OK.
  4. From the File main menu, select Save All.
