Create a SOA Bundle that Includes the JAR Profile

To create a SOA bundle that includes the JAR profile:

  1. From the Application Menu, select Application Properties > Deployment.
  2. Click New to create a SOA bundle profile.

    The Create Deployment Profile dialog appears.

  3. From the Archive Type list, select SOA Bundle. A bundle is a collection of multiple SOA composite applications.
  4. In the Name field, enter a name (for this example, sharedArtifactBundle is entered). Figure 48-24 provides details.

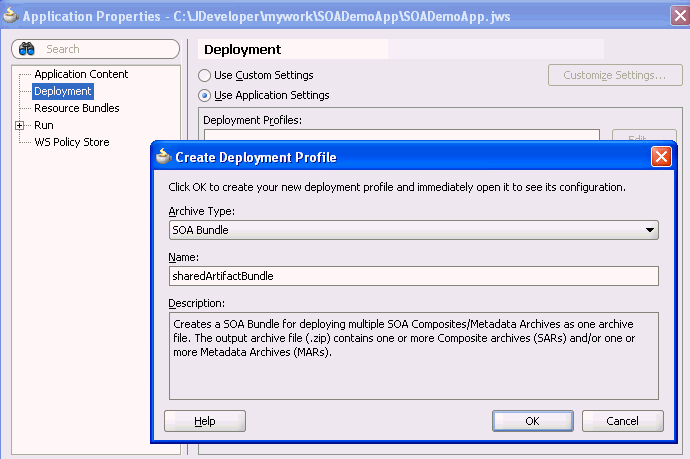

    Figure 48-24 SOA Bundle Creation

    Description of Figure 48-24 follows
    Description of "Figure 48-24 SOA Bundle Creation"
  5. Click OK.
  6. Select Dependencies from the navigational tree on the left.
  7. Select the JAR file and SOA-SAR profiles you previously created (for this example, named shared_archive and sharedArtifactBundle, respectively). You have the option of a JAR, a SOA-SAR, or both. Figure 48-25 provides details.

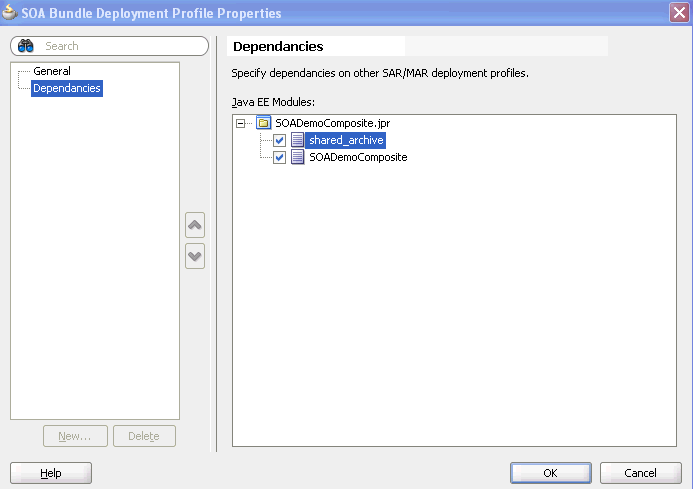

    Figure 48-25 Deployment Profile Dependencies

    Description of Figure 48-25 follows
    Description of "Figure 48-25 Deployment Profile Dependencies"
  8. Click OK to save the SOA bundle deployment profile changes.
  9. Click OK to save the new deployment profile.
  10. From the File main menu, select Save All.
