Using the Oracle Stream Analytics Visualizer, you can view the data source configuration for a selected Oracle Stream Analytics server.

1. In the left pane, click the Domain > Server node, where Domain refers to the name of your Oracle Stream Analytics domain and Server refers to the name of the server instance.
2. In the right pane, click the DataSource tab.

   The DataSource tab appears as Figure 12-1 shows.

   Figure 12-1 DataSource Tab


   Description of "Figure 12-1 DataSource Tab"

Using the Oracle Stream Analytics Visualizer, you can edit the data source configuration for a selected Oracle Stream Analytics server.

1. In the left pane, click the Domain > Server node, where Domain refers to the name of your Oracle Stream Analytics domain and Server refers to the name of the server instance.
2. In the right pane, click the DataSource tab.

   The DataSource tab appears as Figure 12-2 shows.

   Figure 12-2 DataSource Tab


   Description of "Figure 12-2 DataSource Tab"
3. In the Data Sources table, select the data source you want to edit by clicking on its name.
4. Click Edit.

   The Datasource dialog displays.

5. In the Datasource dialog, click the Data Source tab.

   The DataSource tab appears as Figure 12-3 shows.

   Figure 12-3 Edit Datasource: Data Source Tab


   Description of "Figure 12-3 Edit Datasource: Data Source Tab"
6. Configure the DataSource tab as Table 12-1 describes.

   Table 12-1 Edit Datasource: Data Source Parameters

   Parameter	Description
   Name	The name for this data source configuration.
   JNDI Name	JNDI path to where this data source will be bound. This is the name your Oracle Stream Analytics application uses to look up the data source in JNDI.
   Global Tx Protocol	Select the protocol for Oracle Stream Analytics to use for the transaction branch when processing a global transaction: OnePhaseCommit (Default) TwoPhaseCommit LoggingLastResource EmulateTwoPhaseCommit None

7. Click the Global Tx Protocol tab.

   The Global Tx Protocol tab displays.

8. Configure the Global Tx Protocol tab as Table 12-2 describes.

   Table 12-2 Edit Datasource: Global Tx Protocol Parameters

   Parameter	Description
   Database Type	Select the type of JDBC driver to use: Oracle SQL Server 2005 Other
   URL	Specify the database connection URL appropriate for your database. This URL includes the name of the database, the host and port of the computer on which the database server is running, and so on. Oracle Stream Analytics populates a default URL for database types it provides.
   Driver Name	Specify the name of the driver for the selected database type. Oracle Stream Analytics automatically populates the driver name for types it provides.
   User Name	Specify database user account name that you want to use for each connection in the data source.
   Password	Specify database user password that you want to use for each connection in the data source
   Use XA	Specify whether or not to use distributed transactions: true: enable distributed transactions. false: disable distributed transactions.

9. Click the Connection Pool tab.

   The Connection Pool tab appears as Figure 12-4 shows.

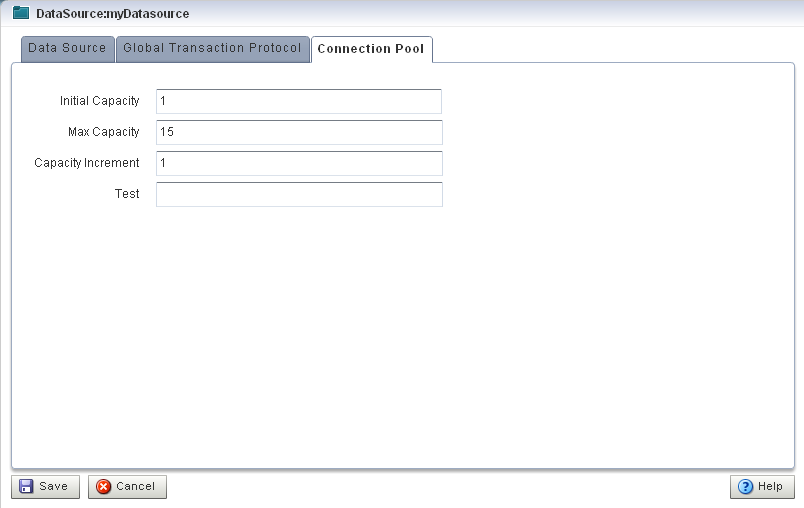

   Figure 12-4 Edit Datasource: Connection Pool Tab


   Description of "Figure 12-4 Edit Datasource: Connection Pool Tab"
10. Configure the Connection Pool tab as Table 12-3 describes.

    Table 12-3 Edit Datasource: Connection Pool Parameters

    Parameter	Description
    Initial Capacity	Specify the number of physical connections to create when creating the connection pool.
    Max Capacity	Specify the maximum number of physical connections that this connection pool can contain.
    Capacity Increment	Specify how many connections to add when all the connections in the connection pool are in use and the connection pool receives a new connection request.
    Test	Enter the name of a small table to use in a query if you want to test the database connection before handing it to the requesting application. The standard query is select 1 from table_name. If you prefer to use a different query as a connection test, enter SQL followed by a space and the SQL code you want to use to test database connections.

11. Click Save.

    The datasource is updated in the Oracle Stream Analytics server configuration.

Using the Oracle Stream Analytics Visualizer, you can add the data source configuration for a selected Oracle Stream Analytics server.

1. In the left pane, click the Domain > Server node, where Domain refers to the name of your Oracle Stream Analytics domain and Server refers to the name of the server instance.
2. In the right pane, click the DataSource tab.

   The DataSource tab appears as Figure 12-5 shows.

   Figure 12-5 DataSource Tab


   Description of "Figure 12-5 DataSource Tab"
3. Click Add.

   The New Datasource dialog appears as Figure 12-6 shows. There are three accordion tabs:

   • Data Source: use this tab to identify the data source and specify whether or not to use a global transaction protocol.

   • Global Tx Protocol: use this tab to specify connection properties and whether or not to use XA.

   • Connection Pool: use this tab to specify connection pool properties.

4. Click the Data Source tab.

   The DataSource tab appears as Figure 12-6 shows.

   Figure 12-6 New Datasource: Data Source Tab


   Description of "Figure 12-6 New Datasource: Data Source Tab"
5. Configure the DataSource tab as Table 12-4 describes.

   Table 12-4 New Datasource: Data Source Parameters

   Parameter	Description
   Name	The name for this data source configuration.
   JNDI Name	JNDI path to where this data source will be bound. This is the name your Oracle Stream Analytics application uses to look up the data source in JNDI.
   Global Tx Protocol	Select the protocol for Oracle Stream Analytics to use for the transaction branch when processing a global transaction: OnePhaseCommit (Default) TwoPhaseCommit LoggingLastResource EmulateTwoPhaseCommit None

6. Click the Global Tx Protocol tab.

   The Global Tx Protocol tab displays.

7. In the Global Tx Protocol tab, set the configuration as Table 12-5 describes.

   Table 12-5 New Datasource: Global Tx Protocol Parameters

   Parameter	Description
   Database Type	Select the type of JDBC driver to use: Oracle SQL Server 2005 Other
   URL	Specify the database connection URL appropriate for your database. This URL includes the name of the database, the host and port of the computer on which the database server is running, and so on. Oracle Stream Analytics populates a default URL for database types it provides.
   Driver Name	Specify the name of the driver for the selected database type. Oracle Stream Analytics automatically populates the driver name for types it provides.
   User Name	Specify database user account name that you want to use for each connection in the data source.
   Password	Specify database user password that you want to use for each connection in the data source
   Use XA	Specify whether or not to use distributed transactions: true: enable distributed transactions. false: disable distributed transactions.

8. Click the Connection Pool tab.

   The Connection Pool tab appears as Figure 12-7 shows.

   Figure 12-7 New Datasource: Connection Pool Tab


   Description of "Figure 12-7 New Datasource: Connection Pool Tab"
9. Configure the Connection Pool tab as Table 12-6 describes.

   Table 12-6 New Datasource: Connection Pool Parameters

   Parameter	Description
   Initial Capacity	Specify the number of physical connections to create when creating the connection pool.
   Max Capacity	Specify the maximum number of physical connections that this connection pool can contain.
   Capacity Increment	Specify how many connections to add when all the connections in the connection pool are in use and the connection pool receives a new connection request.
   Test	Enter the name of a small table to use in a query if you want to test the database connection before handing it to the requesting application. The standard query is select 1 from table_name. If you prefer to use a different query as a connection test, enter SQL followed by a space and the SQL code you want to use to test database connections.

10. Click Save.

    The new datasource is added to the Oracle Stream Analytics server configuration.
