17 Developing Plug-ins
This chapter describes the concepts related to plug-in and how to develop and use a plug-in. It contains the following topics:
17.1 Plug-ins and Plug-in Points
There are specific points, called plug-in points, in the business logic where extensibility can be provided with the help of plug-ins.
The concepts related to plug-ins are described in the following sections:
17.1.1 About Plug-ins and Plug-in Points
The plug-in framework enables you to define, register, and configure plug-ins, which extend the functionality provided by features. Plug-ins can be predefined or custom-developed, and they are utilized at plug-in points.
A plug-in is a logical component that extends the functionality of features provided by Oracle Identity Manager. The plug-in framework enables you to define, register, and configure plug-ins, which extend the functionality provided by features. Plug-ins can be predefined or custom-developed, and they are utilized at plug-in points. A plug-in point is a specific point in the business logic where extensibility can be provided. An interface definition called the plug-in interface accompanies such a point. You can extend the plug-in interface based on the business requirements and register them as plug-ins. To do this, you develop a Plugin Java class and compile it before archiving in a JAR file, define plug-in metadata in an XML file, and ZIP these artifacts as a plug-in package that is ready to deploy.
For example, user creation is a business operation in Oracle Identity Manager. But this operation exposes a plug-in point for user name generation. If you want to model your custom logic of user name generation, then you must identify the plug-in point specifications and develop a plug-in accordingly.
17.1.2 Plug-ins and Event Handlers
Most of the business operations in Oracle Identity Manager, such as user creation, role assignment to user, and user activation, are executed as orchestrations.
Therefore, if there is a requirement to induce any custom logic in these operations or orchestrations, then you can model that logic as event handlers at stages, such as validation, preprocess, and postprocess, in which customization is supported. However, you can analyze if any such operation also exposes a plug-in point for inducing the custom logic. If a plug-in point is available, then you can utilize the plug-in point rather than operating the underlying orchestration. For example, you can implement username generation by using the exposed plug-in without writing that as an event handler in the create user orchestration.
Figure 17-1 shows a diagrammatic representation of plug-ins and event handlers.
17.1.3 Plug-in Stores
The plug-in framework stores plug-ins in the plug-in stores.
This section describes plug-in stores and the types of stores. It contains the following sections:
17.1.3.1 About Plug-in Stores
The plug-in framework can store plug-ins in two types of stores:
-
The File system. See The File Store for details.
-
The Oracle Identity Manager database. See The Database Store for details.
When looking for plug-ins, the framework first examines plug-ins registered in the database, and looks in the file system.
17.1.3.2 The File Store
The File Store consists of one or more directories on the Oracle Identity Manager host and is primarily used in development environments. This type of store is not appropriate for a production environment. File storage is convenient for the developer since there is no need to explicitly register the developed plug-ins with a file store. Users can just drop in the plug-in zips or exploded plug-in directory to the designated location(s).
By default, Plug-in framework looks for the plug-ins under the OIM_HOME/plugins
directory. Additional plug-in directories can also be specified.
If a monitoring thread is enabled, then the plug-in framework monitors all the additions, modification, and deletions of plug-in zip files under the registered plug-in directories in the file system, and automatically reloads the plug-ins. Plug-in metadata such as name, version, and ID is read from the plug-in zip and is maintained in memory. This metadata is updated based on any file changes. The latest plug-in zip file is considered to be the current version of the plug-in. For details about how to configure the file store, see Configuring Plug-ins.
Note:
Oracle recommends not to use the file store in production. File store is more suitable during plug-in development because it is easy to change the plug-in, and you are required to change only the file in the file system. There is no need to register. However, in production, plug-ins are not changed often, and therefore, avoid using the file store because of certain disadvantages. It adds the overhead of file store monitoring. In addition, the plug-ins are required to be replicated in all nodes of a cluster for the clustered deployment of Oracle Identity Manager.
17.1.3.3 The Database Store
Plug-ins can be stored in the Oracle Identity Manager database, so that they are accessible from any node in a cluster. The Plug-in Framework uses Operation DB as the database store. This type of store is appropriate for a production environment.
You must explicitly register any plug-ins that are stored in the database. You can use the Plugin Registration Utility, which is a command-line tool, to register and deregister plug-ins. You can also use the registerPlugin
API for this purpose. See Registering and Unregistering Plug-ins By Using APIs for more information about registering plug-ins.
Note:
After registering a plug-in, the server must be restarted. However, restarting the server might also depend on the feature that defines the plug-in point.
17.2 Using Plug-ins in Deployments
Plug-ins are used for customizing the default functionality in an Oracle Identity Manager deployment.
The number of supported plug-in points is a defined and constrained set. Therefore, you can use the plug-in points to extend the functionality only for the list of supported plug-in points. See Plug-in Points for a list of the supported plug-in points.
17.3 Plug-in Points
Java interfaces act as plug-in points.
Table 17-1 lists the Java interfaces that act as plug-in points in Oracle Identity Manager:
Table 17-1 Plug-in Points
Plug-in Point | Description |
---|---|
oracle.iam.ldapsync.LDAPContainerMapper |
This is used by LDAP synchronization to determine which user/role container should be used to create the user/role in LDAP. |
oracle.iam.platform.kernel.spi.EventHandler |
This is the kernel event handler. See Developing Event Handlers for information about kernel event handlers. |
oracle.iam.platform.auth.api.LoginMapper |
This is an implementation of a LoginMapper maps the JAAS user principal name to the corresponding Oracle Identity Manager username. This plug-in point is used to override the default mapping of JAAS user principal name to Oracle Identity Manager username for SSO scenarios. The default implementation returns the same value as the JAAS user principal name.This plug-in point is typically used in SSO scenarios where the JAAS user principal name and the Oracle Identity Manager username might be different. For example, the SSO system might set the email as the JAAS username but no user with that username exist in Oracle Identity Manager. For Oracle Identity Manager to recognize that user, the JAAS user principal name must be mapped to the Oracle Identity Manager username. This can be done by implementing a plug-in for LoginMapper, as shown: public class CustomLoginMapper implements LoginMapper{ public String getOIMUserID(String jaasPrincipal) throws MappingException { return getUserName(jassPrincipal); } private String getUserName(String emailID){ String userName = null; //Use usermgmt APIs to get the username corresponding to this email id return userName; } } |
oracle.iam.identity.usermgmt.api.PasswordVerifier |
This is used for verification of old password while changing the user's password. The class that is to be used for this validation is configured in the OIM.OldPasswordValidator system property. By default, use the container based authentication for verifying old password. |
oracle.iam.request.plugins.StatusChangeEvent |
This allows running of custom code during request status change. |
oracle.iam.request.plugins.RequestDataValidator |
This is used for custom validation of request data after submission. |
oracle.iam.request.plugins.PrePopulationAdapter |
This is used to prepopulate an attribute value by running custom code during request creation. |
oracle.iam.scheduler.vo.TaskSupport |
This is used to run the job in context. Execute method of the task is retrieved through the plug-in and is loaded. |
oracle.iam.identity.usermgmt.api.UserNamePolicy |
This is an implementation of username policies that are used to generate/validate username. |
oracle.iam.identity.usermgmt.api.ReservationInLDAP |
This is an implementation for reservation of user attributes in LDAP. |
17.4 Configuring Plug-ins
Use the oim-config.xml file in MDS to configure plug-ins.
You use the oim-config.xml file in the MDS to configure the following:
See Also:
Configuring the oim-config.xml File in Administering Oracle Identity Governance for information about configuring the oim-config.xml file
-
The directory or directories in which the files store will look for plug-ins.
-
Whether to activate a thread that monitors the file store for any changes; the thread checks the zip files or exploded files in all the plug-in directories.
The monitoring thread is typically activated in a dynamic development environment since plug-ins are being added or modified in such an environment; it can be inactive in a production system which contains a set of plug-ins . This is tracked by the reloadingEnabled attribute.
-
The time interval at which the monitoring thread wakes up and looks for any changes.
The following is a code snippet from the oim-config.xml
file:
<pluginConfig storeType="common"> <storeConfig reloadingEnabled="true" reloadingInterval="20"> <!-- Plugins present in the OIM_HOME/plugins directory are added by default. For adding more plugins, specify the plugin directory as below: <registeredDirs>/scratch/oimplugins</registeredDirs> <registeredDirs>/scratch/custom</registeredDirs> --> </storeConfig> </pluginConfig>
In this example:
-
The
common
store designation tells the framework to monitor both database and file storesNote:
Do not modify the
Store
value;common
is appropriate in all environments. -
One directory is configured; additional directories can be configured by simply adding more <registeredDirs> tags.
-
The monitoring thread is active and looks for plug-in changes every 20 seconds by default.
Monitoring is typically active in development environments only. If you switch between active and inactive, you must restart the application server for the change to take effect.
Note:
Restarting the application server is required for any changes made to plug-in data in the oim-config.xml file.
17.5 Developing Custom Plug-ins
After configuring the plug-in XML file, you can develop and declare your plug-ins.
This section describes how to develop custom plug-ins. It contains the following topics:
17.5.1 Developing Plug-ins
Developing plug-ins include identifying the plug-in point and Java class, configure the plugin.xml file, identify the resource files required by the plug-in, and zipping the entire package in the file store or database store.
To develop a plug-in:
17.5.2 Declaring Plug-ins
To extend the functionality provided by Oracle Identity Manager, you can declare the plug-ins for the application.
A plug-in has a Java class that implements the plug-in point interface. Be sure to assign unique names to all the plug-ins associated with a specific plug-in point. If the plug-in names are non-unique, an exception will be thrown during plug-in registration.
Declare the plug-ins in the plugin.xml
file. For example:
<?xml version="1.0" encoding="UTF-8"?> <oimplugins> .... <plugins pluginpoint="oracle.iam.sample.passwdmgmt.service.PasswordElement"> <plugin pluginclass= "oracle.iam.sample.passwdmgmt.custom.NumCustomPasswordElement" version="1.0.1" name="num pwd element"/> <plugin pluginclass= "oracle.iam.sample.passwdmgmt.custom.DictionaryPasswordElement" version="1.0.1" name="Dictionary password element" /> </plugins> .... </oimplugins>
Note:
You can have multiple versions of the plug-in stored and the feature can request a specific version of the plug-in from the plug-in framework. By default, all of the current plug-in points load the latest version of the plug-ins.
The XML shows two plug-in declarations. Both the plug-ins extend from the same plug-in point.
17.6 Registering Plug-ins
You can register the plug-ins by using APIs and Plugin Registration Utility.
This section describes how to register and unregister plug-ins by using APIs and Plugin Registration Utility. It contains the following topics:
17.6.1 Registering and Unregistering Plug-ins By Using APIs
You can use the PlatformService.registerPlugin
and PlatformService.unRegisterPlugin
APIs for registration-related tasks.
Here is an example:
System.out.println("Creating client...."); String ctxFactory = "weblogic.jndi.WLInitialContextFactory"; String serverURL = "t3://OIM_HOSTNAME:OIM_PORT"; System.setProperty("java.security.auth.login.config", "OIM_CLIENT_HOME/conf/authwl.conf"); String username = "USER_NAME"; char[] password = "PASSWORD".toCharArray(); Hashtable env = new Hashtable(); env.put(OIMClient.JAVA_NAMING_FACTORY_INITIAL,ctxFactory); env.put(OIMClient.JAVA_NAMING_PROVIDER_URL, serverURL); oimClient = new OIMClient(env); System.out.println("Logging in"); oimClient.login(username, password); PlatformService service = platform.getService(PlatformService.class); File zipFile = new File(fileName); FileInputStream fis = new FileInputStream(zipFile); int size = (int) zipFile.length(); byte[] b = new byte[size]; int bytesRead = fis.read(b, 0, size); while (bytesRead < size) { bytesRead += fis.read(b, bytesRead, size - bytesRead); } fis.close(); service.registerPlugin(b); service.unRegisterPlugin(pluginID, version);
Note:
Using OIMClient for information about using OIMClient for developing clients to integrate with Oracle Identity Manager.
17.6.2 Registering and Unregistering Plug-ins By Using the Plugin Registration Utility
Use the Plugin Registration Utility to register and unregister plug-ins.
This section describes how to register and unregister plug-ins by using the Plugin Registration Utility. It contains the following topics:
17.6.2.1 The Plugin Registration Utility
You can use the Plugin Registration Utility for registering and unregistering plug-ins. The utility uses the following files:
-
pluginregistration.xml
-
ant.properties
These files are located in the OIM_HOME/plugin_utility/ directory.
Note:
Plug-in registration utilities require Apache Ant version 1.9.8 or later.
17.6.2.2 Prerequisites of Using the Plugin Registration Utility
Before using the utility, perform the following:
-
Ensure that the JAVA_HOME and ANT_HOME environment variable are set as shown below:
Set JAVA_HOME to:
Linux:setenv JAVA_HOME /home/Oracle/Java/jdk1.8.0_171
Window:set JAVA_HOME=C:\Oracle\Java\jdk1.8.0_171
Set ANT_HOME to:
Linux:setenv ANT_HOME $MW_HOME/oracle_common/modules/thirdparty/org.apache.ant/1.9.8.0.0/apache-ant-1.9.8
Window:set ANT_HOME=%MW_HOME%\oracle_common\modules\thirdparty\org.apache.ant\1.9.8.0.0\apache-ant-1.9.8
-
Set the values for wls.home and oim.home in ant.properties.
For example:
wls.home =.../middleware/wlserver oim.home =..../middleware/Oracle_IDM1/server
In addition, set the path for mw.home in the ant.properties file. Also, uncomment the following:
#login.config=${oim.home}/config/authwl.conf
17.7 Migrating Plug-ins
The Deployment Manager supports migrating plug-ins from one deployement of Oracle Identity Manager to another.

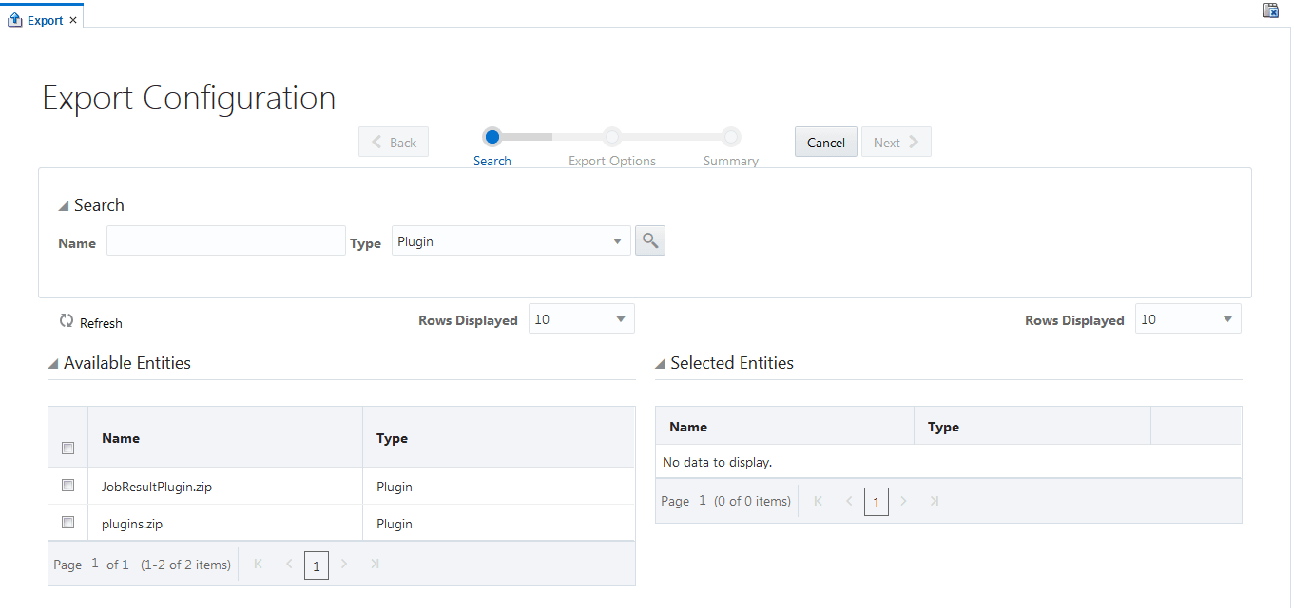

For example, the event handlers can be implemented in a test environment, and then migrated to the production environment by using the Deployment Manager. Figure 17-2 shows exporting plug-ins via the Deployment Manager:
See Also:
Migrating Incrementally Using the Deployment Manager in Administering Oracle Identity Governance for information about the Deployment Manager
